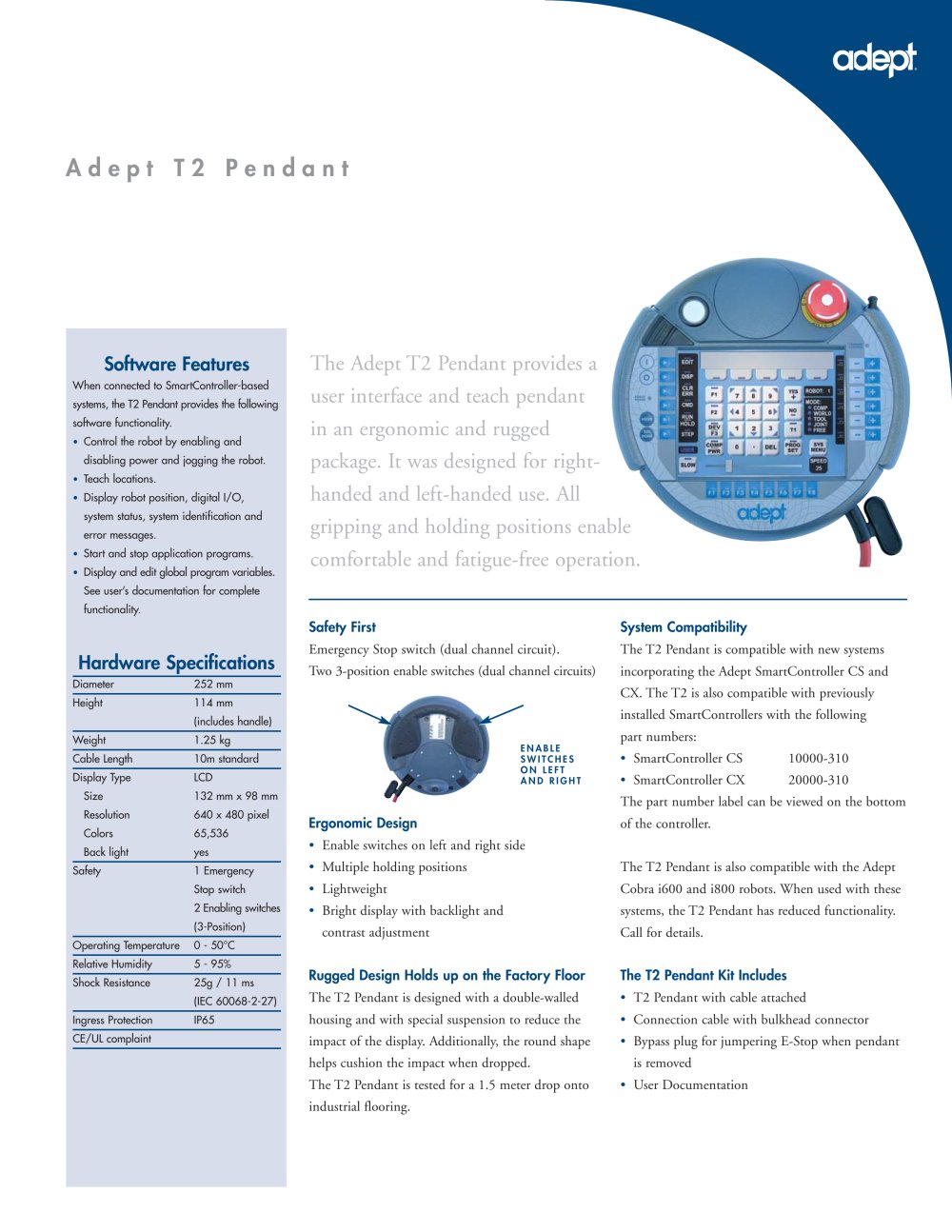

Adept T2 Pendant

Software Features

The Adept T2 Pendant provides auser interface and teach pendant in an ergonomic and rugged package. It was designed for right- handed and left-handed use. All gripping and holding positions enable comfortable and fatigue-free operation.

When connected to SmartController-based systems, the T2 Pendant provides the following software functionality. • Control the robot by enabling and disabling power and jogging the robot. • Teach locations. • Display robot position, digital I/O, system status, system identification and error messages. • Start and stop application programs. • Display and edit global program variables. See user’s documentation for complete functionality. System Compatibility The T2 Pendant is compatible with new systemsincorporating the Adept SmartController CS andCX. The T2 is also compatible with previouslyinstalled SmartControllers with the following part numbers: Safety First Emergency Stop switch (dual channel circuit).Two 3-position enable switches (dual channel circuits)

Hardware Specifications

Diameter252 mm Height 114 mm(includes handle) Weight1.25 kg ENABLE SWITCHES ON LEFT AND RIGHT Cable Length10m standard • SmartController CS10000-310
Display TypeLCDSize132 mm x 98 mm Resolution640 x 480 pixel Colors65,536 Back lightyes • SmartController CX20000-310The part number label can be viewed on the bottomof the controller.The T2 Pendant is also compatible with the AdeptCobra i600 and i800 robots. When used with thesesystems, the T2 Pendant has reduced functionality.Call for details. Ergonomic Design • Enable switches on left and right side
Safety1 Emergency Stop switch 2 Enabling switches (3-Position) • Multiple holding positions • Lightweight • Bright display with backlight and contrast adjustment
Operating Temperature0 - 50°C Relative Humidity5 - 95% Shock Resistance25g / 11 ms (IEC 60068-2-27) Rugged Design Holds up on the Factory Floor The T2 Pendant Kit Includes The T2 Pendant is designed with a double-walledhousing and with special suspension to reduce theimpact of the display. Additionally, the round shapehelps cushion the impact when dropped.The T2 Pendant is tested for a 1.5 meter drop onto industrial flooring. • T2 Pendant with cable attached
Ingress ProtectionIP65 • Connection cable with bulkhead connector
CE/UL complaint • Bypass plug for jumpering E-Stop when pendant is removed • User Documentation
