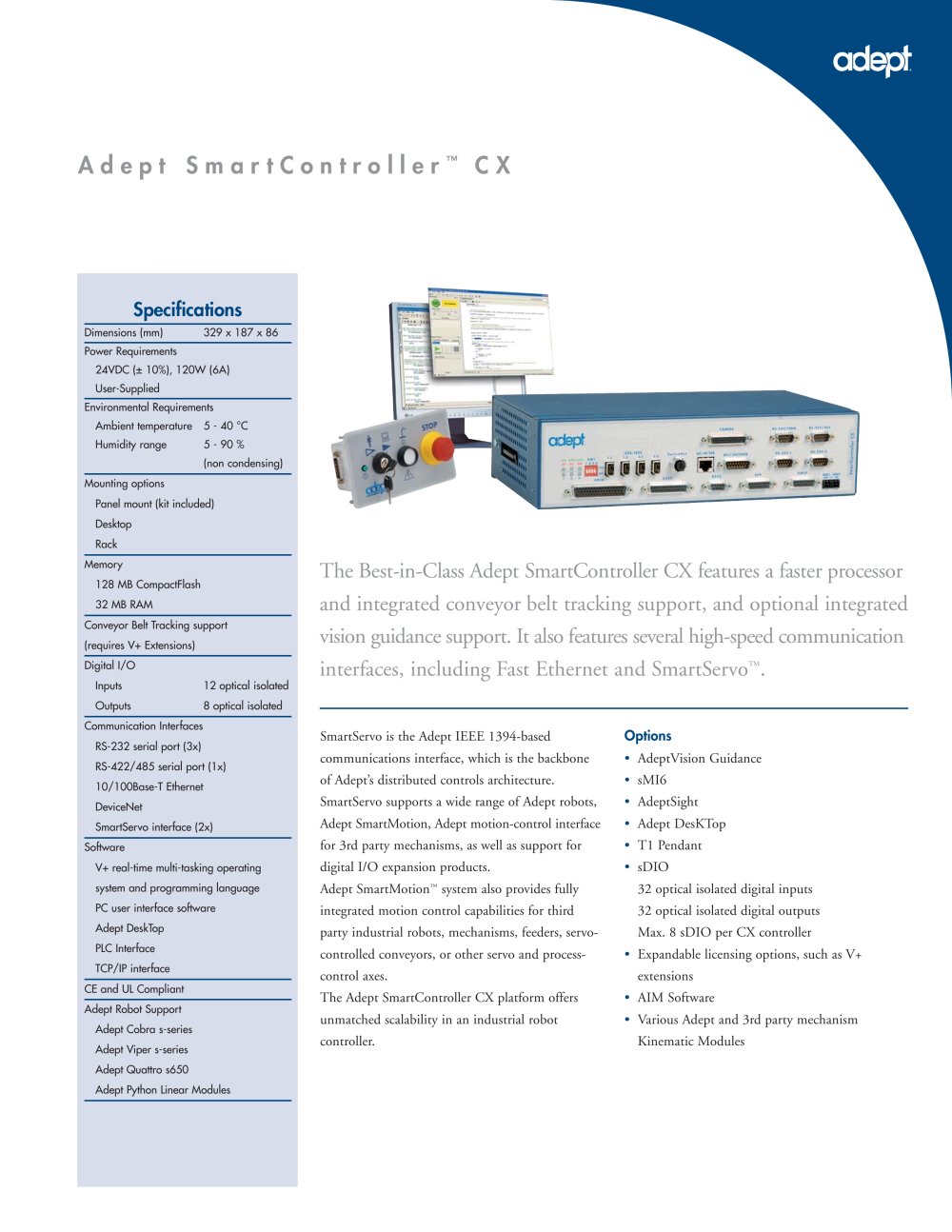

Dimensions (mm)329 x 187 x 86 Power Requirements24VDC (ٱ10%), 120W (6A)User-Supplied Environmental RequirementsAmbient temperature5 - 40 CHumidity range5 - 90 %(non condensing) Mounting optionsPanel mount (kit included) DesktopRack Memory128 MB CompactFlash 32 MB RAM Options > Conveyor Belt Tracking support (requires V+ Extensions) Digital I/OInputs12 optical isolated Outputs8 optical isolated Й Communication InterfacesRS-232 serial port (3x) RS-422/485 serial port (1x)10/100Base-T EthernetDeviceNet SmartServo interface (2x) SmartServo is the Adept IEEE 1394-based communications interface, which is the backboneof Adepts distributed controls architecture.SmartServo supports a wide range of Adept robots,Adept SmartMotion, Adept motion-control interface for 3rd party mechanisms, as well as support fordigital I/O expansion products.Adept SmartMotion ҕ AdeptVision Guidance sMI6 Օ AdeptSight Adept DesKTop > SoftwareV+ real-time multi-tasking operating system and programming languagePC user interface softwareAdept DeskTop PLC Interface TCP/IP interface Օ T1 Pendant sDIO32 optical isolated digital inputs 32 optical isolated digital outputsMax. 8 sDIO per CX controller > ՙ system also provides fullyintegrated motion control capabilities for third party industrial robots, mechanisms, feeders, servo- controlled conveyors, or other servo and process-control axes. The Adept SmartController CX platform offersunmatched scalability in an industrial robotcontroller. Expandable licensing options, such as V+extensions > CE and UL Compliant Օ AIM Software > Adept Robot SupportAdept Cobra s-series Adept Viper s-seriesAdept Quattro s650 Various Adept and 3rd party mechanism Kinematic Modules > Adept Python Linear Modules size="-2">

Dimensions Adept SmartController CX (mm) 18732986 1305615289 Dimensions Front Panel (mm) Downloads: Download CAD files from www.adept.com using the followingdownload IDْs:SmartController CX 136358 Adept Technology, Inc.3011 Triad Drive, Livermore, CA 94551Tel: 925-245-3400 Fax: 925-960-0452 Email: [email protected] Front Panel135905 > Specifications subject to change without notice.2007 Adept Technology, Inc. All rights reserved. Adept and the Adept logo areregistered trademarks, and the Adept Controller is a trademark of Adept Technology, Inc.All other trademarks are the property of...
