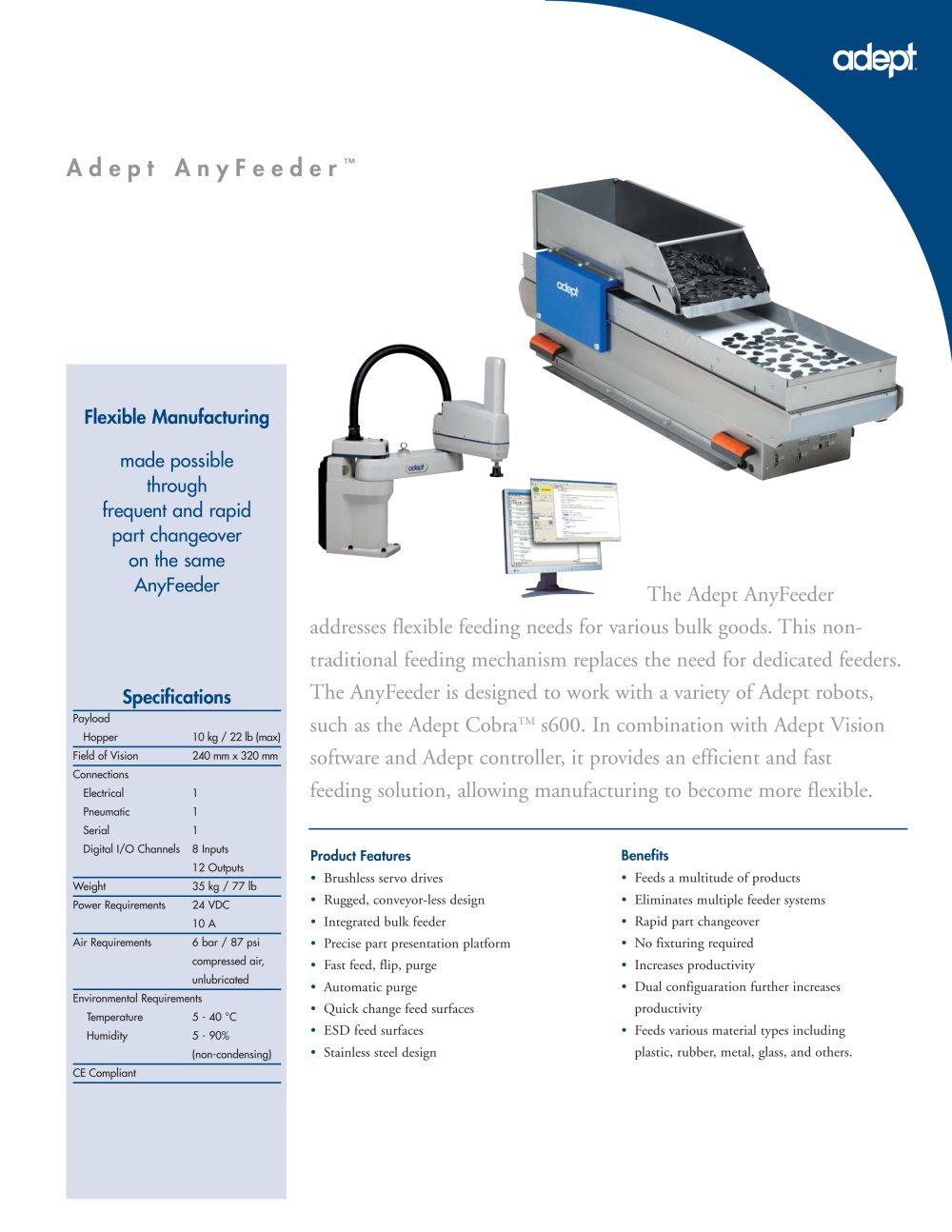

Flexible Manufacturing
made possible through frequent and rapid part changeover on the same AnyFeeder
The Adept AnyFeeder addresses flexible feeding needs for various bulk goods. This non-traditional feeding mechanism replaces the need for dedicated industrial feeders. The AnyFeeder is designed to work with a variety of Adept industrial robots, such as the Adept CobraTM s600. In combination with Adept Vision
software and Adept controller, it provides an efficient and fast feeding solution, allowing manufacturing to become more flexible.
Specifications
Payload
10 kg / 22 lb (max)
Field of Vision
240 mm x 320 mm
Connections
Electrical
1
Pneumatic
1
Serial
1
Digital I/O Channels
8 Inputs
12 Outputs
Weight
35 kg / 77 lb
Power Requirements
24 VDC
10 A
Air Requirements
6 bar / 87 psi
unlubricated
Environmental Requirements
Temperature
5 - 40 °C
Humidity
5 - 90%
(non-condensing)
CE Compliant
Product Features
• Rugged, conveyor-less design
• Integrated bulk feeder
• Precise part presentation platform
• Fast feed, flip, purge
• Automatic purge
• Quick change feed surfaces
• ESD feed surfaces
• Stainless steel design
Benefits
• Feeds a multitude of products
• Eliminates multiple feeder systems
• Rapid part changeover
• No fixturing required
• Increases productivity
• Dual configuaration further increases productivity
• Feeds various material types including plastic, rubber, metal, glass, and others.
