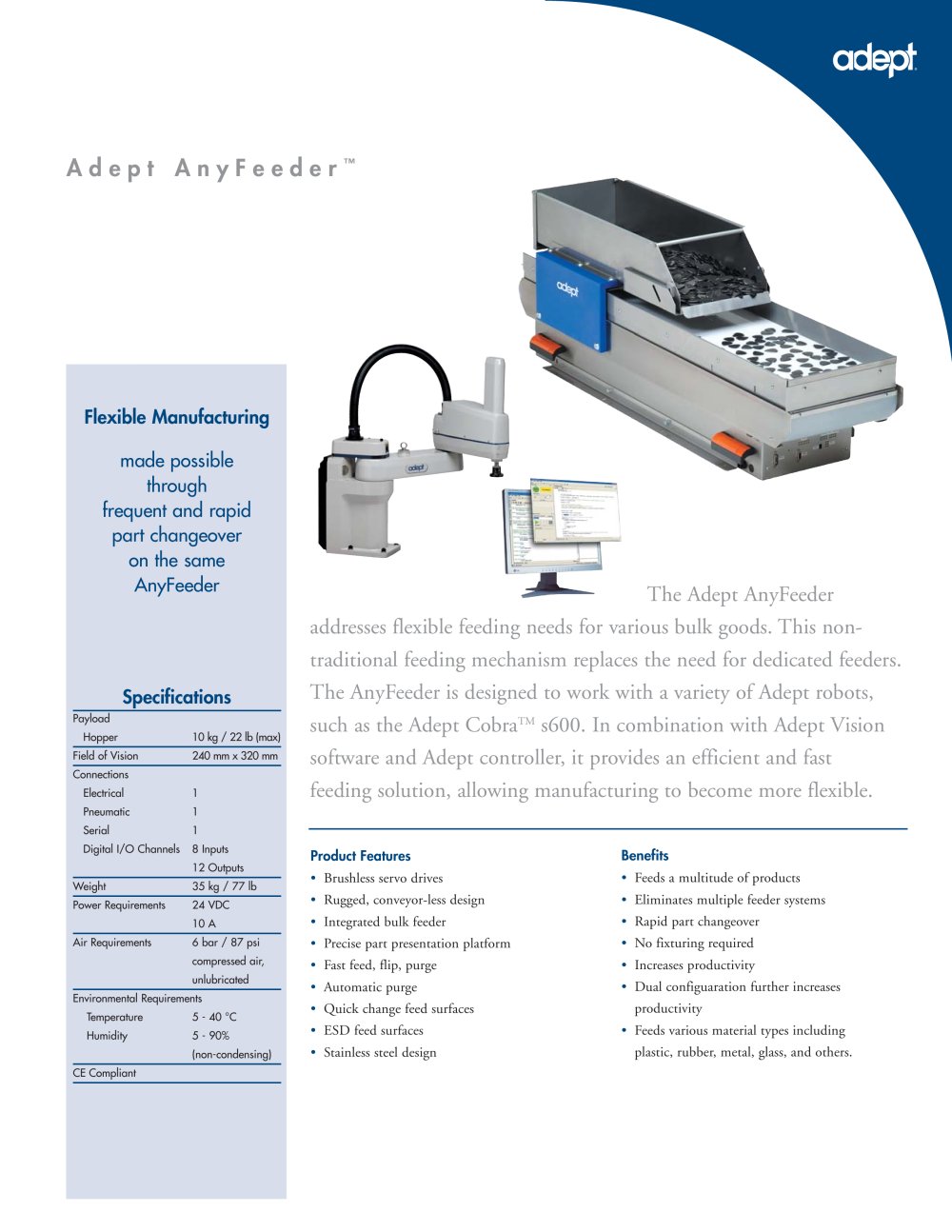

Catalogue - Adept AnyFeeder SX240 - ADEPT TECHNOLOGY

See other catalogues for ADEPT TECHNOLOGY

Controller, Robot, Motion controller, SCARA robot, Vision system

Text version of the page

Flexible Manufacturing

made possible through frequent and rapid part changeover on the same AnyFeeder

The Adept AnyFeeder addresses flexible feeding needs for various bulk goods. This non-traditional feeding mechanism replaces the need for dedicated feeders. The AnyFeeder is designed to work with a variety of Adept robots, such as the Adept Cobra^TM s600. In combination with Adept Vision

software and Adept controller, it provides an efficient and fast feeding solution, allowing manufacturing to become more flexible.

Specifications


	Payload
	Hopper	10 kg / 22 lb (max)
	Field of Vision	240 mm x 320 mm
	Connections
	Electrical	1
	Pneumatic	1
	Serial	1
	Digital I/O Channels	8 Inputs
		12 Outputs
	Weight	35 kg / 77 lb
	Power Requirements	24 VDC
		10 A
	Air Requirements	6 bar / 87 psi
		compressed air,
		unlubricated
	Environmental Requirements
	Temperature	5 - 40 °C
	Humidity	5 - 90%
		(non-condensing)
	CE Compliant

Product Features

• Brushless servo drives

• Rugged, conveyor-less design

• Integrated bulk feeder

• Precise part presentation platform

• Fast feed, flip, purge

• Automatic purge

• Quick change feed surfaces

• ESD feed surfaces

• Stainless steel design

Benefits

• Feeds a multitude of products

• Eliminates multiple feeder systems

• Rapid part changeover

• No fixturing required

• Increases productivity

• Dual configuaration further increases productivity

• Feeds various material types including plastic, rubber, metal, glass, and others.
