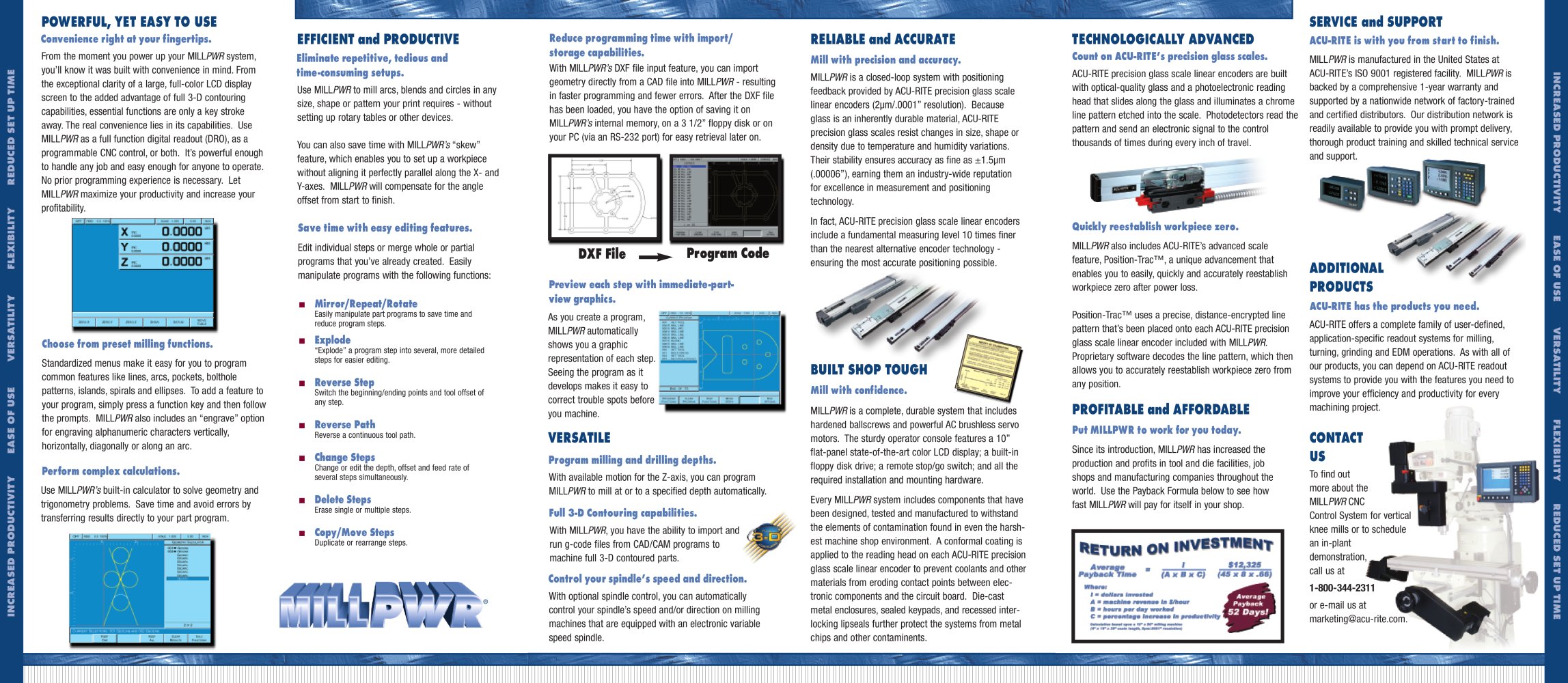

MILLPWR CNC Control System - ACU-RITE - #1

SERVICE and SUPPORT

ACU-RITE is with you from start to finish.

MILLPWR is manufactured in the United States at ACU-RITE's ISO 9001 registered facility. MILLPWR is backed by a comprehensive 1-year warranty and supported by a nationwide network of factory-trained and certified distributors. Our distribution network is readily available to provide you with prompt delivery, thorough product training and skilled technical service and support.

POWERFUL, YET EASY TO USE

Convenience right at your fingertips.

From the moment you power up your MILLPWR system, you'll know it was built with convenience in mind. From the exceptional clarity of a large, full-color LCD display screen to the added advantage of full 3-D contouring capabilities, essential functions are only a key stroke away. The real convenience lies in its capabilities. Use MILLPWR as a full function digital readout (DRO), as a programmable CNC control, or both. It's powerful enough to handle any job and easy enough for anyone to operate. No prior programming experience is necessary. Let MILLPWR maximize your productivity and increase your profitability.

EFFICIENT and PRODUCTIVE

Eliminate repetitive, tedious and time-consuming setups.

Use MILLPWRto mill arcs, blends and circles in any size, shape or pattern your print requires - without setting up rotary tables or other devices.

You can also save time with MILLPWRSs "skew" feature, which enables you to set up a workpiece without aligning it perfectly parallel along the X- and Y-axes. MILLPWRwill compensate for the angle offset from start to finish.

Save time with easy editing features.

Edit individual steps or merge whole or partial programs that you've already created. Easily manipulate programs with the following functions:

■ Mirror/Repeat/Rotate

Easily manipulate part programs to save time and reduce program steps.

■ Explode

"Explode" a program step into several, more detailed steps for easier editing.

■ Reverse Step

Switch the beginning/ending points and tool offset of any step.

■ Reverse Path

Reverse a continuous tool path.

RELIABLE and ACCURATE

Mill with precision and accuracy.

MILLPWR is a closed-loop system with positioning feedback provided by ACU-RITE precision glass scale linear encoders (2|jm/.0001" resolution). Because glass is an inherently durable material, ACU-RITE precision glass scales resist changes in size, shape or density due to temperature and humidity variations. Their stability ensures accuracy as fine as ±1.5jm (.00006"), earning them an industry-wide reputation for excellence in measurement and positioning technology.

In fact, ACU-RITE precision glass scale linear encoders include a fundamental measuring level 10 times finer than the nearest alternative encoder technology -ensuring the most accurate positioning possible.

Reduce programming time with import/ storage capabilities.

With MILLPWfi's DXF file input feature, you can import geometry directly from a CAD file into MILLPWR - resulting in faster programming and fewer errors. After the DXF file has been loaded, you have the option of saving it on MILLPWfi's internal memory, on a 3 1/2" floppy disk or on your PC (via an RS-232 port) for easy retrieval later on.

TECHNOLOGICALLY ADVANCED

Count on ACU-RITE's precision glass scales.

ACU-RITE precision glass scale linear encoders are built with optical-quality glass and a photoelectronic reading head that slides along the glass and illuminates a chrome line pattern etched into the scale. Photodetectors read the pattern and send an electronic signal to the control thousands of times during every inch of travel.

z

n » m

(A

m O

0. 3

111

(A

Û

111 u

3 Û 111

0 O C n H

H

H

Quickly reestablish workpiece zero.

MILLPW/? also includes ACU-RITE's advanced scale feature, Position-Trac™, a unique advancement that enables you to easily, quickly and accurately reestablish workpiece zero after power loss.

Position-Trac™ uses a precise, distance-encrypted line pattern that's been placed onto each ACU-RITE precision glass scale linear encoder included with MILLPW/?. Proprietary software decodes the line pattern, which then allows you to accurately reestablish workpiece zero from any position.

PROFITABLE and AFFORDABLE

Put MILLPWR to work for you today.

Since its introduction, MILLPWR has increased the production and profits in tool and die facilities, job shops and manufacturing companies throughout the world. Use the Payback Formula below to see how fast MILLPWR will pay for itself in your shop.

s

111

m

(A

m

Program Code

DXF File

ADDITIONAL PRODUCTS

ACU-RITE has the products you need.

ACU-RITE offers a complete family of user-defined, application-specific readout systems for milling, turning, grinding and EDM operations. As with all of our products, you can depend on ACU-RITE readout systems to provide you with the features you need to improve your efficiency and productivity for every machining project.

CONTACT US

To find out more about the MILLPWR CNC Control System for vertical knee mills or to schedule an in-plant demonstration, call us at

1-800-344-2311

or e-mail us at marketing@acu-rite.com.

0

Preview each step with immediate-part-view graphics.

As you create a program, MILLPW/? automatically shows you a graphic representation of each step. Seeing the program as it develops makes it easy to correct trouble spots before you machine.

VERSATILE

Program milling and drilling depths.

With available motion for the Z-axis, you can program MILLPWR to mill at or to a specified depth automatically.

Full 3-D Contouring capabilities.

With MILLPW/?, you have the ability to import and run g-code files from CAD/CAM programs to machine full 3-D contoured parts.

Control your spindle's speed and direction.

With optional spindle control, you can automatically control your spindle's speed and/or direction on milling machines that are equipped with an electronic variable speed spindle.

C

(A

m

I

M

ui >

< m »

(A

Choose from preset milling functions.

Standardized menus make it easy for you to program common features like lines, arcs, pockets, bolthole patterns, islands, spirals and ellipses. To add a feature to your program, simply press a function key and then follow the prompts. MILLPWR also includes an "engrave" option for engraving alphanumeric characters vertically, horizontally, diagonally or along an arc.

Perform complex calculations.

Use MILLPWfi's built-in calculator to solve geometry and trigonometry problems. Save time and avoid errors by transferring results directly to your part program.

BUILT SHOP TOUGH

Mill with confidence.

MILLPWR is a complete, durable system that includes hardened ballscrews and powerful AC brushless servo motors. The sturdy operator console features a 10" flat-panel state-of-the-art color LCD display; a built-in floppy disk drive; a remote stop/go switch; and all the required installation and mounting hardware.

Every MILLPWR system includes components that have been designed, tested and manufactured to withstand the elements of contamination found in even the harsh­est machine shop environment. A conformal coating is applied to the reading head on each ACU-RITE precision glass scale linear encoder to prevent coolants and other materials from eroding contact points between elec­tronic components and the circuit board. Die-cast metal enclosures, sealed keypads, and recessed inter­locking lipseals further protect the systems from metal chips and other contaminents.

ui

M 3

0

vi

M

< ui

m H H

Change Steps

Change or edit the depth, offset and feed rate of several steps simultaneously.

Delete Steps

Erase single or multiple steps.

H

H U 3 Û

0

I

m O C n m O

■ Copy/Move Steps

Duplicate or rearrange steps.

(A

m

H C

Q

ui

IA

< Ul

U

Z

H

i

m

®
