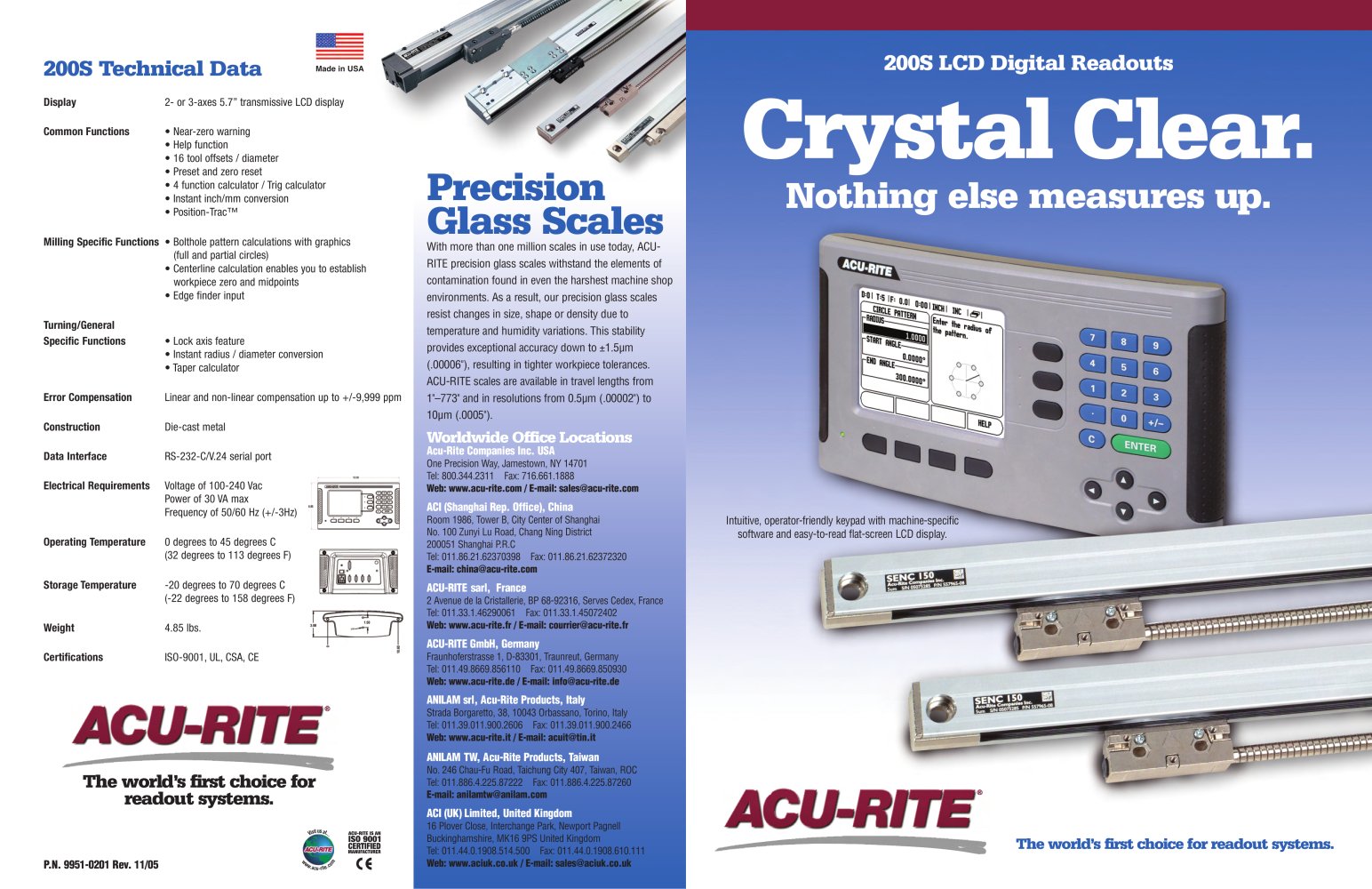

200S Technical Data

Made in USA

200S LCD Digital Readouts

Display 2- or 3-axes 5.7”transmissive LCDdisplay Common Functions Milling Specific Functions • Near-zero warning• Help function• 16 tool offsets / diameter • Preset and zero reset • 4 function calculator / Trig calculator • Instant inch/mm conversion • Position-Trac™ • Bolthole pattern calculations with graphics(full and partial circles)• Centerline calculation enables you to establishworkpiece zero and midpoints• Edge finder input Turning/General Specific Functions

200S LCD Readout for Machine Tool Applications - 14082 Precision Glass Scales CrystalClear.

Nothing else measures up.

• Lock axis feature• Instant radius / diameter conversion• Taper calculator With more than one million scales in use today, ACU-RITE precision glass scales withstand the elements of contamination found in even the harshest machine shop environments. As a result, our precision glass scales resist changes in size, shape or density due to temperature and humidity variations. This stability provides exceptional accuracy down to ±1.5µm (.00006"), resulting in tighter workpiece tolerances. ACU-RITE scales are available in travel lengths from 1"–773" and in resolutions from 0.5µm (.00002") to 10µm (.0005"). Error Compensation Linear and non-linear compensation up to +/-9,999 ppm Construction Die-cast metal Data Interface RS-232-C/V.24 serial port Electrical Requirements Voltage of 100-240 VacPower of 30 VA maxFrequency of 50/60 Hz (+/-3Hz) Operating Temperature 0 degrees to 45 degrees C (32 degrees to 113 degrees F)
