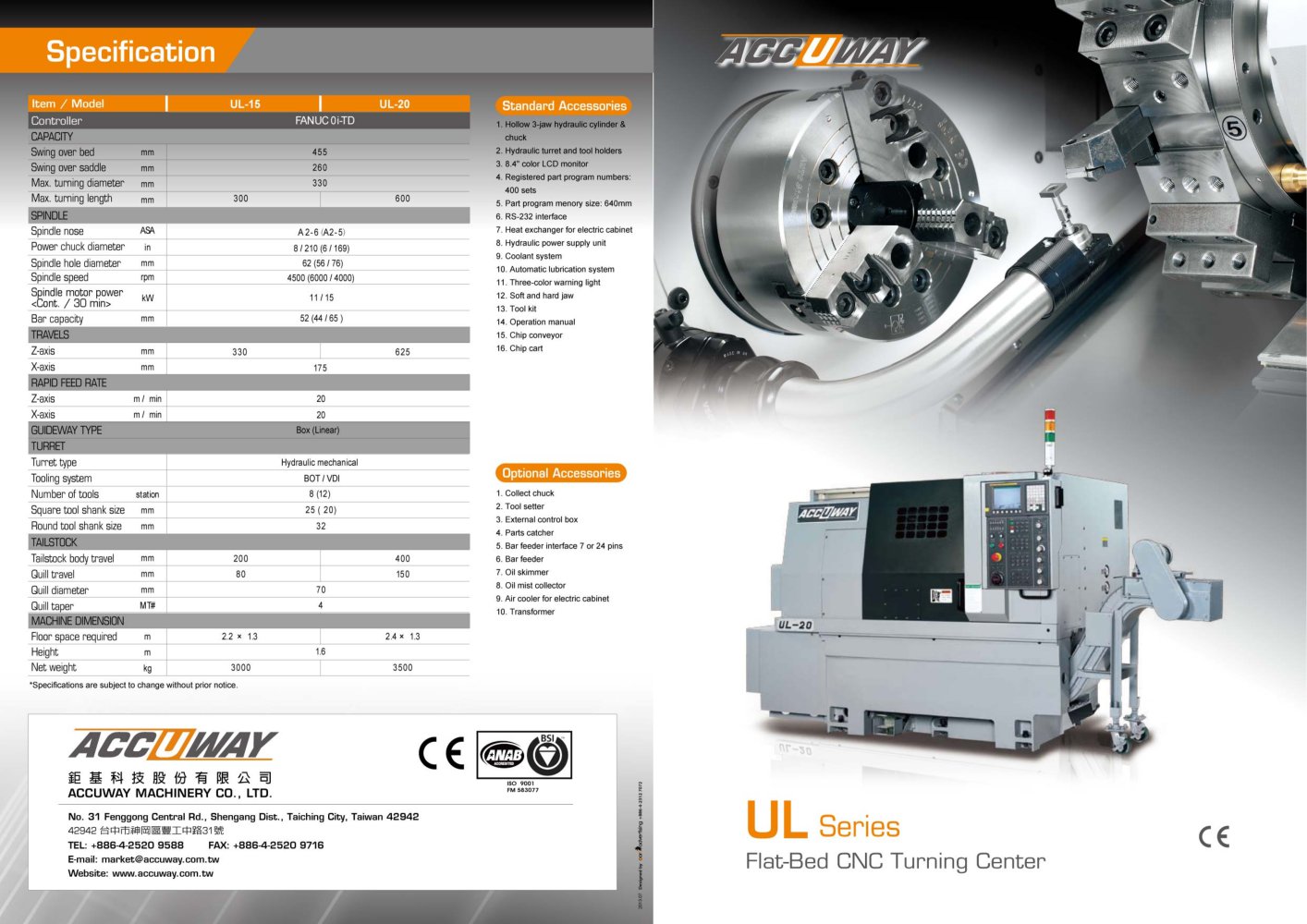

Catalogue - UL series - Accuway Machinery

Specificationsn

Item / Machine type

Controller Capacity

UL-15

UL-20

FANUC Oi-TC

Standard Accessories

1. Hollow 3-jaw hydraulic cylinder & chuck [Strong]

2. Hydraulic turret and tool holders

3. FANUC Oi-TC controller

4. 8.4" Color LCD monitor

5. Registered part program numbers: 400 sets

6. Part program memory size: 640 m

7. RS-232 interface

8. Heat exchange for electric cabinet

9. Hydraulic power supply unit

10. High pressure coolant system

11. Full-enclosed X/Z axis way cover

12. Automatic lubrication system

13. Three-color warning light

14. Soft and hard jaw

15. Tool kit

16. Operation manual


Swing over bed	in/mm	17.9 / 455		17.9 / 455
Swing over saddle	in/mm	10.2 / 260		10.2 / 260
Max cutting diameter	in/mm	13 / 330		13 / 330
Max cutting length	in/mm	11.8 / 300		23.6 / 600
Spindle
Spindle nose	ASA	A 2-5	A 2-6	A 2-6
Power chuck diameter	in/mm	6.7 / 169	8.3 / 210	8.3 / 210
Spindle hole diameter	in/mm	2.2 / 56	2.4 / 62	2.4 / 62
Spindle speed	rpm	6000	4500	4500
Spindle drive power < Cont. / 30 min >	kW	11 / 15		11 / 15
Bar capacity	in/mm	1.7 / 45	2 / 52	2 / 52
Travels
Z axis	in/mm	13 / 330		24.6 / 625
X axis	in/mm	6.9 / 175		6.9 / 175
Rapid Feed Rate
Z axis	ipm (m/min)	787 (20)		787 (20)
X axis	ipm (m/min)	787 (20)		787 (20)
Turret
Number of tools	station	8 (12)		8 (12)
Square tool shank size	in/mm	1 / 25 (0.8 / 20)		1 / 25 (0.8 / 20)
Round tool shank size	in/mm	1.3 / 32		1.3 / 32
Tailstock
Tailstock body travel	in/mm	79 / 200		15.7 / 400
Quill travel	in/mm	31 / 80		5.9 / 150
Quill diameter	in/mm	2.8 / 70		2.8 / 70
Quill taper	MT #		4	4
Machine Dimensions
Floor space	ft/m	6.4 X 4.2 / 1.9 X 1.3		7.8 X 4.2 / 2.4 X 1.3
Height	ft/m	5.3 / 1.6		5.3 /1 .6
Net weight	lb/kg	6600 / 3000		7700 / 3500
Specification are subject to change without prior notice.

Optional Accessories

1. Hollow 3-jaw hydraulic cylinder & chuck [Howa, kitagawa]

2. Tool setter [Renishaw]

3. External control box

4. Auto door

5. Parts catcher

6. Bar feeder interface 7 or 24 pins

7. Bar feeder

8. Oil skimmer

9. Oil mist collector

10. Air cooler for electric cabinet

11. Transformer

12. Collet chuck

13. Chip conveyor

14. Chip cart

ACCUWAY MACHINERY CO., LTD. f

_ e

Shen-Gang Factory : Tan-Tzu Factory : ^rt

No. 26, Lane 108, Da-Jou Road, Shen-Gang Hsiang, No. 1, Lane 113, An-Ho Road, Tan-Tzu Hsiang, Taichung s

Taichung Hsien, Taiwan 429, R.O.C. Hsien, Taiwan 427, R.O.C. | TEL: +886-4-2520 9588 FAX: +886-4-2520 9716 E-mail: market@accuway.com.tw Website: www.accuway.com.tw

200701
