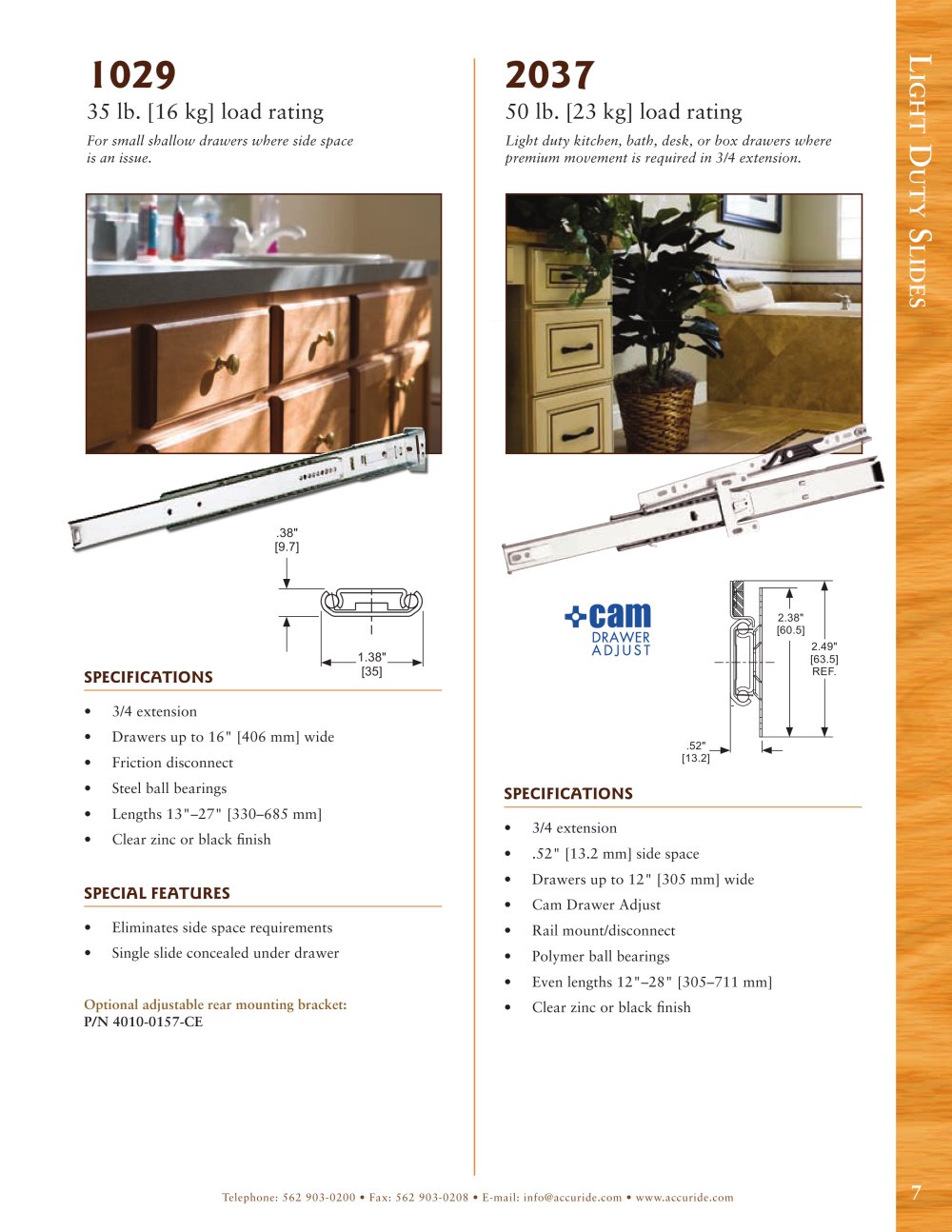

| 1029 35 lb. [16 kg] load rating For small shallow drawers where side space is an issue. | 2037 50 lb. [23 kg] load rating Light duty kitchen, bath, desk, or box drawers where premium movement is required in 3/4 extension. | ||||||||||||||||||||||||||
| o | |||||||||||||||||||||||||||
| Ö | |||||||||||||||||||||||||||
| Ö w | |||||||||||||||||||||||||||
| [35] | |||||||||||||||||||||||||||
| SPECIFICATIONS | |||||||||||||||||||||||||||
| • 3/4 extension • Drawers up to 16" [406 mm] wide • Friction disconnect • Steel ball bearings • Lengths 13"-27" [330-685 mm] • Clear zinc or black finish SPECIAL FEATURES | |||||||||||||||||||||||||||
| .52" _ [13.2] | |||||||||||||||||||||||||||
| SPECIFICATIONS | |||||||||||||||||||||||||||
| 3/4 extension .52" [13.2 mm] side space Drawers up to 12" [305 mm] wide Cam Drawer Adjust Rail mount/disconnect Polymer ball bearings Evenlengths 12"-28" [305-711 mm] Clear zinc or black finish | |||||||||||||||||||||||||||
| Eliminates side space requirements Single slide concealed under drawer | |||||||||||||||||||||||||||
| Optional adjustable rear mounting bracket: P/N 4010-0157-CE | |||||||||||||||||||||||||||
