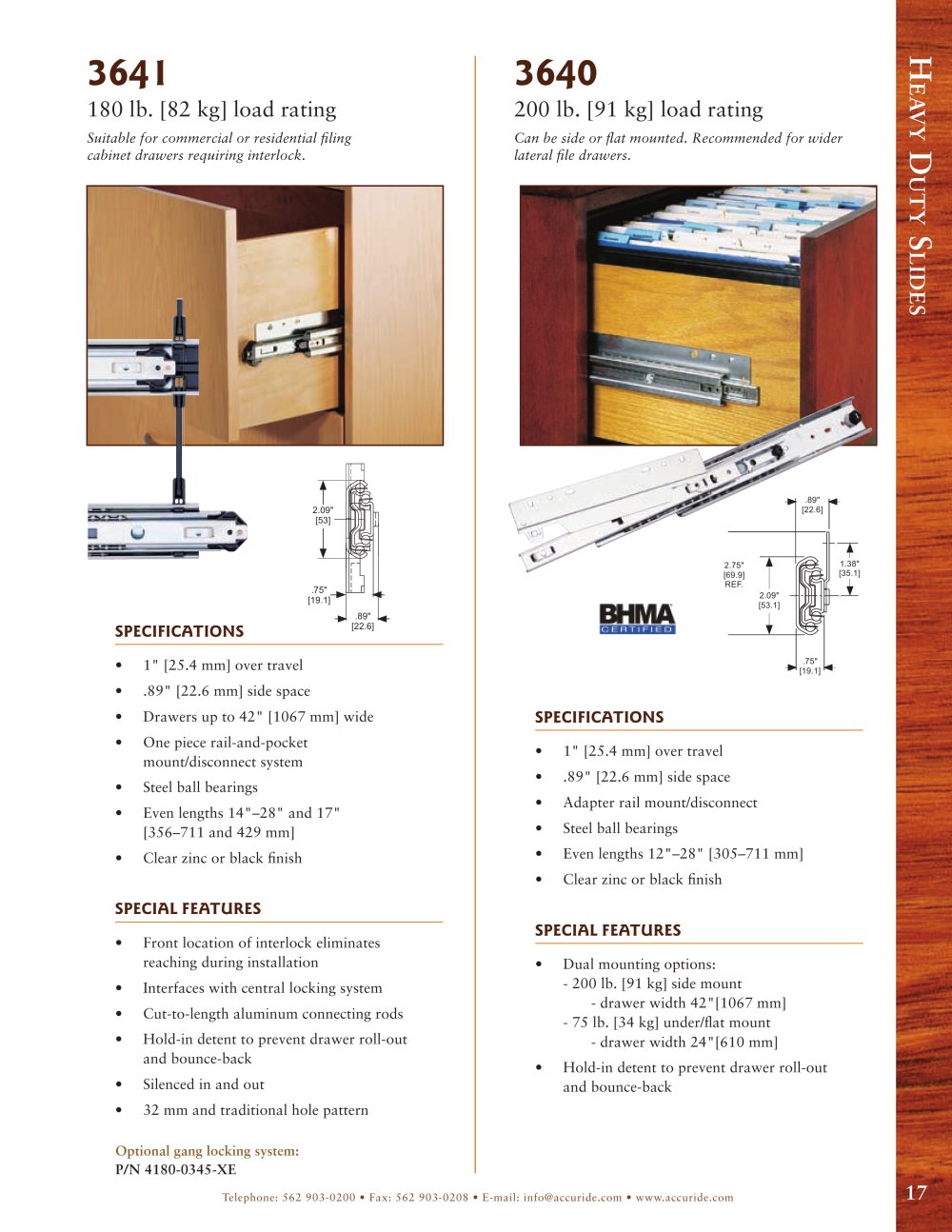

| 3641 180 lb. [82 kg] loadrating Suitable for commercial or residential filing cabinet drawers requiring interlock. | 3640 | ||||||||||||||||||||||||||||||
| Can be side or flat mounted. Recommended for wider lateral file drawers. | |||||||||||||||||||||||||||||||
| Ö | |||||||||||||||||||||||||||||||
| .89- i [22.6] | |||||||||||||||||||||||||||||||
| SPECIFICATIONS | |||||||||||||||||||||||||||||||
| .75" [19.1]' | |||||||||||||||||||||||||||||||
| 1" [25.4 mm] over travel .89" [22.6 mm] side space Drawers up to 42" [1067 mm] wide One piece rail-and-pocket mount/disconnect system Steel ball bearings Even lengths 14"-28" and 17" [356-711 and 429 mm] Clear zinc or black finish | |||||||||||||||||||||||||||||||
| SPECIFICATIONS | |||||||||||||||||||||||||||||||
| 1" [25.4 mm] over travel .89" [22.6 mm] side space Adapter rail mount/disconnect Steel ball bearings Evenlengths 12"-28" [305-711 mm] Clear zinc or black finish | |||||||||||||||||||||||||||||||
| SPECIAL FEATURES | |||||||||||||||||||||||||||||||
| SPECIAL FEATURES | |||||||||||||||||||||||||||||||
| Front location of interlock eliminates reaching during installation Interfaces with central locking system Cut-to-length aluminum connecting rods Hold-in detent to prevent drawer roll-out and bounce-back Silenced in and out 32 mm and traditional hole pattern | |||||||||||||||||||||||||||||||
| Dual mounting options: - 200 lb. [91 kg] side mount - drawer width 42"[1067 mm] - 75 lb. [34 kg] under/flat mount - drawer width 24"[610 mm] Hold-in detent to prevent drawer roll-out and bounce-back | |||||||||||||||||||||||||||||||
| Optional gang locking system: P/N 4180-0345-XE | |||||||||||||||||||||||||||||||
