GENERAL INFORMATIONENGINEERING

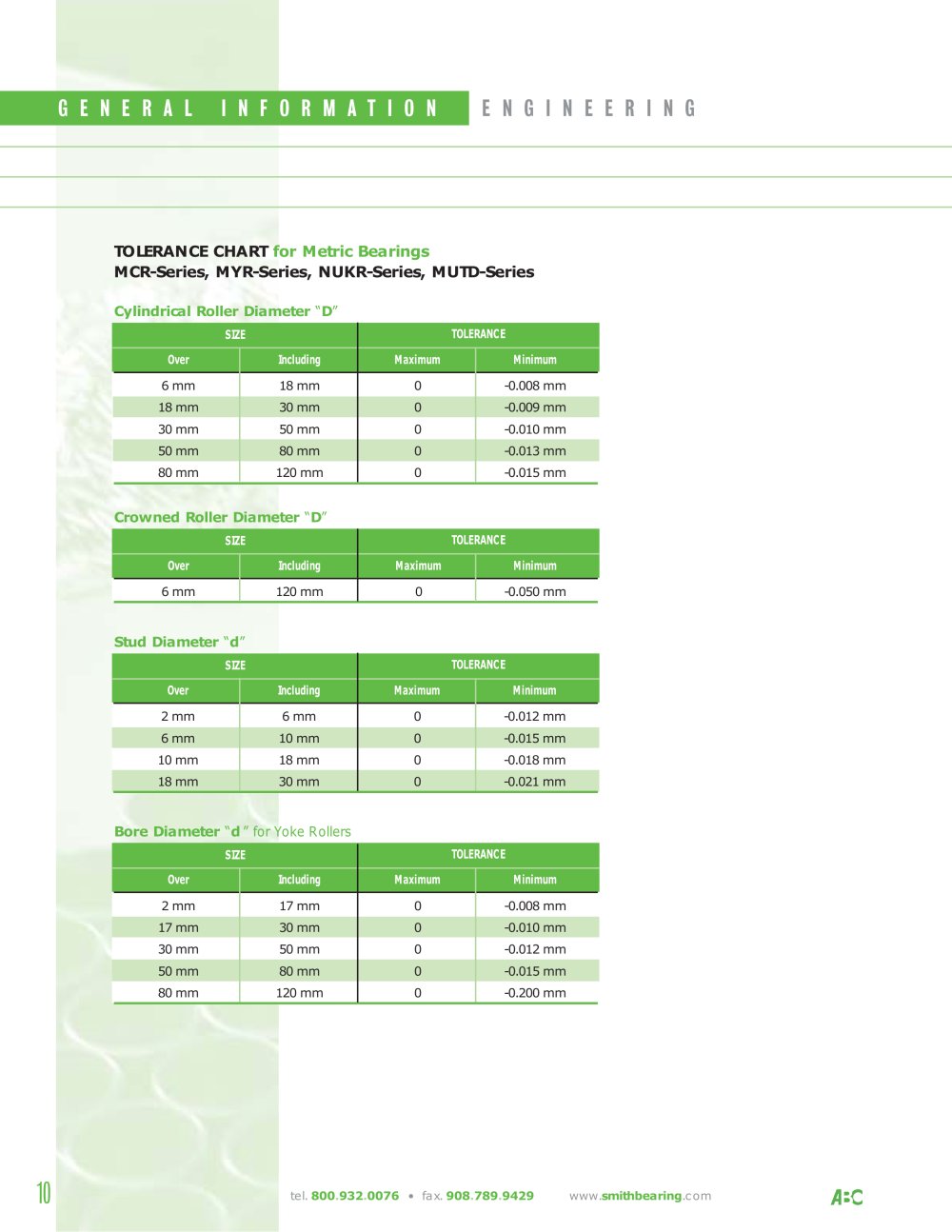

TOLERANCE CHART for Metric BearingsMCR-Series, MYR-Series, NUKR-Series, MUTD-Series

Cylindrical Roller Diameter “ D ”
TOLERANCESIZE Over IncludingMaximumMinimum 6 mm18 mm 0-0.008 mm18 mm30 mm0-0.009 mm 30 mm50 mm0-0.010 mm 50 mm80 mm0-0.013 mm 80 mm120 mm0-0.015 mm Crowned Roller Diameter “ D ”
TOLERANCESIZE Over IncludingMaximumMinimum 6 mm120 mm0-0.050 mm Stud Diameter “ d ”
TOLERANCESIZE Over IncludingMaximumMinimum 2 mm6 mm 0-0.012 mm6 mm10 mm0-0.015 mm10 mm18 mm0-0.018 mm 18 mm30 mm0-0.021 mm Bore Diameter “ d ” for Yoke Rollers
TOLERANCESIZE Over IncludingMaximumMinimum 2 mm17 mm 0-0.008 mm17 mm30 mm0-0.010 mm 30 mm50 mm0-0.012 mm 50 mm80 mm0-0.015 mm 80 mm120 mm0-0.200 mm
