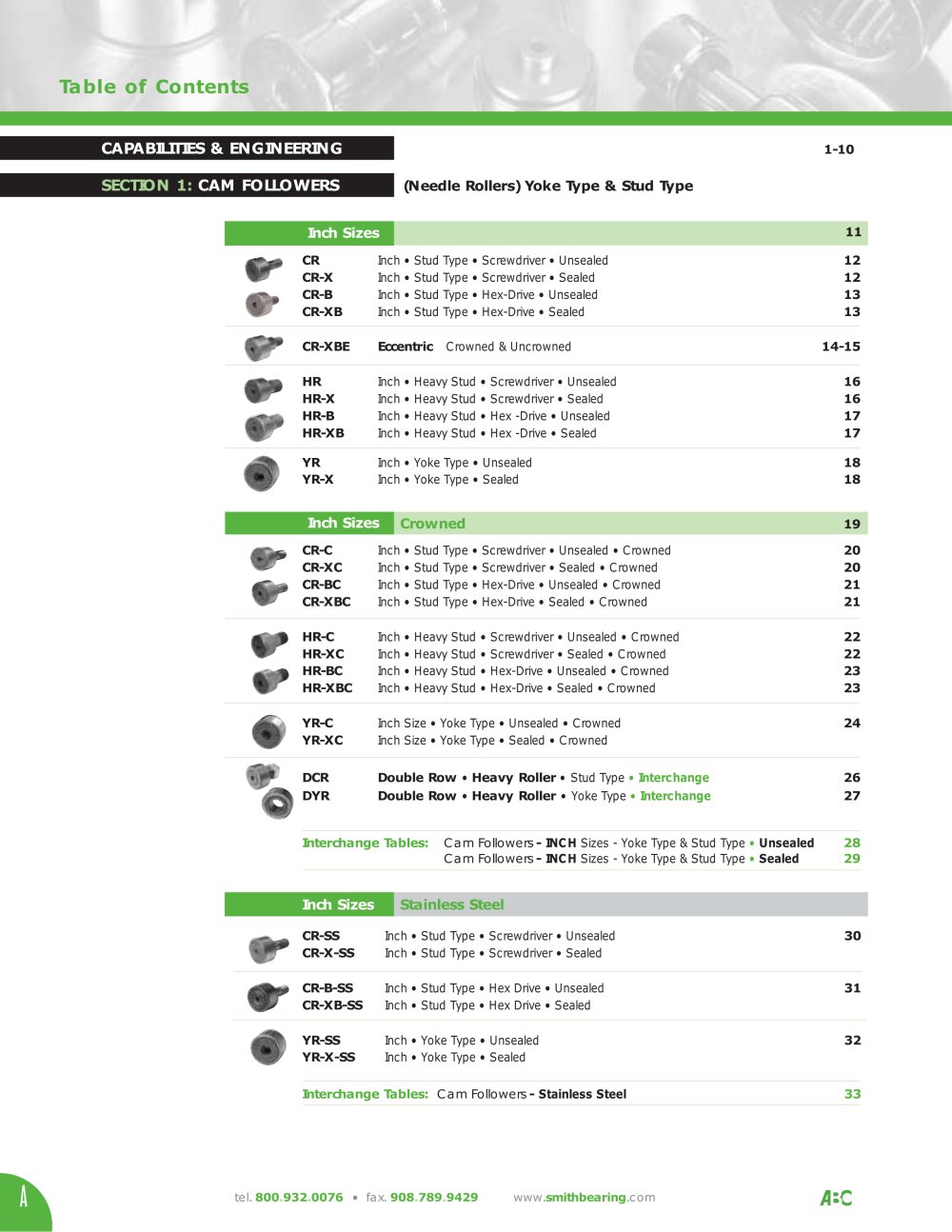

Table of Contents

CAPABILITIES & ENGINEERING

1-10

SECTION 1:CAM FOLLOWERS:

(Needle Rollers) Yoke Type & Stud Type

1

Inch Sizes

11CR Inch ? Stud Type ? Screwdriver ? Unsealed 12CR-X Inch ? Stud Type ? Screwdriver ? Sealed 12CR-B Inch ? Stud Type ? Hex-Drive ? Unsealed 13CR-XB Inch ? Stud Type ? Hex-Drive ? Sealed 13CR-XBEEccentric Crowned & Uncrowned 14-15HR Inch ? Heavy Stud ? Screwdriver ? Unsealed 16HR-X Inch ? Heavy Stud ? Screwdriver ? Sealed 16HR-B Inch ? Heavy Stud ? Hex -Drive ? Unsealed 17HR-XB Inch ? Heavy Stud ? Hex -Drive ? Sealed 17YR Inch ? Yoke Type ? Unsealed 18YR-X Inch ? Yoke Type ? Sealed 18

Inch SizesCrowned

19CR-C Inch ? Stud Type ? Screwdriver ? Unsealed ? Crowned 20CR-XC Inch ? Stud Type ? Screwdriver ? Sealed ? Crowned 20CR-BC Inch ? Stud Type ? Hex-Drive ? Unsealed ? Crowned 21CR-XBC Inch ? Stud Type ? Hex-Drive ? Sealed ? Crowned 21HR-C Inch ? Heavy Stud ? Screwdriver ? Unsealed ? Crowned 22HR-XC Inch ? Heavy Stud ? Screwdriver ? Sealed ? Crowned 22HR-BC Inch ? Heavy Stud ? Hex-Drive ? Unsealed ? Crowned 23HR-XBC Inch ? Heavy Stud ? Hex-Drive ? Sealed ? Crowned 23YR-C Inch Size ? Yoke Type ? Unsealed ? Crowned 24YR-XC Inch Size ? Yoke Type ? Sealed ? Crowned DCRDouble Row ? Heavy Roller ?Stud Type ? Interchange 26DYRDouble Row ? Heavy Roller ?Yoke Type ? Interchange 27Interchange Tables: Cam Followers - INCH Sizes - Yoke Type & Stud Type ? Unsealed 28 Cam Followers - INCH Sizes - Yoke Type & Stud Type ? Sealed 29

Inch Sizes Stainless Steel

CR-SS Inch ? Stud Type ? Screwdriver ? Unsealed 30CR-X-SS Inch ? Stud Type ? Screwdriver ? Sealed CR-B-SS Inch ? Stud Type ? Hex Drive ? Unsealed 31CR-XB-SS Inch ? Stud Type ? Hex Drive ? Sealed YR-SS Inch ? Yoke Type ? Unsealed 32YR-X-SS Inch ? Yoke Type ? Sealed Interchange Tables: Cam Followers - Stainless Steel 33

Complete catalogue - 11616 A

tel. 800.932.0076 fax. 908.789.9429 www. smithbearing .com
