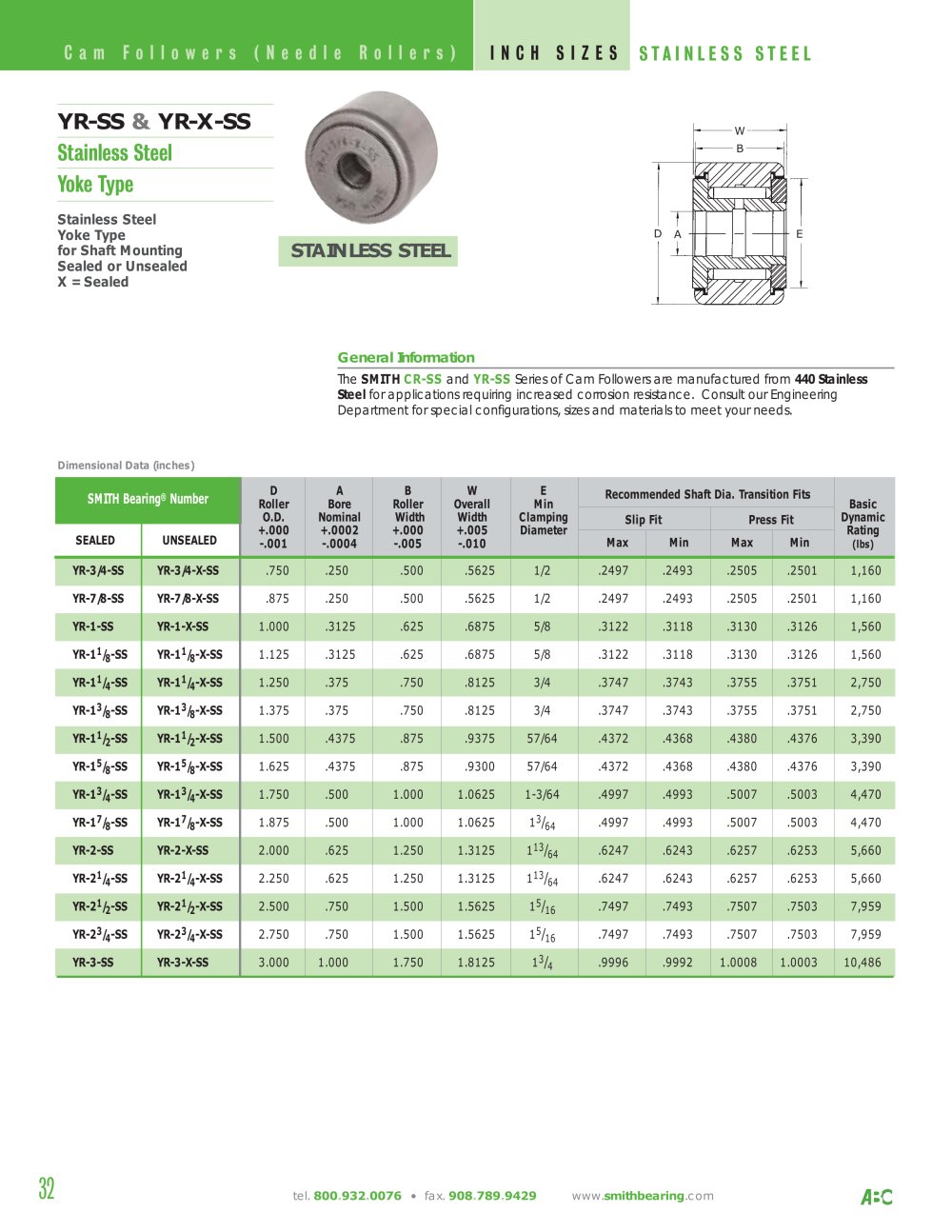

Cam Followers (Needle Rollers)

INCH SIZES STAINLESS STEEL

YR-SS & YR-X-SS

-W--B-

Stainless Steel

Yoke Type

Stainless Steel

Yoke Type

for Shaft Mounting

Sealed or Unsealed X = Sealed

D A

STAINLESS STEEL

General Information_

The SMITH CR-SS and YR-SS Series of Cam Followers are manufactured from 440 Stainless

Steel for applications requiring increased corrosion resistance. Consult our Engineering Department for special configurations, sizes and materials to meet your needs.

Dimensional Data (inches)


SMITH Bearing® Number		D Roller CD. +.000 -.001	A Bore Nominal +.0002 -.0004	B Roller Width +.000 -.005	W Cverai Wicth +.005 -.010	E Min Clamping Diameter	Reccmmended Sheft Diet Trcnsition Fits				Basic Dynamic Rating (lbs)
							Slip Fit		Press Fit
SEALED	UNSEALED						Slip Fit		Press Fit
SEALED	UNSEALED						Mox	Mn	Max	Min
YR-3/4-SS	YR-3/4-X-SS	.750	.250	.500	.5625	1/2	.2497	.2493	.2505	.2501	1,160
YR-7/8-SS	YR-7/8-X-SS	.875	.250	.500	.5625	1/2	.2497	.2493	.2505	.2501	1,160
YR-1-SS	YR-1 -X-SS	1.000	.3125	.625	.6875	5/8	.3122	.3118	.3130	.3126	1,560
YR-l'/₈-SS	YR-1¹/₈-X-SS	1.125	.3125	.625	.6875	5/8	.3122	.3118	.3130	.3126	1,560
YR-1¹/₄-SS	YR-1¹/₄-X-SS	1.250	.375	.750	.8125	3/4	.3747	.3743	.3755	.3751	2,750
YR-1³/₈-SS	YR-1³/₈-X-SS	1.375	.375	.750	.8125	3/4	.3747	.3743	.3755	.3751	2,750
YR-1¹/₂-SS	YR-1¹/₂-X-SS	1.500	.4375	.875	.9375	57/64	.4372	.4368	.4380	.4376	3,390
YR-1⁵/₈-SS	YR-1⁵/₈-X-SS	1.625	.4375	.875	.9300	57/64	.4372	.4368	.4380	.4376	3,390
YR-1³/₄-SS	YR-1³/₄-X-SS	1.750	.500	1.000	1.0625	1-3/64	.4997	.4993	.5007	.5003	4,470
YR-1⁷/₈-SS	YR-1⁷/₈-X-SS	1.875	.500	1.000	1.0625	1³/64	.4997	.4993	.5007	.5003	4,470
YR-2-SS	YR-2-X-SS	2.000	.625	1.250	1.3125	1¹³/64	.6247	.6243	.6257	.6253	5,660
YR-2¹/₄-SS	YR-2¹/₄-X-SS	2.250	.625	1.250	1.3125	1¹³/64	.6247	.6243	.6257	.6253	5,660
YR-2¹/₂-SS	YR-2¹/₂-X-SS	2.500	.750	1.500	1.5625	1⁵/16	.7497	.7493	.7507	.7503	7,959
YR-2³/₄-SS	YR-2³/₄-X-SS	2.750	.750	1.500	1.5625	1⁵/16	.7497	.7493	.7507	.7503	7,959
YR-3-SS	YR-3-X-SS	3.000	1.000	1.750	1.8125	1³/4	.9996	.9992	1.0008	1.0003	10,486

tel. 800.932.0076 fax. 908.789.9429 www.smithbearing.com
