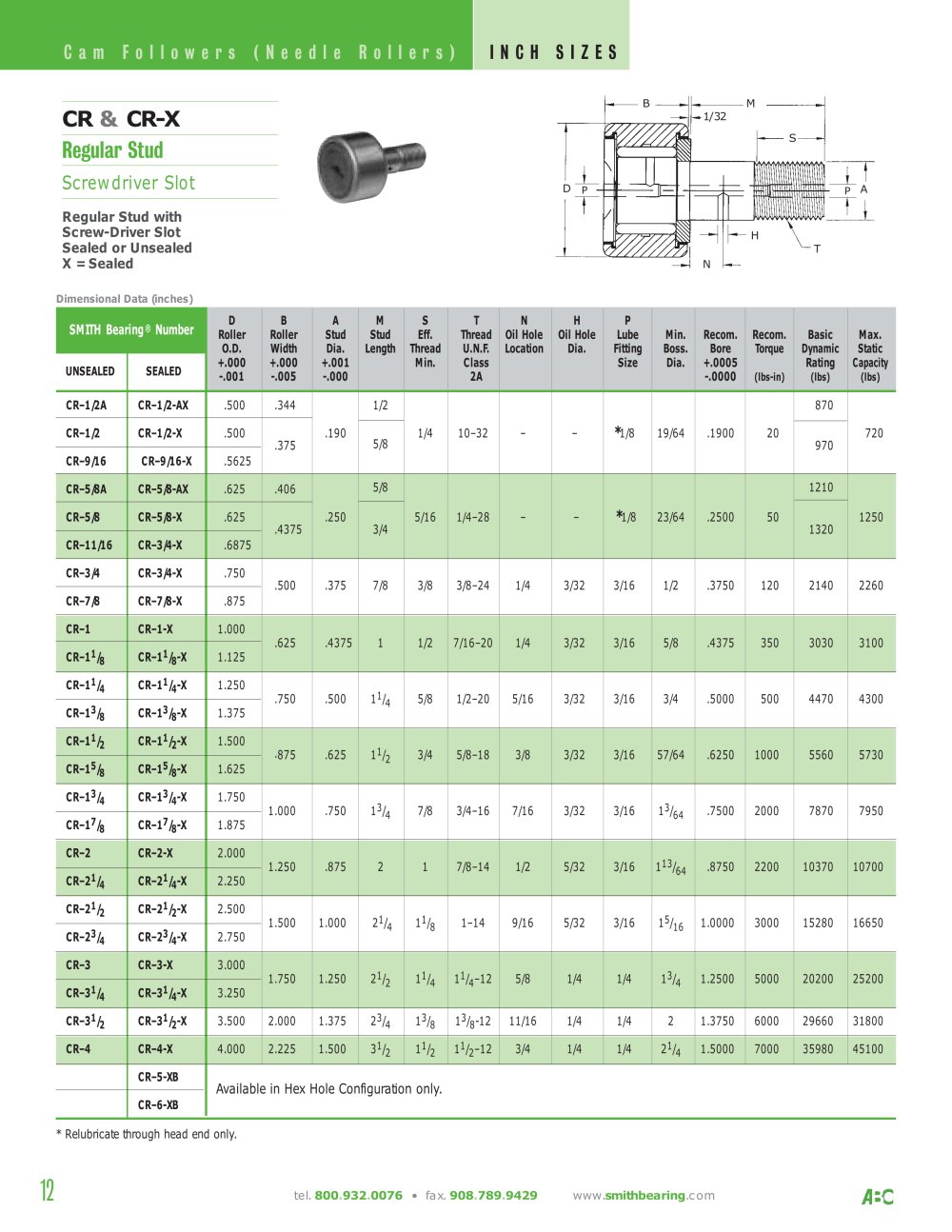

Cam Followers (Needle Rollers)

INCH SIZES



■-S--
■-S--	1	f A
	1	f A

CR & CR-X

Regular Stud

Screwdriver Slot

Regular Stud with Screw-Driver Slot Sealed or Unsealed X = Sealed

Dimensional Data (inches)


SMTH Becring® Number		D Roller OD. +.000 -.001	B Roller Wiath +.000 -.005	A stua Dia +.001 -.000	M Stua Length	S Eff. Threaa Mn.	T Thread U.N.F. Class 2A	N Oil Hole Location	H Oil Hole Dia	P Lube Fitting Size	Min. Boss. Dia.	Recom. Bore +.0005 -.0000	Recom. Torque (Ibs-in)	Basic Dynamic Rat ng (lbs)	Max. Static Capacity (lbs)
UNSEALED	SEALED
CR-1/2A	CR-1/2-AX	.500	.344	.190	1/2	1/4	10-32	-	-		19/64	.1900	20	870	720
CR-1/2	CR-1/2-X	.500	.375		5,6									970
CR-9/16	CR-9/16-X	.5625
CR-5/8A	CR-5/8-AX	.625	.406	.250	5/8	5/16	1/4-28	-	-	*1/8	23/64	.2500	50	1210	1250
CR-5/8	CR-5/8-X	.625	.4375		3/4									1320
CR-11/16	CR-3/4-X	.6875
CR-3/4	CR-3/4-X	.750	.500	.375	7/3	3/8	3/8-24	1/4	3/32	3/16	1/2	.3750	120	2140	2260
CR-7/8	CR-7/8-X	.875
CR-1	CR-1-X	1.000	.625	.4375	1	1/2	7/16-20	1/4	3/32	3/16	5/8	.4375	350	3030	3100
CR-1¹/₈	CR-1¹/8-X	1.125
CR-1¹/,	CR-1¹/4-X	1.250	.750	.500	1¹/4	5/8	1/2-20	5/16	3/32	3/16	3/4	.5000	500	4470	4300
CR-1³/j	CR-1³/₈-X	1.375
CR-1¹/,	CR-1¹/₂-X	1.500	.875	.625	1¹/2	3/4	5/8-18	3/8	3/32	3/16	57/64	.6250	1000	5560	5730
CR-1⁵/j	CR-1⁵/₈-X	1.625
CR-1³/₄	CR-1³/4-X	1.750	1.000	.750	1³/4	7/8	3/4-16	7/16	3/32	3/16	^13/64	.7500	2000	7870	7950
CR-1⁷/8	CR-1⁷/j-X	1.875
CR-2	CR-2-X	2.000	1.250	.875	2	1	7/8-14	1/2	5/32	3/16	^113/64	.8750	2200	10370	10700
CR-,¹/4	CR-2¹/₄-X	2.250
CR-2¹/2	CR-2¹/₂-X	2.500	1.500	1.000	^21/4	1¹/8	1-14	9/16	5/32	3/16	1⁵/16	1.0000	3000	15280	16650
CR-2³/4	CR-2³/₄-X	2.750
CR-3	CR-3-X	3.000	1.750	1.250	^21/2	^11/4	1V4-12	5/8	1/4	1/4	^13/4	1.2500	5000	20200	25200
CR-3¹/4	CR-3¹/₄-X	3.250
CR-3¹/₂	CR-3¹/₂-X	3.500	2.000	1.375	^23/4	1³/8	1³/8-12	11/16	1/4	1/4	2	1.3750	6000	29660	31800
CR-4	CR-4-X	4.000	2.225	1.500	3¹/2	^11/2	1¹/₂-12	3/4	1/4	1/4	^21/4	1.5000	7000	35980	45100
	CR-5-XB CR-6-XB	A/ciictìe in He< Hde Gcnfiguctcn cnly.

Reubiaale through head end cnly

tel. 800.932.0076 fax. 908.789.9429 www.smithbearing.acm
