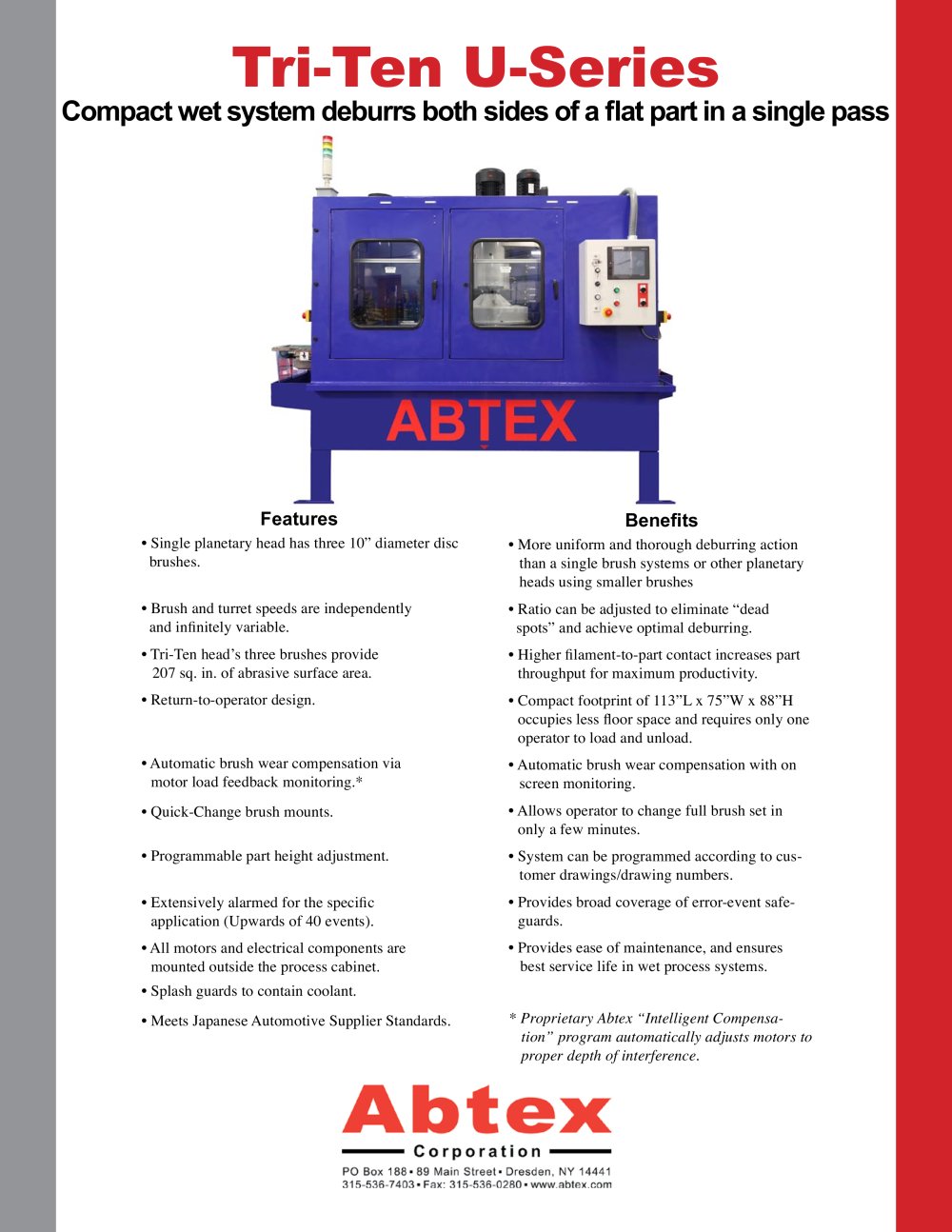

Tri-Ten U-Series Compact wet system deburrs both sides of a flat part in a single pass Features Benefits • Single planetary head has three 10” diameter disc brushes. • Brush and turret speeds are independently and infinitely variable. • Tri-Ten head’s three brushes provide 207 sq. in. of abrasive surface area. • Return-to-operator design. • Automatic brush wear compensation via motor load feedback monitoring.* • Quick-Change brush mounts. • Programmable part height adjustment. • Extensively alarmed for the specific application (Upwards of 40 events). • All motors and electrical components are mounted outside the process cabinet. • Splash guards to contain coolant. • Meets Japanese Automotive Supplier Standards. • More uniform and thorough deburring action than a single brush systems or other planetary heads using smaller brushes • Ratio can be adjusted to eliminate “dead spots” and achieve optimal deburring. • Higher filament-to-part contact increases part throughput for maximum productivity. • Compact footprint of 113”L x 75”W x 88”H occupies less floor space and requires only one operator to load and unload. • Automatic brush wear compensation with on screen monitoring. • Allows operator to change full brush set in only a few minutes. • System can be programmed according to customer drawings/drawing numbers. • Provides broad coverage of error-event safeguards. • Provides ease of maintenance, and ensures best service life in wet process systems. * Proprietary Abtex “Intelligent Compensation” program automatically adjusts motors to proper depth of interference.
