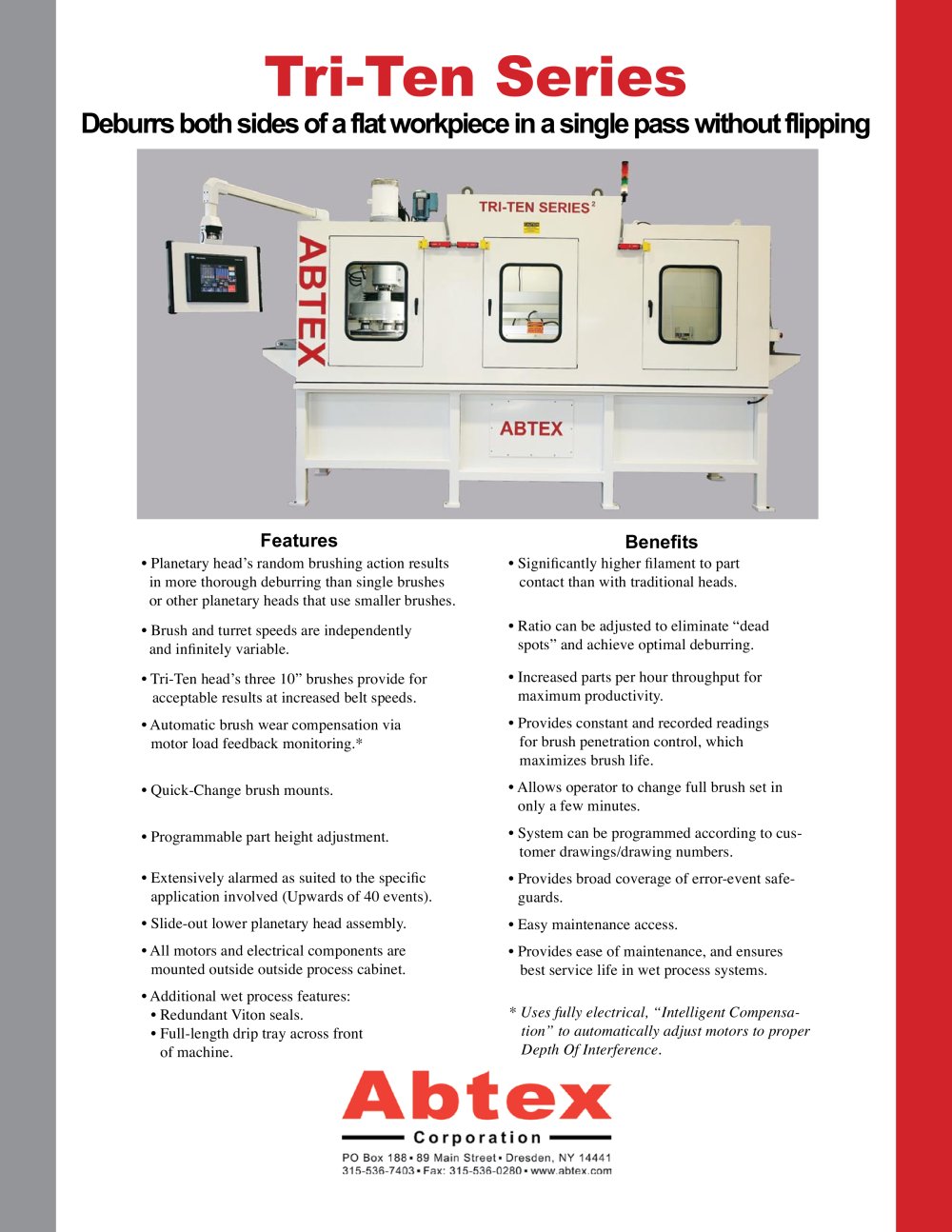

Tri-Ten Series Deburrs both sides of a flat workpiece in a single pass without flipping Features Benefits • Planetary head’s random brushing action results in more thorough deburring than single brushes or other planetary heads that use smaller brushes. • Brush and turret speeds are independently and infinitely variable. • Tri-Ten head’s three 10” brushes provide for acceptable results at increased belt speeds. • Automatic brush wear compensation via motor load feedback monitoring.* • Quick-Change brush mounts. • Programmable part height adjustment. • Extensively alarmed as suited to the specific application involved (Upwards of 40 events). • Slide-out lower planetary head assembly. • All motors and electrical components are mounted outside outside process cabinet. • Additional wet process features: • Redundant Viton seals. • Full-length drip tray across front of machine. • Significantly higher filament to part contact than with traditional heads. • Ratio can be adjusted to eliminate “dead spots” and achieve optimal deburring. • Increased parts per hour throughput for maximum productivity. • Provides constant and recorded readings for brush penetration control, which maximizes brush life. • Allows operator to change full brush set in only a few minutes. • System can be programmed according to customer drawings/drawing numbers. • Provides broad coverage of error-event safeguards. • Easy maintenance access. • Provides ease of maintenance, and ensures best service life in wet process systems. * Uses fully electrical, “Intelligent Compensation” to automatically adjust motors to proper Depth Of Interference.
