Chuck Jaws & Jaw Nuts

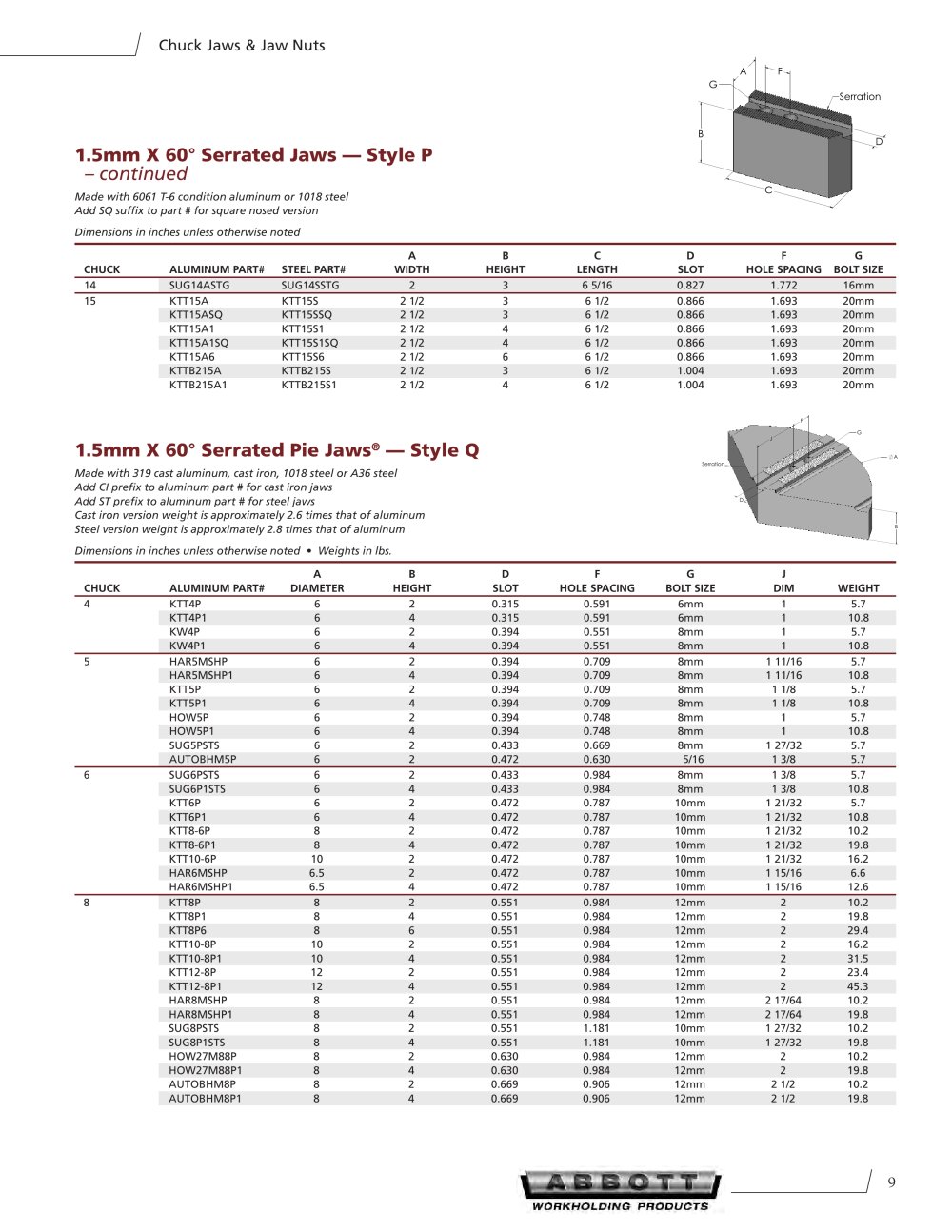

Abbott Workholding Products - 26486 1.5mm X 60° Serrated Jaws — Style P – continued

Made with 6061 T-6 condition aluminum or 1018 steel Add SQ suffix to part # for square nosed version Dimensions in inches unless otherwise noted A B C D F G CHUCK ALUMINUM PART# STEEL PART# WIDTH HEIGHT LENGTH SLOT HOLE SPACING BOLT SIZE 14 SUG14ASTG SUG14SSTG 2 3 6 5/16 0.827 1.772 16mm15 KTT15A KTT15S 2 1/2 3 6 1/2 0.866 1.693 20mm KTT15ASQ KTT15SSQ 2 1/2 3 6 1/2 0.866 1.693 20mm KTT15A1 KTT15S1 2 1/2 4 6 1/2 0.866 1.693 20mm KTT15A1SQ KTT15S1SQ 2 1/2 4 6 1/2 0.866 1.693 20mm KTT15A6 KTT15S6 2 1/2 6 6 1/2 0.866 1.693 20mm KTTB215A KTTB215S 2 1/2 3 6 1/2 1.004 1.693 20mm KTTB215A1 KTTB215S1 2 1/2 4 6 1/2 1.004 1.693 20mm

1.5mm X 60° Serrated Pie Jaws

®

— Style Q

Made with 319 cast aluminum, cast iron, 1018 steel or A36 steel Add CI prefix to aluminum part # for cast iron jaws Add ST prefix to aluminum part # for steel jaws Cast iron version weight is approximately 2.6 times that of aluminum Steel version weight is approximately 2.8 times that of aluminum Dimensions in inches unless otherwise noted • Weights in lbs. A B D F G J CHUCK ALUMINUM PART# DIAMETER HEIGHT SLOT HOLE SPACING BOLT SIZE DIM WEIGHT 4 KTT4P 6 2 0.315 0.591 6mm 1 5.7 KTT4P1 6 4 0.315 0.591 6mm 1 10.8 KW4P 6 2 0.394 0.551 8mm 1 5.7 KW4P1 6 4 0.394 0.551 8mm 1 10.85 HAR5MSHP 6 2 0.394 0.709 8mm 1 11/16 5.7 HAR5MSHP1 6 4 0.394 0.709 8mm 1 11/16 10.8 KTT5P 6 2 0.394 0.709 8mm 1 1/8 5.7 KTT5P1 6 4 0.394 0.709 8mm 1 1/8 10.8 HOW5P 6 2 0.394 0.748 8mm 1 5.7 HOW5P1 6 4 0.394 0.748 8mm 1 10.8 SUG5PSTS 6 2 0.433 0.669 8mm 1 27/32 5.7 AUTOBHM5P 6 2 0.472 0.630 5/16 1 3/8 5.76 SUG6PSTS 6 2 0.433 0.984 8mm 1 3/8 5.7 SUG6P1STS 6 4 0.433 0.984 8mm 1 3/8 10.8 KTT6P 6 2 0.472 0.787 10mm 1 21/32 5.7 KTT6P1 6 4 0.472 0.787 10mm 1 21/32 10.8 KTT8-6P 8 2 0.472 0.787 10mm 1 21/32 10.2 KTT8-6P1 8 4 0.472 0.787 10mm 1 21/32 19.8 KTT10-6P 10 2 0.472 0.787 10mm 1 21/32 16.2 HAR6MSHP 6.5 2 0.472 0.787 10mm 1 15/16 6.6 HAR6MSHP1 6.5 4 0.472 0.787 10mm 1 15/16 12.68 KTT8P 8 2 0.551 0.984 12mm 2 10.2 KTT8P1 8 4 0.551 0.984 12mm 2 19.8 KTT8P6 8 6 0.551 0.984 12mm 2 29.4 KTT10-8P 10 2 0.551 0.984 12mm 2 16.2 KTT10-8P1 10 4 0.551 0.984 12mm 2 31.5 KTT12-8P 12 2 0.551 0.984 12mm 2 23.4 KTT12-8P1 12 4 0.551 0.984 12mm 2 45.3 HAR8MSHP 8 2 0.551 0.984 12mm 2 17/64 10.2 HAR8MSHP1 8 4 0.551 0.984 12mm 2 17/64 19.8 SUG8PSTS 8 2 0.551 1.181 10mm 1 27/32 10.2 SUG8P1STS 8 4 0.551 1.181 10mm 1 27/32 19.8 HOW27M88P 8 2 0.630 0.984 12mm 2 10.2 HOW27M88P1 8 4 0.630 0.984 12mm 2 19.8 AUTOBHM8P 8 2 0.669 0.906 12mm 2 1/2 10.2 AUTOBHM8P1 8 4 0.669 0.906 12mm 2 1/2 19.8

9
