Chuck Jaws & Jaw Nuts

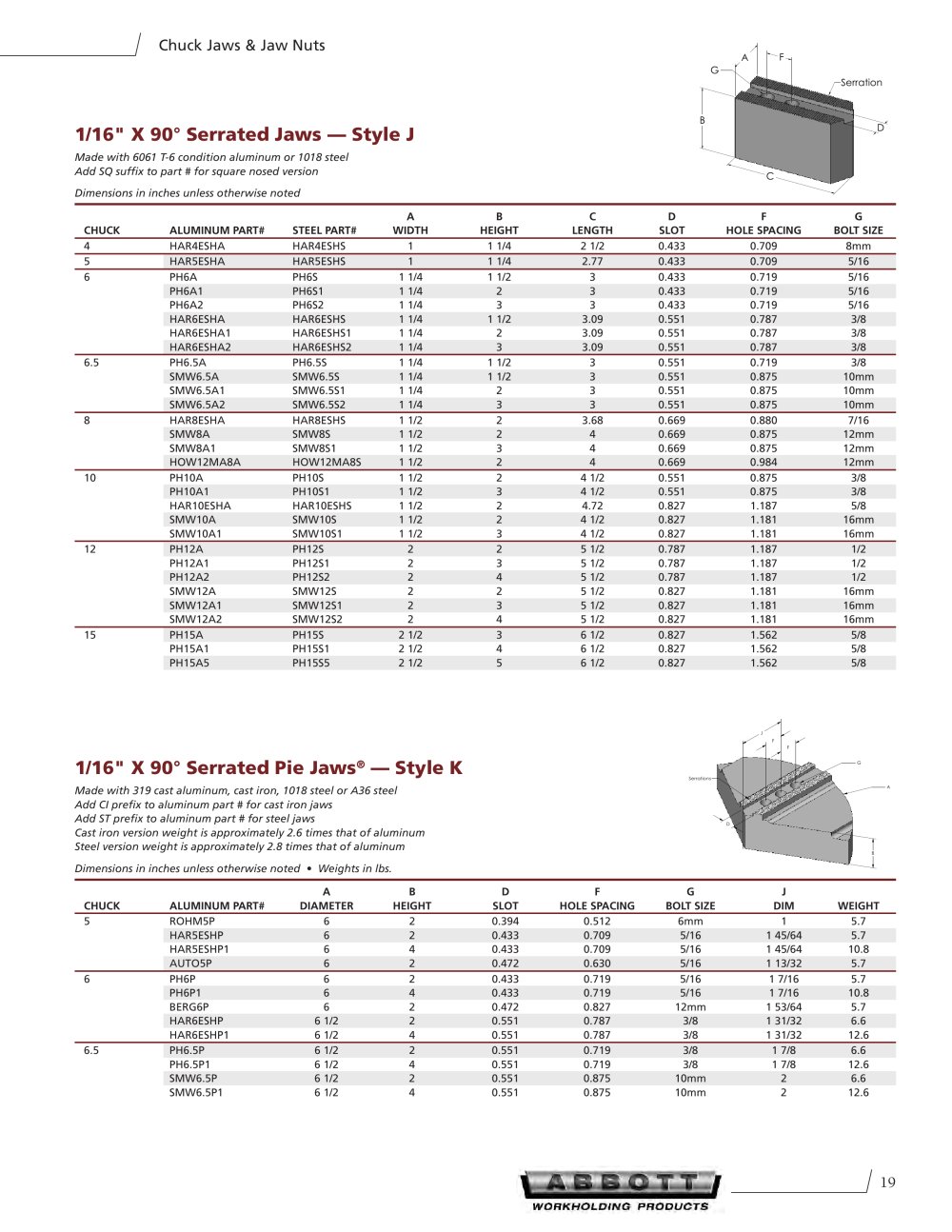

Abbott Workholding Products - 26486 1/16" X 90° Serrated Jaws — Style J

Made with 6061 T-6 condition aluminum or 1018 steel Add SQ suffix to part # for square nosed version Dimensions in inches unless otherwise noted A B C D F G CHUCK ALUMINUM PART# STEEL PART# WIDTH HEIGHT LENGTH SLOT HOLE SPACING BOLT SIZE 4 HAR4ESHA HAR4ESHS 1 1 1/4 2 1/2 0.433 0.709 8mm 5 HAR5ESHA HAR5ESHS 1 1 1/4 2.77 0.433 0.709 5/16 6 PH6A PH6S 1 1/4 1 1/2 3 0.433 0.719 5/16 PH6A1 PH6S1 1 1/4 2 3 0.433 0.719 5/16 PH6A2 PH6S2 1 1/4 3 3 0.433 0.719 5/16 HAR6ESHA HAR6ESHS 1 1/4 1 1/2 3.09 0.551 0.787 3/8 HAR6ESHA1 HAR6ESHS1 1 1/4 2 3.09 0.551 0.787 3/8 HAR6ESHA2 HAR6ESHS2 1 1/4 3 3.09 0.551 0.787 3/8 6.5 PH6.5A PH6.5S 1 1/4 1 1/2 3 0.551 0.719 3/8 SMW6.5A SMW6.5S 1 1/4 1 1/2 3 0.551 0.875 10mm SMW6.5A1 SMW6.5S1 1 1/4 2 3 0.551 0.875 10mm SMW6.5A2 SMW6.5S2 1 1/4 3 3 0.551 0.875 10mm 8 HAR8ESHA HAR8ESHS 1 1/2 2 3.68 0.669 0.880 7/16 SMW8A SMW8S 1 1/2 2 4 0.669 0.875 12mm SMW8A1 SMW8S1 1 1/2 3 4 0.669 0.875 12mm HOW12MA8A HOW12MA8S 1 1/2 2 4 0.669 0.984 12mm 10 PH10A PH10S 1 1/2 2 4 1/2 0.551 0.875 3/8 PH10A1 PH10S1 1 1/2 3 4 1/2 0.551 0.875 3/8 HAR10ESHA HAR10ESHS 1 1/2 2 4.72 0.827 1.187 5/8 SMW10A SMW10S 1 1/2 2 4 1/2 0.827 1.181 16mm SMW10A1 SMW10S1 1 1/2 3 4 1/2 0.827 1.181 16mm 12 PH12A PH12S 2 2 5 1/2 0.787 1.187 1/2 PH12A1 PH12S1 2 3 5 1/2 0.787 1.187 1/2 PH12A2 PH12S2 2 4 5 1/2 0.787 1.187 1/2 SMW12A SMW12S 2 2 5 1/2 0.827 1.181 16mm SMW12A1 SMW12S1 2 3 5 1/2 0.827 1.181 16mm SMW12A2 SMW12S2 2 4 5 1/2 0.827 1.181 16mm 15 PH15A PH15S 2 1/2 3 6 1/2 0.827 1.562 5/8 PH15A1 PH15S1 2 1/2 4 6 1/2 0.827 1.562 5/8 PH15A5 PH15S5 2 1/2 5 6 1/2 0.827 1.562 5/8

1/16" X 90° Serrated Pie Jaws

®

— Style K

Made with 319 cast aluminum, cast iron, 1018 steel or A36 steel Add CI prefix to aluminum part # for cast iron jaws Add ST prefix to aluminum part # for steel jaws Cast iron version weight is approximately 2.6 times that of aluminum Steel version weight is approximately 2.8 times that of aluminum Dimensions in inches unless otherwise noted • Weights in lbs. A B D F G J CHUCK ALUMINUM PART# DIAMETER HEIGHT SLOT HOLE SPACING BOLT SIZE DIM WEIGHT 5 ROHM5P 6 2 0.394 0.512 6mm 1 5.7 HAR5ESHP 6 2 0.433 0.709 5/16 1 45/64 5.7 HAR5ESHP1 6 4 0.433 0.709 5/16 1 45/64 10.8 AUTO5P 6 2 0.472 0.630 5/16 1 13/32 5.76 PH6P 6 2 0.433 0.719 5/16 1 7/16 5.7 PH6P1 6 4 0.433 0.719 5/16 1 7/16 10.8 BERG6P 6 2 0.472 0.827 12mm 1 53/64 5.7 HAR6ESHP 6 1/2 2 0.551 0.787 3/8 1 31/32 6.6 HAR6ESHP1 6 1/2 4 0.551 0.787 3/8 1 31/32 12.66.5 PH6.5P 6 1/2 2 0.551 0.719 3/8 1 7/8 6.6 PH6.5P1 6 1/2 4 0.551 0.719 3/8 1 7/8 12.6 SMW6.5P 6 1/2 2 0.551 0.875 10mm 2 6.6 SMW6.5P1 6 1/2 4 0.551 0.875 10mm 2 12.6
