PGC1000 Field Mounted Process Gas Chromatograph
5Pages

{{requestButtons}}

Catalog excerpts

PGC1000 Field Mounted Process Gas Chromatograph - 1

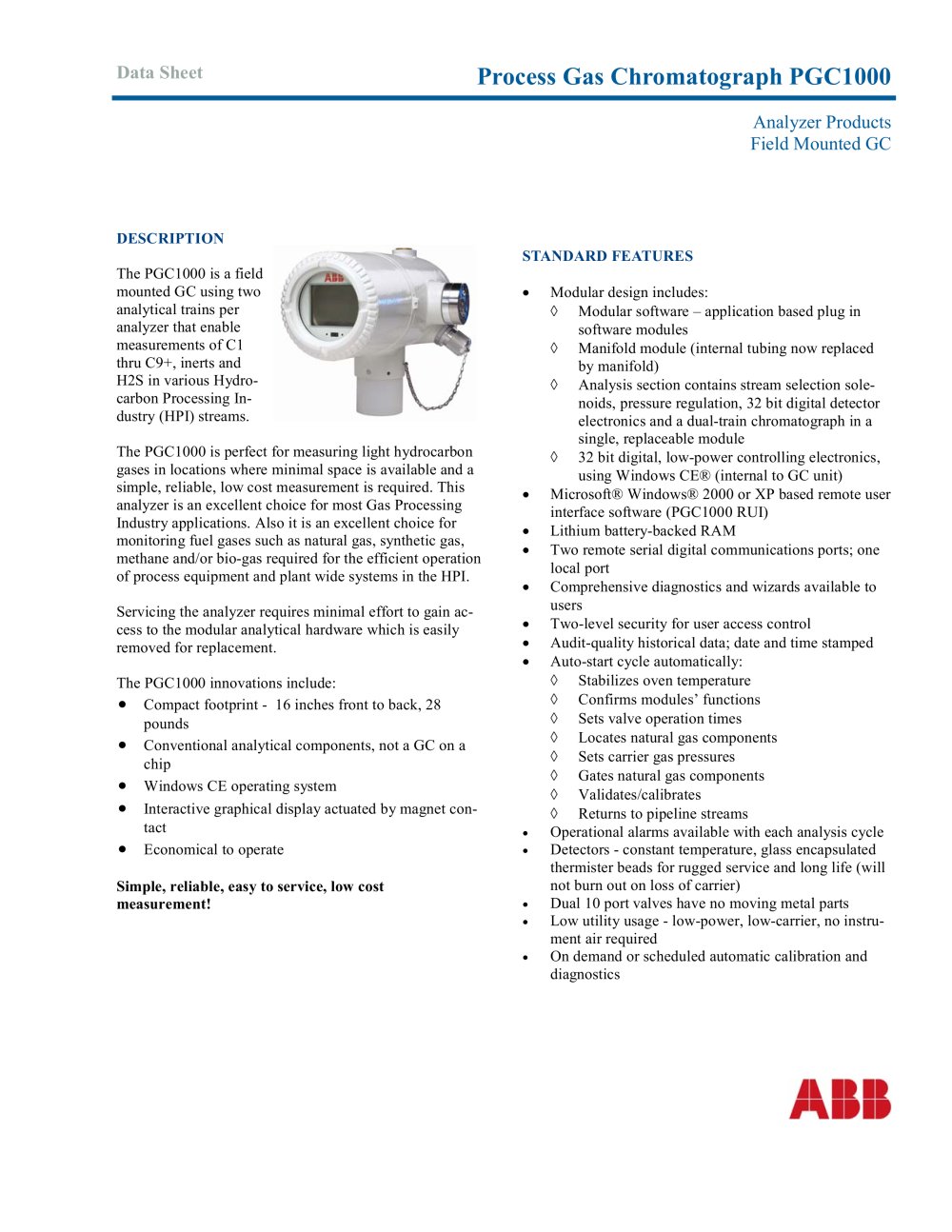

DESCRIPTION The PGC1000 is a field mounted GC using two analytical trains per analyzer that enable measurements of C1 thru C9+, inerts and H2S in various Hydro-carbon Processing In-dustry (HPI) streams. The PGC1000 is perfect for measuring light hydrocarbon gases in locations where minimal space is available and a simple, reliable, low cost measurement is required. This analyzer is an excellent choice for most Gas Processing Industry applications. Also it is an excellent choice for monitoring fuel gases such as natural gas, synthetic gas, methane and/or bio-gas required for the efficient operation of process equipment and plant wide systems in the HPI. Servicing the analyzer requires minimal effort to gain ac-cess to the modular analytical hardware which is easily removed for replacement. The PGC1000 innovations include: Modular design includes: Modular software application based plug in software modules Manifold module (internal tubing now replaced by manifold) Analysis section contains stream selection sole-noids, pressure regulation, 32 bit digital detector electronics and a dual-train chromatograph in a single, replaceable module 32 bit digital, low-power controlling electronics, using Windows CE֮ (internal to GC unit) Microsoft Windowsή 2000 or XP based remote user interface software (PGC1000 RUI) Lithium battery-backed RAM Two remote serial digital communications ports; one local port Comprehensive diagnostics and wizards available to users Two-level security for user access control Audit-quality historical data; date and time stamped Auto-start cycle automatically: Stabilizes oven temperature Compact footprint - 16 inches front to back, 28 pounds Confirms modules functions Sets valve operation times Conventional analytical components, not a GC on a chip Locates natural gas components Sets carrier gas pressures Windows CE operating system Gates natural gas components Validates/calibrates Interactive graphical display actuated by magnet con-tact Returns to pipeline streams Operational alarms available with each analysis cycle Economical to operate Detectors - constant temperature, glass encapsulated thermister beads for rugged service and long life (will not burn out on loss of carrier) Simple, reliable, easy to service, low cost measurement! STANDARD FEATURES Dual 10 port valves have no moving metal parts Low utility usage - low-power, low-carrier, no instru-ment air required On demand or scheduled automatic calibration and diagnostics >

Open the catalog to page 1
PGC1000 Field Mounted Process Gas Chromatograph - 2

SAMPLE PROBE A sample probe is recommended to obtain a representative sample of the flowing gas stream. Genie and Welker sam-ple probes are available and are specifically designed to require no power and avoid sample probe regulator icing. Optional electrically heated and auto insertion probes are also available. > Standard Sample Conditioning System On board digital > VGA display with multiple screen access OPERATOR INTERFACE USB (Host and Client) and Ethernet ports Functional setup and operation of the PGC1000 is accom-plished by using a graphical userܒs interface software package called...

Open the catalog to page 2
PGC1000 Field Mounted Process Gas Chromatograph - 3

PGC Controller, (32 bit Processor) PGC VGA Display Other Maintenance Support Features: Intuitive Local Operator Interface (PGC1000 RUI) running Microsoftܮ Windows 2000 or XP SPECIFICATIONS Diagnostic software and wizards for maintenance Designed for Pipeline-Quality Gas Streams. Digitized detector output (chromatogram) to PGC1000 RUI Clean is defined as having no particles larger than 1 micron and no more than 1 milligram of solids per cubic meter of gas Remote or local operation of PGC1000 RUI Quick Start guide, Start up manual and Start up video Dry is defined as no more than 7 psi of...

Open the catalog to page 3
PGC1000 Field Mounted Process Gas Chromatograph - 4

CFR 47, Part 15 :- ATEX II 2G : Ex d, IIB+H AVAILABLE ACCESSORIES > 2 T6; Zone 1 - EMC - EMI/RFI: - EN 55022, EN 61000-6-1, EN 61000-4-2, 4-3, 4-4, 4-6, 4-8 - CISPR 22-2004 120/240 VAC to 12VDC GP and Exp power supplies Pole or pipeline mounting kits IECEx Exd IIB + H2 T6; Zone 1 Cold weather enclosure (also available in pipe mount configuration) Miscellaneous Type Approvals: Industry Canada Cold weather thermal jacket (future) NMI (Pending) Probes BRML (Romania) Temperature compensating fixed Communications supported: Temperature compensating retractable Two serial digital ports, software...

Open the catalog to page 4
PGC1000 Field Mounted Process Gas Chromatograph - 5

BUASC2-1-0607 Specifications subject to change without notice. Visit: www.abb.com/analytical E-mail: AnalyzeIT@us.abb.com ABB Inc. Analytical Products 843 N. Jefferson Street Lewisburg, WV 24901 USA >
