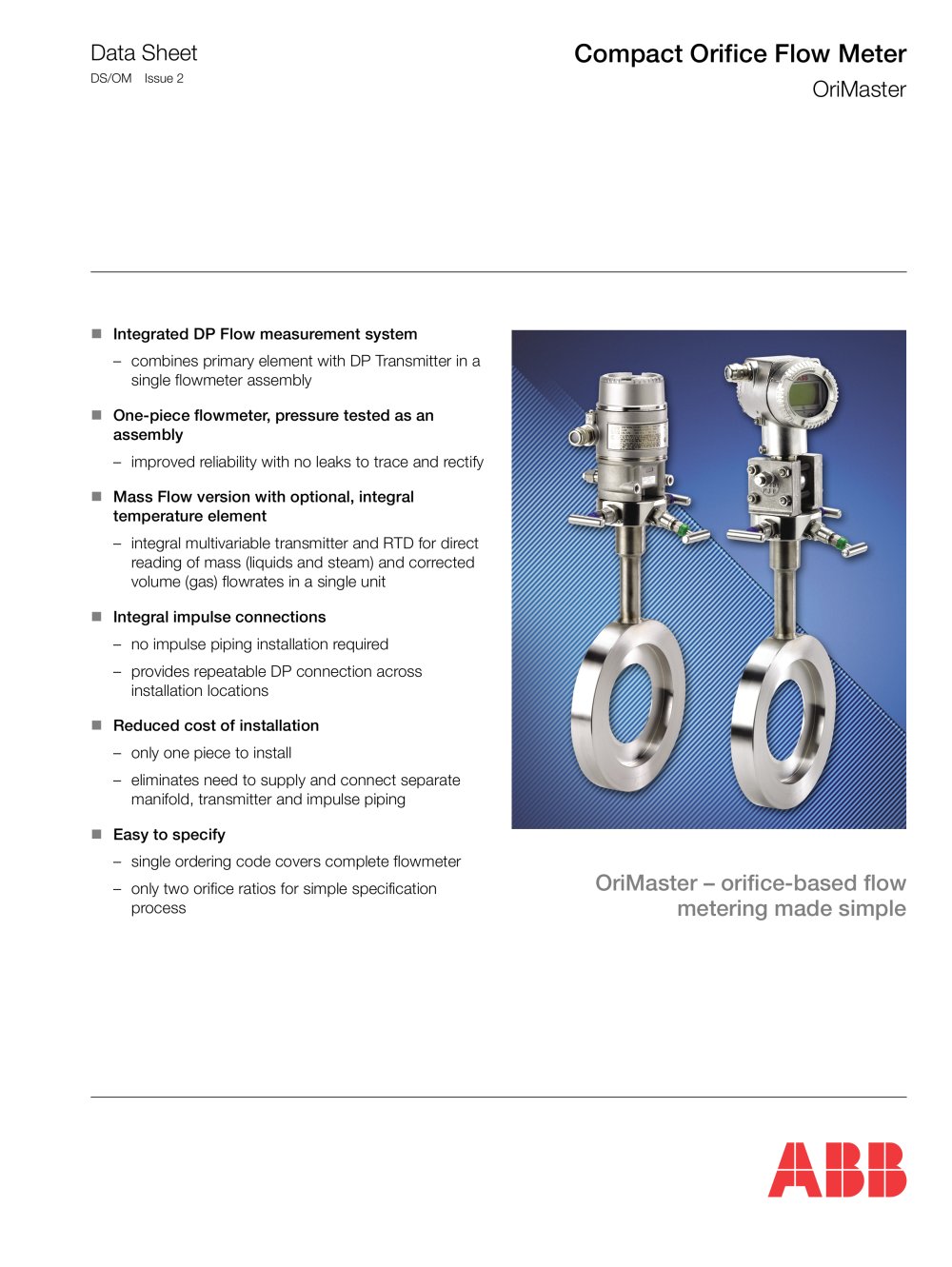

Data Sheet DS/OM Issue 2 Compact Orifice Flow Meter OriMaster .. Integrated DP Flow measurement system – combines primary element with DP Transmitter in a single flowmeter assembly .. One-piece flowmeter, pressure tested as an assembly – improved reliability with no leaks to trace and rectify .. Mass Flow version with optional, integral temperature element – integral multivariable transmitter and RTD for direct reading of mass (liquids and steam) and corrected volume (gas) flowrates in a single unit .. Integral impulse connections – no impulse piping installation required – provides repeatable DP connection across installation locations .. Reduced cost of installation – only one piece to install – eliminates need to supply and connect separate manifold, transmitter and impulse piping .. Easy to specify – single ordering code covers complete flowmeter – only two orifice ratios for simple specification process OriMaster – orifice-based flow metering made simple
