| innovative instrumentation | |||||
| | |||||

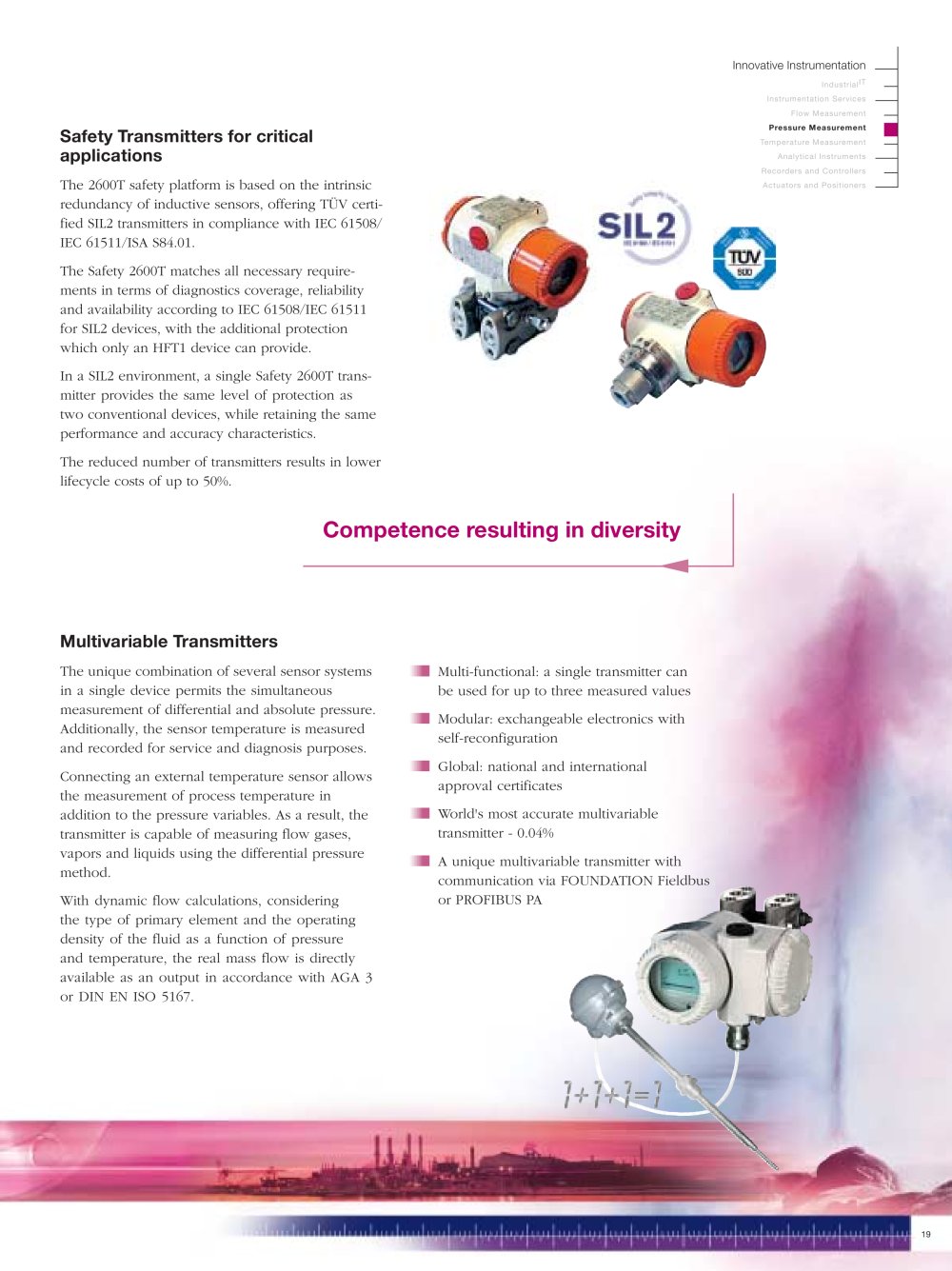

| Safety Transmitters for critical applications The 2600T safety platform is based on the intrinsic redundancy of inductive sensors, offering TUV certified SIL2 transmitters in compliance with IEC 61508/ IEC 61511/ISA S84.01. The Safety 2600T matches all necessary requirements in terms of diagnostics coverage, reliability and availability according to IEC 61508/IEC 61511 for SIL2 devices, with the additional protection which only an HFT1 device can provide. In a SIL2 environment, a single Safety 2600T transmitter provides the same level of protection as two conventional devices, while retaining the same performance and accuracy characteristics. The reduced number of transmitters results in lower lifecycle costs of up to 50%. | Instrumentation Services Flow Measurement Pressure Measurement Temperature Measurement Analytical Instruments Recorders and Controllers Actuators and Positioners | ||||
| | |||||
| Competence resulting in diversity | |||||
| | |||||
| Multivariable Transmitters The unique combination of several sensor systems in a single device permits the simultaneous measurement of differential and absolute pressure. Additionally, the sensor temperature is measured and recorded for service and diagnosis purposes. Connecting an external temperature sensor allows the measurement of process temperature in addition to the pressure variables. As a result, the transmitter is capable of measuring flow gases, vapors and liquids using the differential pressure method. With dynamic flow calculations, considering the type of primary element and the operating density of the fluid as a function of pressure and temperature, the real mass flow is directly available as an output in accordance with AGA 3 or DIN EN ISO 5167. | Multi-functional: a single transmitter can be used for up to three measured values Modular: exchangeable electronics with self-reconfiguration Global: national and international approval certificates World's most accurate multivariable transmitter - 0.04% A unique multivariable transmitter with communication via FOUNDATION Fieldbus or PROFIBUS PA | ||||
| | |||||
| | | 19 | |||
| | |||||
