364DS/364PS Differential/Gauge Pressure transmitter

364DS/364PS Differential/Gauge Pressure transmitter
12Pages

Catalog excerpts

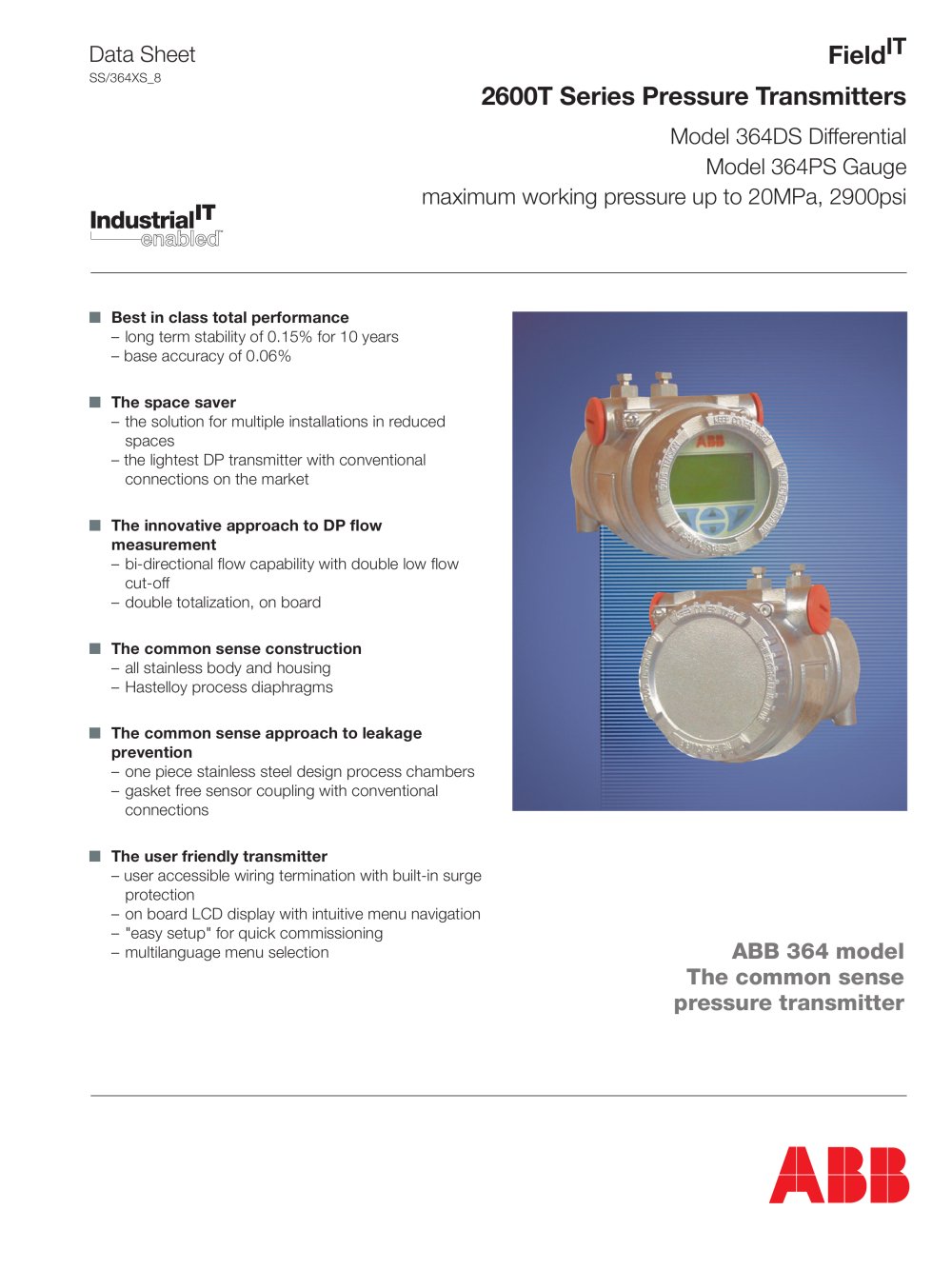

364DS/364PS Differential/Gauge Pressure transmitter - 1

■ Best in class total performance long term stability of 0.15% for 10 years ֖ base accuracy of 0.06% ■ The space saver the solution for multiple installations in reducedspaces֖ the lightest DP transmitter with conventionalconnections on the market ■ The innovative approach to DP flow measurement bi-directional flow capability with double low flowcut-off֖double totalization, on board ■ The common sense construction all stainless body and housing ֖Hastelloy process diaphragms ■ The common sense approach to leakage prevention one piece stainless steel design process chambers ֖gasket free sensor coupling with conventionalconnections ■ The user friendly transmitter user accessible wiring termination with built-in surgeprotection֖on board LCD display with intuitive menu navigation "easy setup" for quick commissioning ֖multilanguage menu selection >

Open the catalog to page 1

364DS/364PS Differential/Gauge Pressure transmitter - 5

(Refer to ordering information sheets for variant availability related tospecific model or versions code) Two > 1 / > 2 14 NPT or M20x1.5 threaded conduit entries, direct onhousing. > Terminal block Process isolating diaphragms (*) Three terminals for signal/external meter wiring up to 2.5mm > 2 (14AWG) Hastelloy C276֙ on AISI 316 L ss seat (NACE) Grounding Process connection, adapters, plugs and drain/vent valves (*) Internal and external 6mm > 2 (10AWG) ground termination points areprovided. AISI 316 L ss (NACE) Bolts (for adapter only if selected) (*) > AISI 316 ss bolts Class A450 per...

Open the catalog to page 5

364DS/364PS Differential/Gauge Pressure transmitter - 6

Internal groundExternal ground Hand-heldcommunicatorGNDLine load Remoteindicator Powersource250 ohm min ReceiverOptional > 7 8 5 6 9 2 3 4 40 60 10 80 20 % 100 Kent-Taylor LinkMeter plugconnector NOTE :1/4 - 18 NPT process connection, gasket groove and gaskets are in accordance with IEC 61518. Bolting threads for fixing adapter orother devices (i.e. manifold etc.) on process flange is > PVREVIEWSERIALLINKTRIM CONF A B C D E F G H I 1 2 3 J K L M N O P Q R 4 5 6 S T U V W X Y Z # 7 8 9 @ % +- HART hand-held communicator may be connected at any wiring termination point in the loop, providing...

Open the catalog to page 6

364DS/364PS Differential/Gauge Pressure transmitter - 12

ABB has Sales & Customer Support expertise in over 100 countries worldwide > The Companys policy is one of continuous productimprovement and the right is reserved to modify theinformation contained herein without notice.Printed in Italy (03.2009)ҩ ABB 2009 www.abb.com/instrumentation ABB SACE A division of ABB S.p.A.Via Statale 113 22016 Lenno (CO) Italy Tel:+39 0344 58111 Fax:+39 0344 56278 > SS/364XS_8 ABB Inc. 125 E. County Line Road Warminster, PA 18974 USA Tel:+1 215 674 6000 Fax:+1 215 674 7183 ABB Ltd Howard Road, St. Neots Cambridgeshire, PE19 8EU UK Tel:+44(0)1480...
