Panel 800 Overview - Brochure
8Pages

{{requestButtons}}

Catalog excerpts

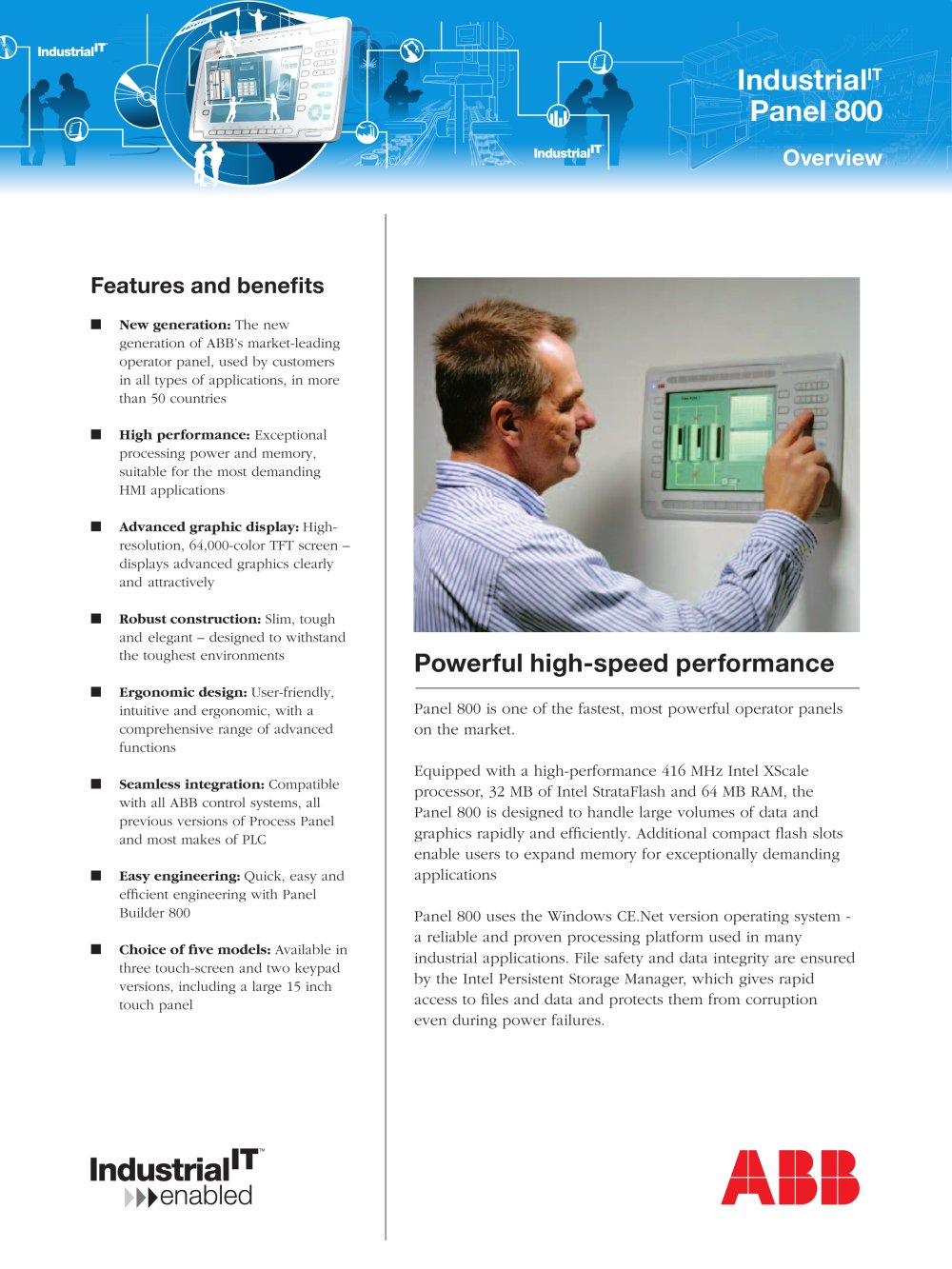

Panel 800 Overview - Brochure - 1

■ New generation: The new generation of ABBs market-leading operator panel, used by customers in all types of applications, in more than 50 countries Ң֠ High performance: Exceptional processing power and memory, suitable for the most demanding HMI applications ■ Advanced graphic display: High- resolution, 64,000-color TFT screen displays advanced graphics clearly and attractively ֢֠ Robust construction: Slim, tough and elegant designed to withstand the toughest environments ֢֠ Ergonomic design: User-friendly, intuitive and ergonomic, with a comprehensive range of advanced functions > ■ Seamless integration: Compatible with all ABB control systems, all previous versions of Process Panel and most makes of PLC > ■ Easy engineering: Quick, easy and effi cient engineering with Panel Builder 800 ■ Choice of fi ve models: Available in three touch-screen and two keypad versions, including a large 15 inch touch panel >

Open the catalog to page 1
Panel 800 Overview - Brochure - 2

Figure 1. Slim, tough and elegant Panel 800 is made of lightweight aluminum and is less than 60 mm in depth > Figure 3. Touch panel PP865 Figure 2. Function key panel PP846 >

Open the catalog to page 2
Panel 800 Overview - Brochure - 3

Figure 4. Panel 800 offers advanced features and functions. > Panel 800 functions Summer Yes Dual drivers with data exchange Yes Passthrough / transparent mode Yes (Dependent on driver) No protocol mode Yes (Demo driver) Multiple language Yes (Up to 10 languanges / project) Unicode support Yes True type fonts Yes Data logger Yes Internal variables Yes Historic trend Yes Recipe management Yes Alarm management Yes (Up to 16 groups) Time channels Yes IO time groups Yes Security passwords Yes (Up to 8 levels) Message libraries Yes Macros Yes Dynamic objects Yes Report printouts Yes Symbol...

Open the catalog to page 3
Panel 800 Overview - Brochure - 6

- Front panel, W x H x D 285 x 177 x 6 mm 382 x 252 x 6 mm 219 x 154 x 6 mm 302 x 228 x 6 mm 398 x 304 x 6 mm Cut-out dimensions 246 x 139 mm 343 x 208 mm 189 x 138 mm 265 x 206 mm 356 x 279 mm Mounting depth 55 mm 58 mm 55 mm 58 mm 60 mm Weight 1.3 kg 2.3 kg 1.1 kg 2 kg 3.7 kg > Dimensions Specifi cations PP836 PP846 PP 835 PP845 PP865 Display size 6.5 10.4 6.5 10.4 15 Resolution 640 x 480 pixels 800 x 600 pixels 640 x 480 pixels 800 x 600 pixels 1024 x 768 pixels Interaction type Function key Function key Resistive Touch Resistive Touch Resistive Touch LED 16 (2 color) 20 (2 color) - - -...

Open the catalog to page 6
Panel 800 Overview - Brochure - 7

Figure 11. Panel 800 is one of the fastest, most powerful operator panels on the market. User-friendly, intuitive and ergonomic, Panel 800 combines slim, space-saving dimensions with a comprehensive range of advanced functions. > Ill. by F.Saarkoppel, www.kobolt.se

Open the catalog to page 7
