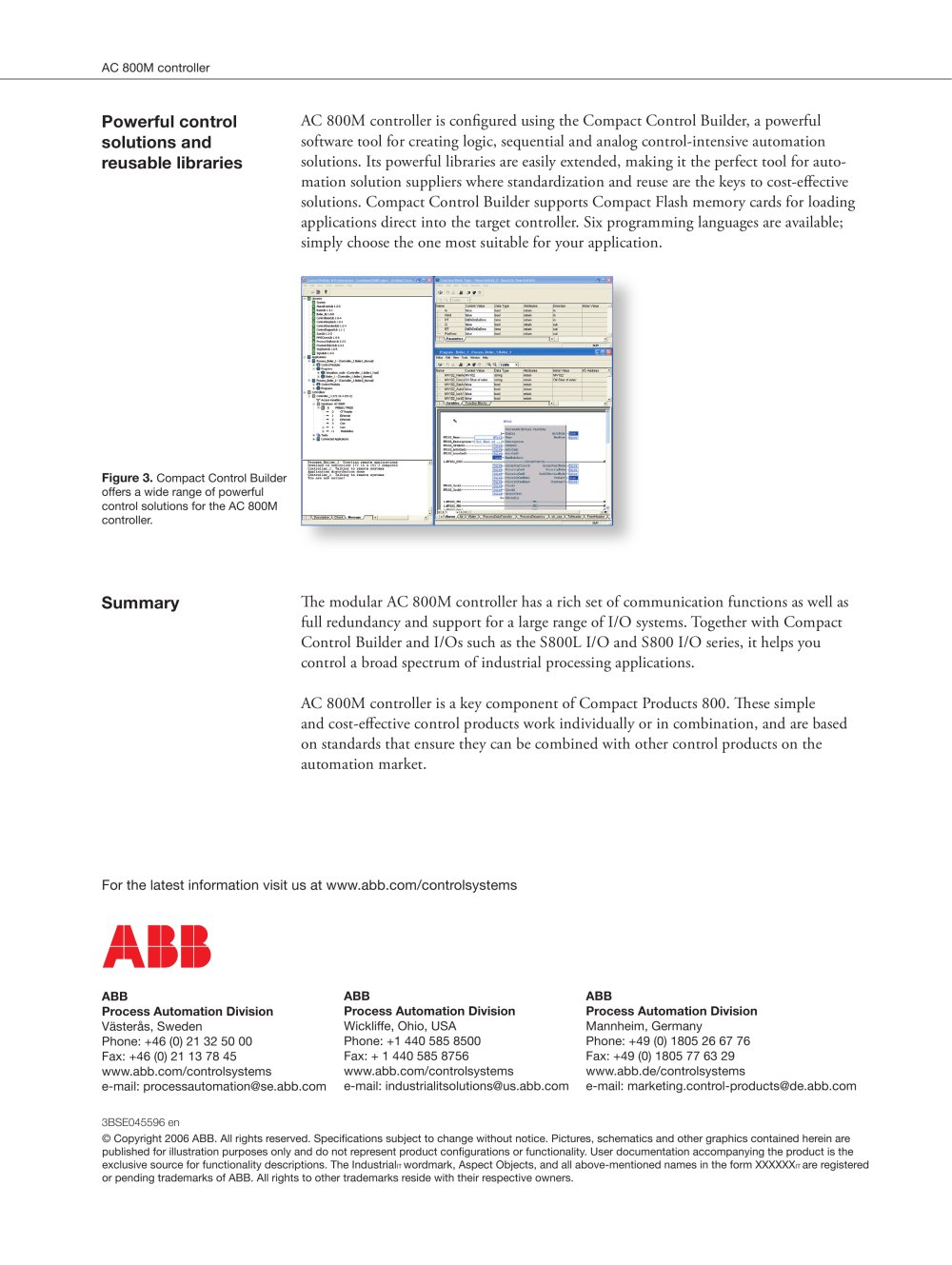

AC 800M controller

AC 800M controller is configured using the Compact Control Builder, a powerful software tool for creating logic, sequential and analog control-intensive automation solutions. Its powerful libraries are easily extended, making it the perfect tool for auto­mation solution suppliers where standardization and reuse are the keys to cost-effective solutions. Compact Control Builder supports Compact Flash memory cards for loading applications direct into the target controller. Six programming languages are available; simply choose the one most suitable for your application.

Figure 3. Compact Control Builder offers a wide range of powerful control solutions for the AC 800M controller.

Summary he modular AC 800M controller has a rich set of communication functions as well as

full redundancy and support for a large range of I/O systems. Together with Compact Control Builder and I/Os such as the S800L I/O and S800 I/O series, it helps you control a broad spectrum of industrial processing applications.

AC 800M controller is a key component of Compact Products 800. These simple and cost-effective control products work individually or in combination, and are based on standards that ensure they can be combined with other control products on the automation market.
