Oil Grabber™ Model 4 - 4 Pages

  1. P. 1

  2. P. 2

  3. P. 3

  4. P. 4

Catalogue excerpts

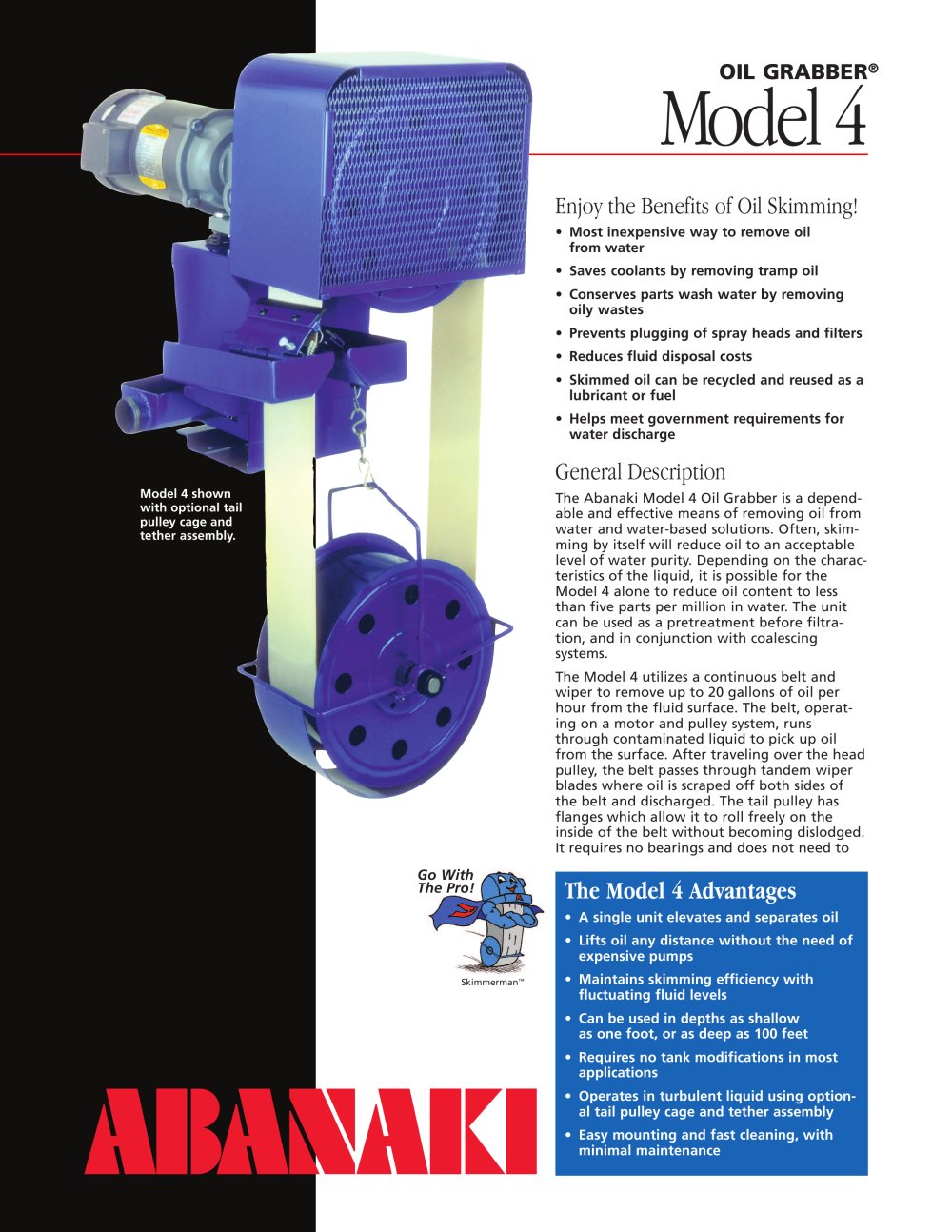

Enjoy the Benefits of Oil Skimming! > ΕMost inexpensive way to remove oil from waterSaves coolants by removing tramp oil ՕConserves parts wash water by removingoily wastesPrevents plugging of spray heads and filters ՕReduces fluid disposal costs Skimmed oil can be recycled and reused as alubricant or fuelՕHelps meet government requirements forwater discharge Model 4 shownwith optional tail pulley cage and tether assembly. General Description > The Abanaki Model 4 Oil Grabber is a depend- able and effective means of removing oil from water and water-based solutions. Often, skim- ming by itself will reduce oil to an acceptable level of water purity.Depending on the charac- teristics of the liquid, it is possible for the Model 4 alone to reduce oil content to less than five parts per million in water. The unit can be used as a pretreatment beforefiltra- tion, and in conjunction with coalescing systems.The Model 4 utilizes a continuous belt andwiper to remove up to 20 gallons of oil per hour from the fluid surface. The belt, operat- ing on a motor and pulley system, runs through contaminated liquid to pick up oil from the surface. After traveling over the head pulley, the belt passes through tandem wiper blades where oil is scraped off both sides of the belt and discharged. The tail pulley has flanges which allow it to roll freely on theinside of the belt without becoming dislodged.It requires no bearings and does not need to Go WithThe Pro! The Model 4 Advantages > A single unit elevates and separates oilՕLifts oil any distance without the need ofexpensive pumpsMaintains skimming efficiency withfluctuating fluid levelsՕCan be used in depths as shallow as one foot, or as deep as 100 feetRequires no tank modifications in mostapplicationsՕOperates in turbulent liquid using option-al tail pulley cage and tether assemblyEasy mounting and fast cleaning, withminimal maintenance Skimmerman ՙ size="-5">

 Open the catalogue to page 1

be fastened to the tank. If turbulent conditionsexist, the optional tether and cage assembly prevents the tail pulley from being dislodged.Oil skimming makes use of the differences inspecific gravity and surface tension between oil and water. These physical characteristics allow the belt to attract oil and other hydrocarbon liquids from the surface of the fluid. The Model 4 can be used in tanks with depths as shallow as one foot, or as deep as 100 feet. > Model 4 with flatmount in use The Model 4 is designed for those applications where other models provide excess capacity, or physically will...

 Open the catalogue to page 2

Corrosion-resistant Steel - Elastomer - Used in applications where abra-sive particles are present or when physical abuse of the belt is likely. > Proven to be a reli-able belting material of choice: durable and trouble free. This material stands up to high temperatures and harsh chemicals. Engineered Poly - Used in relatively high heatwithout stretching. Strong chemical resistance. Capable of picking up many emulsions. Fuzzy > Model 4 Mountiing ή - Used in applications involving fuel oilssuch as gasoline or diesel fuel. > When in doubt, consult factoryfor advice onthe best belt for your application....

 Open the catalogue to page 3
