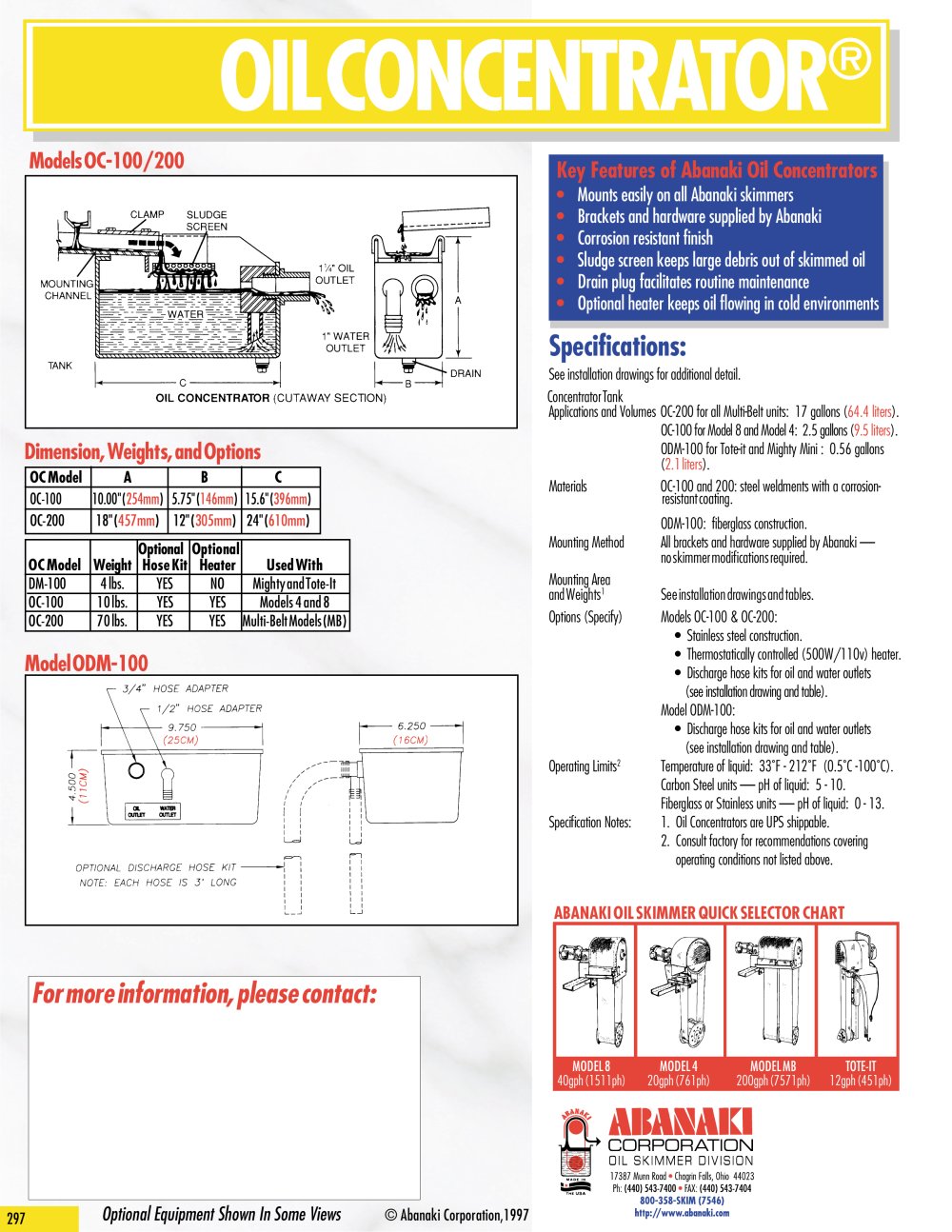

Models OC-100/200
Oil Concentrator™ - 17917 OIL CONCENTRATOR ®
Key Features of Abanaki Oil Concentrators
•Mounts easily on all Abanaki skimmers•Brackets and hardware supplied by Abanaki•Corrosion resistant finish•Sludge screen keeps large debris out of skimmed oil•Drain plug facilitates routine maintenance•Optional heater keeps oil flowing in cold environments
Specifications:
See installation drawings for additional detail.Applications and VolumesOC-200 for all Multi-Belt units: 17 gallons (64.4 liters).OC-100 for Model 8 and Model 4: 2.5 gallons (9.5 liters).ODM-100 for Tote-it and Mighty Mini : 0.56 gallonsMaterialsOC-100 and 200: steel weldments with a corrosion-ODM-100: fiberglass construction.Mounting MethodAll brackets and hardware supplied by Abanaki —Mounting Area Options (Specify)Models OC-100 & OC-200:• Stainless steel construction. • Thermostatically controlled (500W/110v) heater. • Discharge hose kits for oil and water outlets(see installation drawing and table).Model ODM-100:• Discharge hose kits for oil and water outlets(see installation drawing and table).Operating Limits Concentrator Tank(2.1 liters).resistant coating.no skimmer modifications required.and WeightsDimension, Weights, and OptionsModel ODM-100
OC ModelABC OC-10010.00" (254mm)5.75" (146mm)15.6" (396mm) OC-20018" (457mm)12" (305mm)24" (610mm) Optional Optional OC ModelWeightHose KitHeaterUsed With DM-1004 lbs.YESNOMighty and Tote-ItOC-10010 lbs.YESYESModels 4 and 8OC-20070 lbs.YESYESMulti-Belt Models (MB)1 See installation drawings and tables.
2 Temperature of liquid: 33ËšF - 212ËšF (0.5ËšC -100ËšC). Carbon Steel units — pH of liquid: 5 - 10. Fiberglass or Stainless units — pH of liquid: 0 - 13.Specification Notes:1. Oil Concentrators are UPS shippable.2. Consult factory for recommendations covering operating conditions not listed above.
