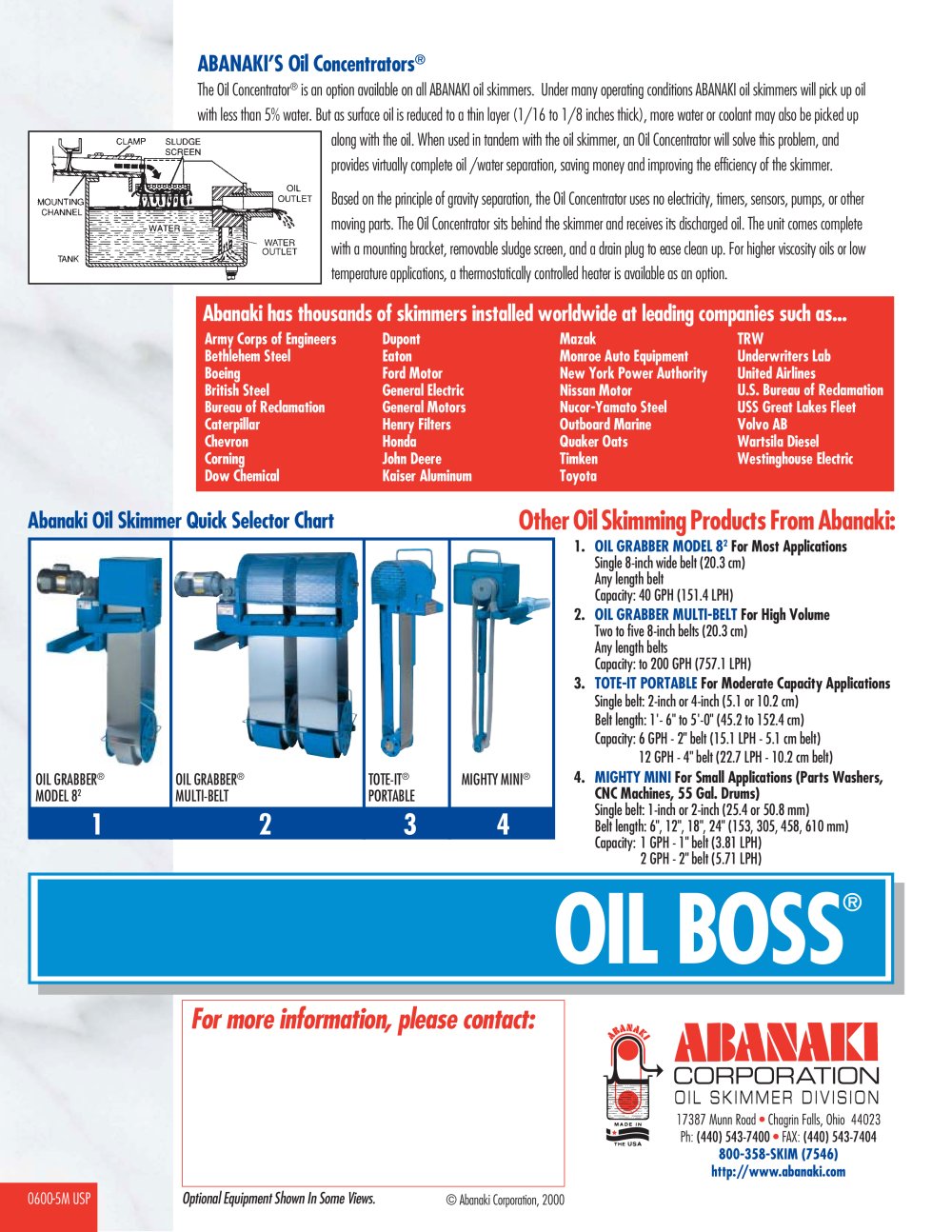

ABANAKI'S Oil Concentrators®
The Oil Concentrator® is an option available on all ABANAKI oil skimmers. Under many operating conditions ABANAKI oil skimmers will pick up oil with less than 5% water. But as surface oil is reduced to a thin layer (1/16 to 1/8 inches thick), more water or coolant may also be picked up along with the oil. When used in tandem with the oil skimmer, an Oil Concentrator will solve this problem, and provides virtually complete oil /water separation, saving money and improving the efficiency of the skimmer.
Based on the principle of gravity separation, the Oil Concentrator uses no electricity, timers, sensors, pumps, or other moving parts. The Oil Concentrator sits behind the skimmer and receives its discharged oil. The unit comes complete with a mounting bracket, removable sludge screen, and a drain plug to ease clean up. For higher viscosity oils or low temperature applications, a thermostatically controlled heater is available as an option.
Abanaki has thousands of skimmers installed worldwide at leading companies such as...
Army Corps of Engineers
Dupont
Mazak
TRW
Bethlehem Steel
Eaton
Monroe Auto Equipment
Underwriters Lab
Boeing
Ford Motor
New York Power Authority
United Airlines
British Steel
General Electric
Nissan Motor
U.S. Bureau of Reclamation
Bureau of Reclamation
General Motors
Nucor-Yamato Steel
USS Great Lakes Fleet
Caterpillar
Henry Filters
Outboard Marine
Volvo AB
Chevron
Honda
Quaker Oats
Wartsila Diesel
Corning
John Deere
Timken
Westinghouse Electric
Dow Chemical
Kaiser Aluminum
Toyota
Other Oil Skimming Products From Abanaki:
1. OIL GRABBER MODEL 82 For Most Applications
Single 8-inch wide belt (20.3 cm) Any length belt Capacity: 40 GPH (151.4 LPH)
2. OIL GRABBER MULTI-BELT For High Volume
Two to five 8-inch belts (20.3 cm) Any length belts
Capacity: to 200 GPH (757.1 LPH)
3. TOTE-IT PORTABLE For Moderate Capacity Applications
Single belt: 2-inch or 4-inch (5.1 or 10.2 cm) Belt length: 1'- 6" to 5'-0" (45.2 to 152.4 cm) Capacity: 6 GPH - 2" belt (15.1 LPH - 5.1 cm belt) 12 GPH - 4" belt (22.7 LPH - 10.2 cm belt)
4. MIGHTY MINI For Small Applications (Parts Washers, CNC Machines, 55 Gal. Drums) Single belt: 1-inch or 2-inch (25.4 or 50.8 mm) Belt length: 6", 12", 18", 24" (153, 305, 458, 610 mm) Capacity: 1 GPH - 1" belt (3.81 LPH)
2 GPH - 2" belt (5.71 LPH)
Abanaki Oil Skimmer Quick Selector Chart
OIL BOSS
m MARMICI
CORPORATION
□ IL SKIMMER DIVISION 17387 Munn Road • Chagrin Falls, Ohio 44023 Ph: (440) 543-7400 • FAX: (440) 543-7404 800-358-SKIM (7546) http://www.abanaki.com
Optional Equipment Shown In Some Views.
0600-5M USP
© Abanaki Corporation, 2000
