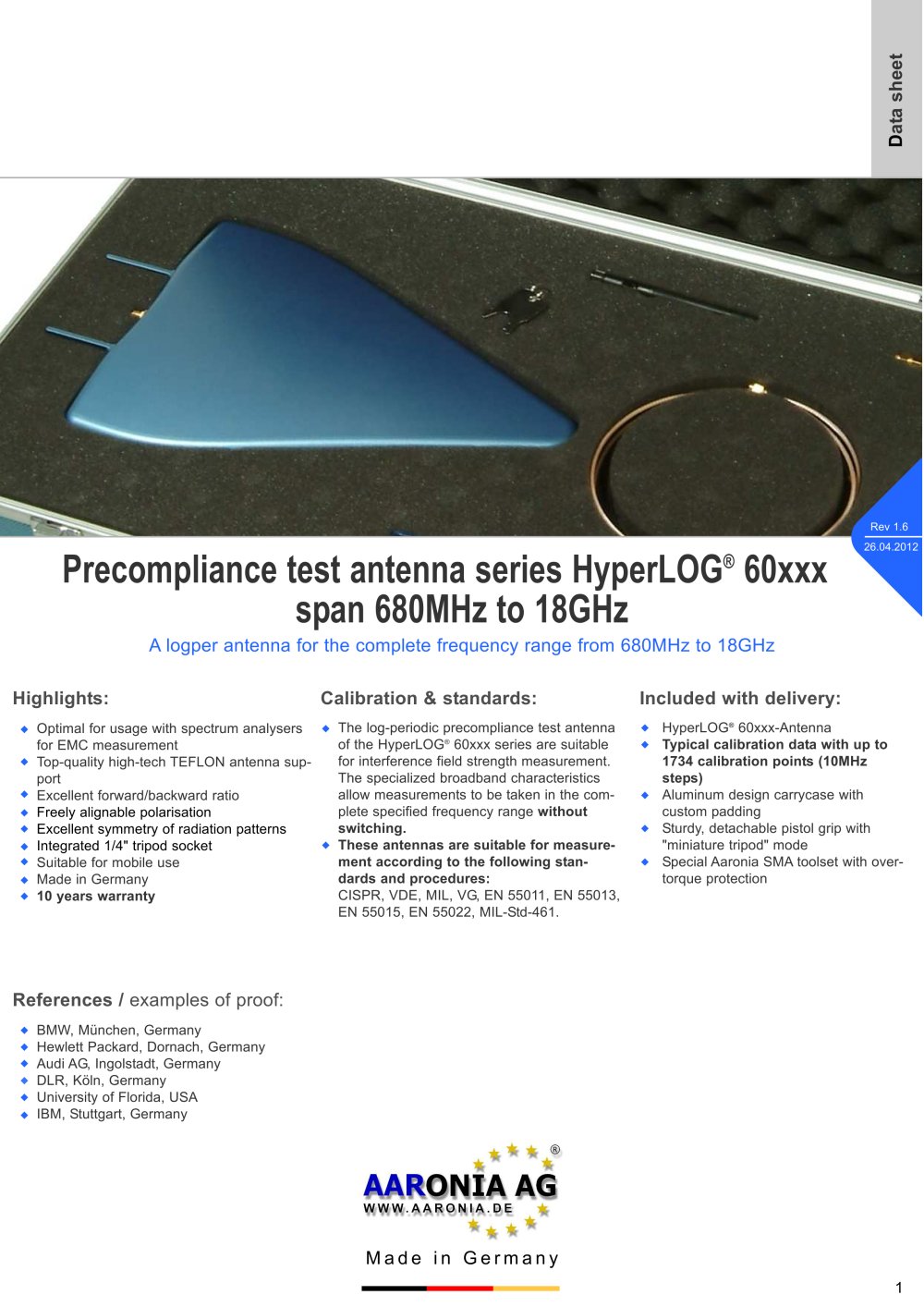

Broadband EMC Test Antenna series HyperLOG® 60xxx (680MHz-18GHz) - 58710 Precompliance test antenna series HyperLOG

®

60xxxspan 680MHz to 18GHz

Alogper antenna for the complete frequency range from 680MHz to 18GHz Highlights: Calibration & standards: Included with delivery:

Aluminum design carrycase with custom padding Sturdy, detachable pistol grip with "miniature tripod" mode SpecialAaronia SMAtoolset with over-torque protection Optimal for usage with spectrum analysers for EMC measurement Top-quality high-tech TEFLON antenna sup- port Excellent forward/backward ratio Freely alignable polarisation Excellent symmetry of radiation patterns Integrated 1/4" tripod socketSuitable for mobile useMade in Germany The log-periodic precompliance test antennaof the HyperLOG HyperLOG
® 60xxx-Antenna 10 years warranty
® 60xxx series are suitablefor interference field strength measurement.The specialized broadband characteristicsallow measurements to be taken in the com- plete specified frequency range Typical calibration data with up to 1734 calibration points (10MHz steps) withoutswitching.These antennas are suitable for measure-ment according to the following stan- dards and procedures: CISPR, VDE, MIL, VG, EN 55011, EN 55013, EN 55015, EN 55022, MIL-Std-461.

References / examples of proof:

BMW, München, GermanyHewlett Packard, Dornach, Germany AudiAG, Ingolstadt, Germany DLR, Köln, Germany University of Florida, USA IBM, Stuttgart, Germany
