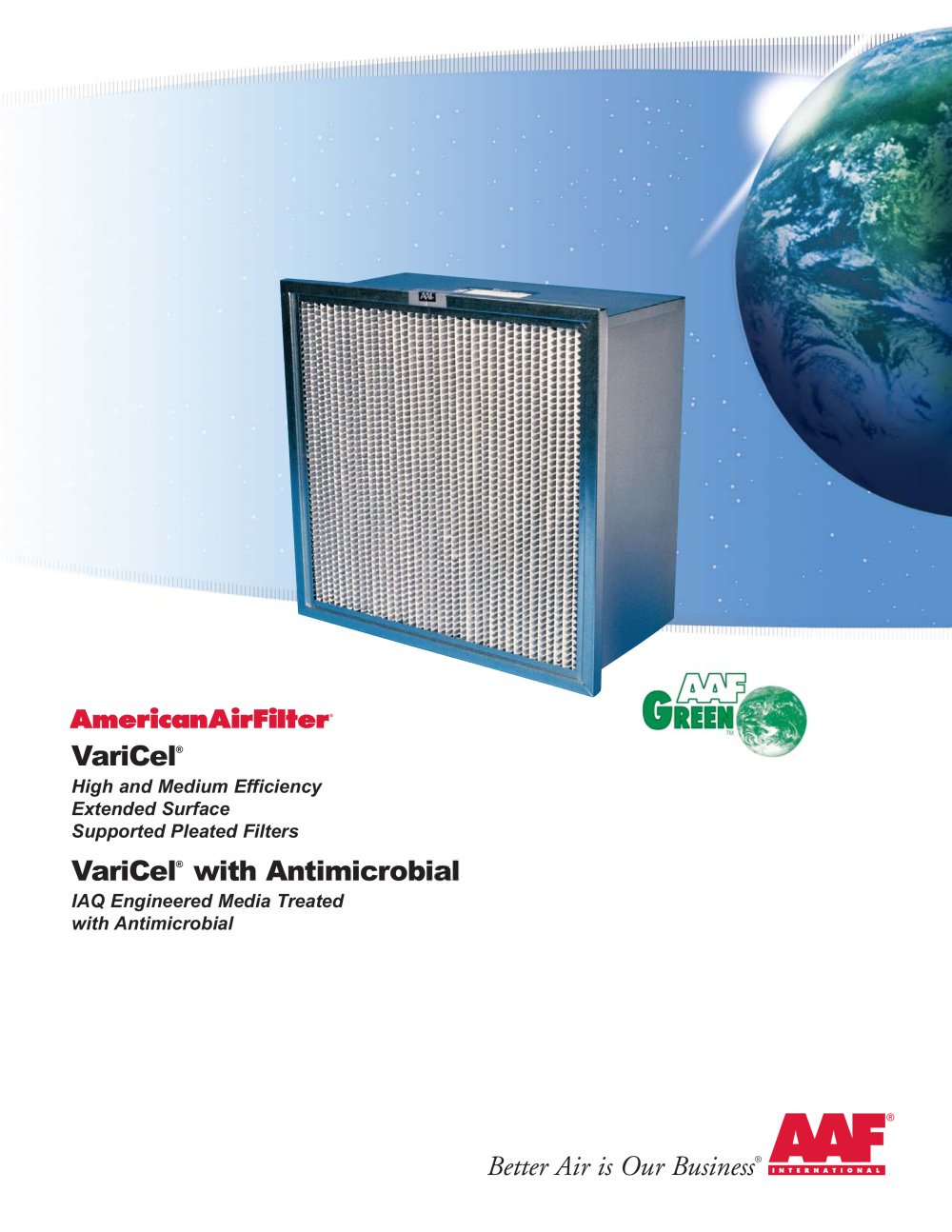

VariCel® High and Medium Efficiency Extended Surface Supported Pleated Filters VariCel® with Antimicrobial IAQ Engineered Media Treated with Antimicrobial Better Air is Our Business®

Open the catalog to page 1

Designed to Improve Indoor Air Quality VariCel filters with antimicrobial are designed specifically to improve Indoor Air Quality (IAQ). Air filters are designed to trap and concentrate particulate air contaminants including viable fungal and bacterial spores. The presence of antimicrobial preservative in the filter media is intended to preserve the integrity of the media throughout the useful life of the filter. Antimicrobial preservatives are not meant to increase the efficiency of the filter, nor to kill microorganisms "on the fly" as they pass through a filter. Antimicrobial is EPA...

Open the catalog to page 2

3 Built Rugged for Dependable Performance Corrugated Aluminum Separators with Rolled Edges maintain uniform pleat spacing for optimum airflow. The separators are rolled to eliminate sharp edges, preventing media damage during shipping and personal injury during installation. Crimped Rear Flanges (SH) are rolled over and riveted to add strength, eliminate sharp edges, and prevent bypass leakage. Media Pack Restraint Steel brace on air leaving side adds support to the media pack. Media Pack Sealant — A layer of high efficiency media seals the media pack into the cell sides. The media sealant...

Open the catalog to page 3

VariCel® and VariCel® with Antimicrobial Operating Data MERV 13 12" Deep Filters 6" Deep Filters Filter Face Velocity (FPM) Initial Resistance (in. w.g.) Initial Resistance vs. Filter Face Velocity MERV 14 MERV 14 XL/MERV 13 MERV 11 MERV 11 XL MERV 14 MERV 11 12" deep filters are rated at 500 FPM filter face velocity. 6" deep filters are rated at 250 FPM filter face velocity. Recommended final resistance for all VariCel filters is 1.5" w.g. Operating Temperature Limits VariCel Model Temperature Limit Types SH, DH, XL 350°F 177°C Type HT-500 500°F 260°C Type HT-725 750°F 385°C Type HT-900...
