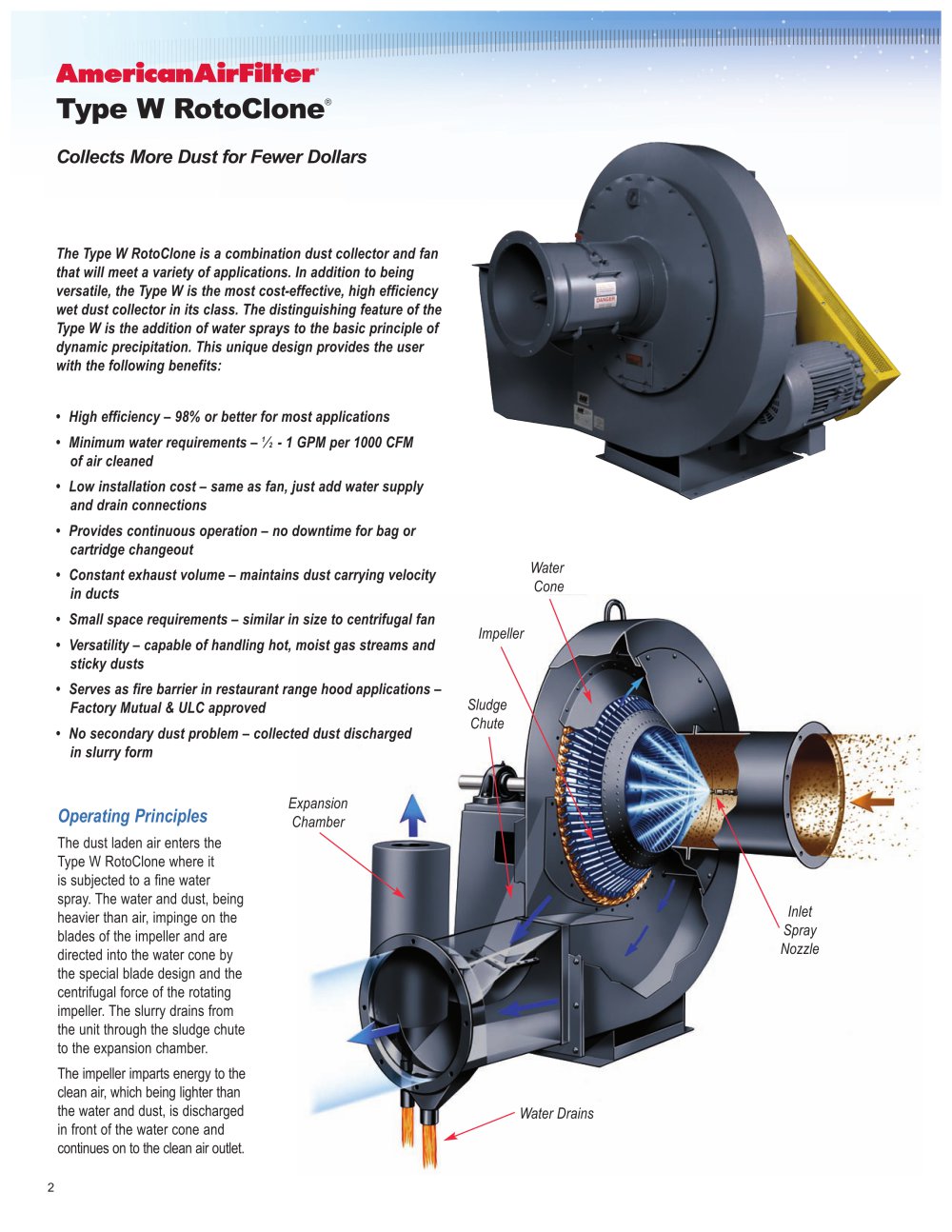

Type W RotoClone® The food quality design Type W RotoClone is not designed to be used as process equipment as it does not meet 3A Sanitary Standards nor FDA construction standards. The motor mount was designed to drain completely. There are no corners on the housing wrapper. At the housing panel discharge, a welded panel is added to seal the pocket. The inlet housing uses a tension clamp for quick access and a positive seal. Inlet Housing The inlet housing on the food quality design has a quick release tension clamp rather than the standard latch. This provides a positive seal and easy access. Arrangement 9 Motor Mount The food quality design motor mount is specially constructed to allow for complete drainage after wash down. Housing Wrapper The food quality design housing wrapper is fitted to the ends of the front and rear panels on the Type W RotoClone and solid welded. This eliminates the corners that are normally formed by recessing the housing wrapper between the front and rear panels. Housing Wrapper Panel The wrapper panel on the food quality design Type W RotoClone has a smooth welded panel at the discharge to seal the pocket rather than the standard flat area. The bearing pedestal is designed for easy wash down with round pipe for reinforcement. Bearing Pedestal To eliminate flat surfaces that attract material build-up, the food quality design uses 12" plate with schedule 40 pipe rather than standard reinforced bearing plate with angle iron stiffeners. AAF has a policy of continuous product research and improvement and reserves the right to change design and specifications without notice. 10300 Ormsby Park Place Suite 600 Louisville, Kentucky 40223-6169 www.aafintl.com Customer Service 800.477.1214 Fax 800.254.3019 ISO Certified Firm © 2009 AAF International The USGBC Member logo is a trademark owned by the APC-1-518E AUG ’09 QG 2M U.S. Green Building Council and is used by permission.
