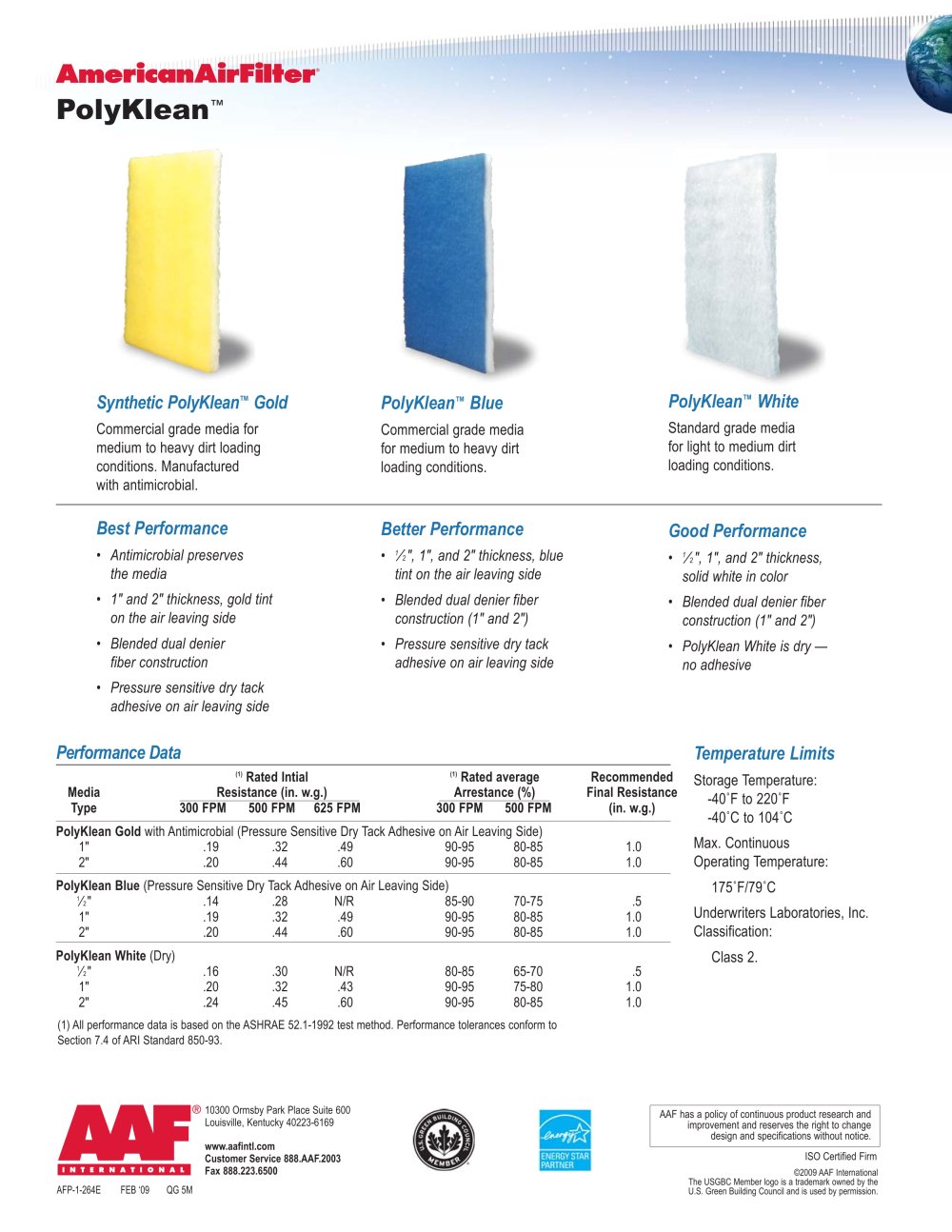

PolyKlean™ (1) All performance data is based on the ASHRAE 52.1-1992 test method. Performance tolerances conform to Section 7.4 of ARI Standard 850-93. Performance Data (1) Rated Intial (1) Rated average Recommended Media Resistance (in. w.g.) Arrestance (%) Final Resistance Type 300 FPM 500 FPM 625 FPM 300 FPM 500 FPM (in. w.g.) PolyKlean Gold with Antimicrobial (Pressure Sensitive Dry Tack Adhesive on Air Leaving Side) 1" .19 .32 .49 90-95 80-85 1.0 2" .20 .44 .60 90-95 80-85 1.0 PolyKlean Blue (Pressure Sensitive Dry Tack Adhesive on Air Leaving Side) 12" .14 .28 N/R 85-90 70-75 .5 1" .19 .32 .49 90-95 80-85 1.0 2" .20 .44 .60 90-95 80-85 1.0 PolyKlean White (Dry) 12" .16 .30 N/R 80-85 65-70 .5 1" .20 .32 .43 90-95 75-80 1.0 2" .24 .45 .60 90-95 80-85 1.0 PolyKlean™ Blue Commercial grade media for medium to heavy dirt loading conditions. Better Performance • 12", 1", and 2" thickness, blue tint on the air leaving side • Blended dual denier fiber construction (1" and 2") • Pressure sensitive dry tack adhesive on air leaving side Synthetic PolyKlean™ Gold Commercial grade media for medium to heavy dirt loading conditions. Manufactured with antimicrobial. Best Performance • Antimicrobial preserves the media • 1" and 2" thickness, gold tint on the air leaving side • Blended dual denier fiber construction • Pressure sensitive dry tack adhesive on air leaving side PolyKlean™ White Standard grade media for light to medium dirt loading conditions. Good Performance • 12", 1", and 2" thickness, solid white in color • Blended dual denier fiber construction (1" and 2") • PolyKlean White is dry — no adhesive Temperature Limits Storage Temperature: -40¢ªF to 220¢ªF -40¢ªC to 104¢ªC Max. Continuous Operating Temperature: 175¢ªF/79¢ªC Underwriters Laboratories, Inc. Classification: Class 2. AAF has a policy of continuous product research and improvement and reserves the right to change design and specifications without notice. 10300 Ormsby Park Place Suite 600 Louisville, Kentucky 40223-6169 www.aafintl.com Customer Service 888.AAF.2003 Fax 888.223.6500 ISO Certified Firm © 2009 AAF International The USGBC Member logo is a trademark owned by the AFP-1-264E FEB ‘09 QG 5M U.S. Green Building Council and is used by permission.
