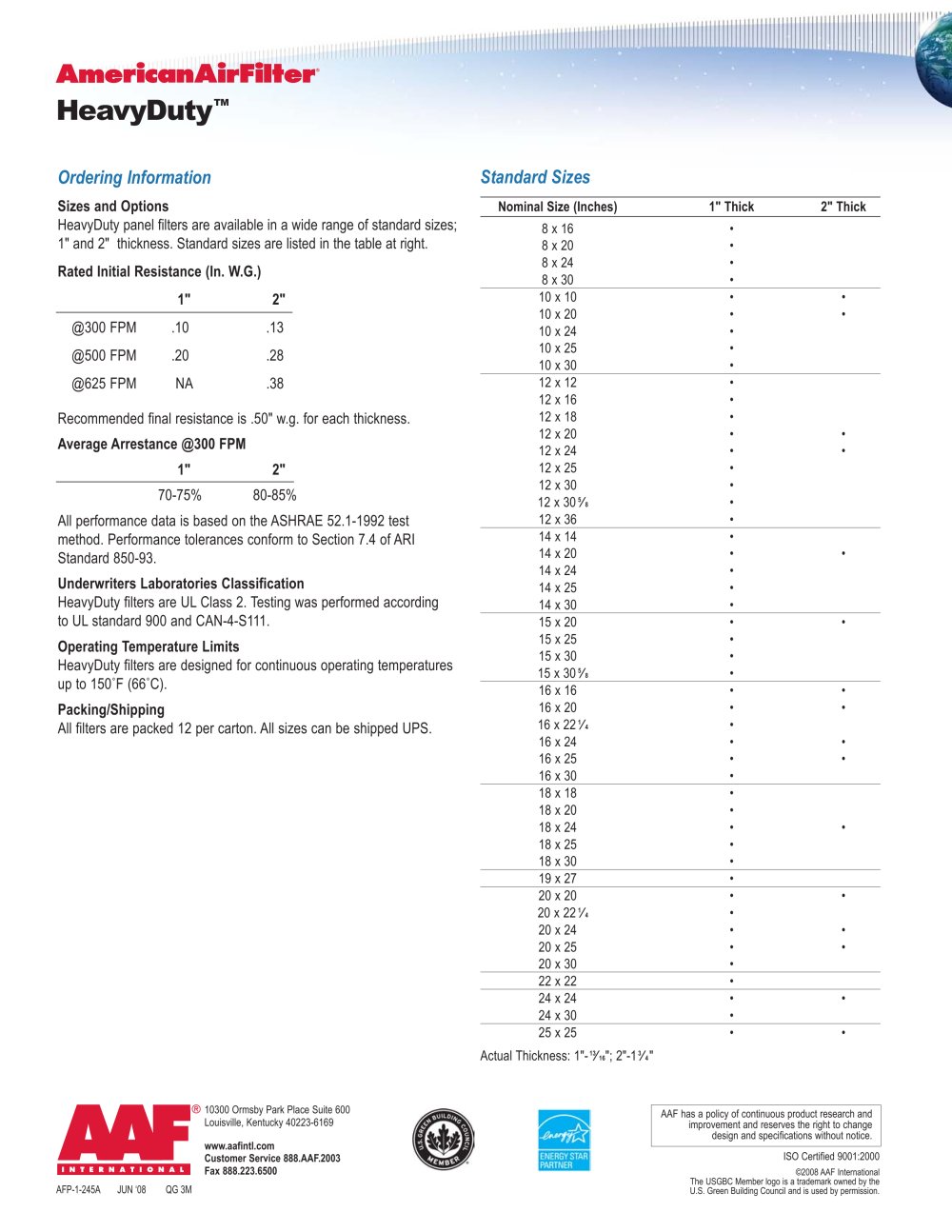

HeavyDuty

TM

Ordering Information Standard Sizes

Sizes and Options

Nominal Size (Inches) 1" Thick2" Thick

HeavyDuty panel filters are available in a wide range of standard sizes; 1" and 2" thickness. Standard sizes are listed in the table at right. Rated Initial Resistance (In. W.G.) 1"2"

8 x 16 •8 x 20 • 8 x 24• 8 x 30 •10 x 10 •• 10 x 20 •• 10 x 24 • 10 x 25 •

Average Arrestance @300 FPM 1"2" @300 FPM.10.13 @500 FPM.20.28 @625 FPM NA .38Recommended final resistance is .50" w.g. for each thickness. 70-75%80-85%All performance data is based on the ASHRAE 52.1-1992 testmethod. Performance tolerances conform to Section 7.4 of ARI Standard 850-93.

10 x 30 • 12 x 12 • 12 x 16 • 12 x 18 • 12 x 20•• 12 x 24•• 12 x 25•12 x 30•12 x 30

Underwriters Laboratories Classification HeavyDuty filters are UL Class 2. Testing was performed according to UL standard 900 and CAN-4-S111. Operating Temperature Limits HeavyDuty filters are designed for continuous operating temperatures up to 150ËšF (66ËšC). Packing/Shipping All filters are packed 12 per carton. All sizes can be shipped UPS.

5 �
8 • 12 x 36• 14 x 14• 14 x 20•• 14 x 24• 14 x 25• 14 x 30• 15 x 20•• 15 x 25• 15 x 30• 15 x 30
5 �
8 •16 x 16•• 16 x 20••16 x 22
1 �
4 •16 x 24•• 16 x 25•• 16 x 30• 18 x 18• 18 x 20• 18 x 24•• 18 x 25• 18 x 30• 19 x 27• 20 x 20••20 x 22
1 �
4 •20 x 24•• 20 x 25•• 20 x 30• 22 x 22• 24 x 24•• 24 x 30• 25 x 25••Actual Thickness: 1"-
13 �
16 "; 2"-1
3 �
4 "
10300 Ormsby Park Place Suite 600Louisville, Kentucky 40223-6169 AAF has a policy of continuous product research andimprovement and reserves the right to change design and specifications without notice. ISO Certified 9001:2000 www.aafintl.comCustomer Service888.AAF.2003 Fax 888.223.6500 © 2008 AAF InternationalThe USGBC Member logo is a trademark owned by the U.S. Green Building Council and is used by permission. AFP-1-245A JUN ‘08 QG 3M
