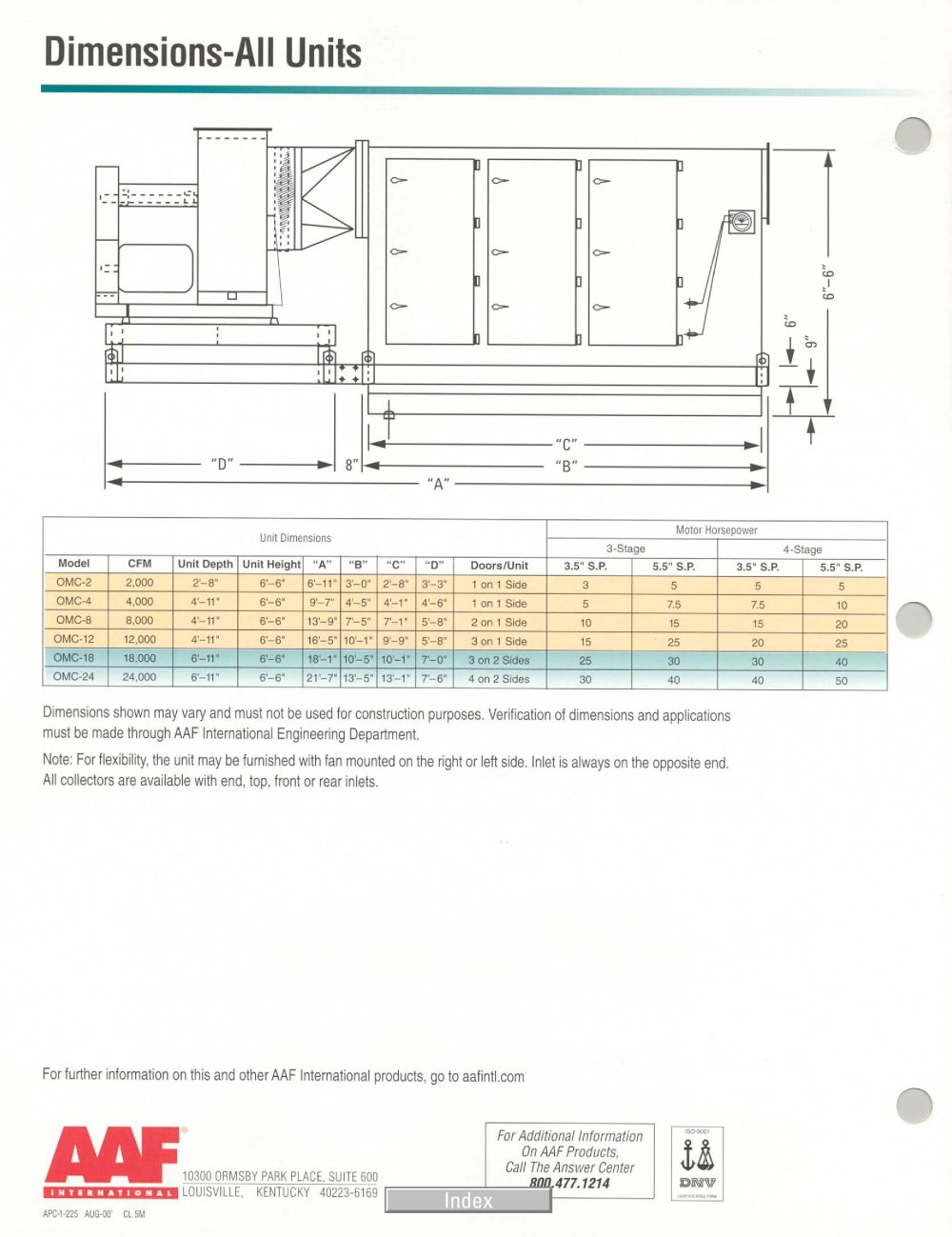

Dimensions-All Units

Unit Dimensions

Motor Horsepower

3-Stage

4-Stage

Model

CFM

Unit Depth

Unit Height

"A"

"B"

"C"

..p..

Doors/Unit

3.5" S.P.

5.5" S.P.

3.5" S.P.

5.5" S.P.

OMC-2

2.000

2-8"

6-6"

6-11 "

3-0"

2-8"

3-3"

1 on 1 Side

OMC-4

4,000

4'-11"

6'-6"

9-7"

4'-5"

4'-1"

4'-6"

1 on 1 Side

7.5

OMC-8

8,000

4'-11"

6-6"

13-9"

7'-5"

7'-1 "

5'-8"

2 on 1 Side

OMC-12

12,000

4'-11"

6-6"

16-5"

10—1"

9-9"

5-8"

3 on 1 Side

OMC-18

18,000

6-11"

6'-6"

18-1"

10-5"

10-1"

7"-0"

3 on 2 Sides

OMC-24

24.000

6-11"

6-6"

21-7"

13-5"

13-1"

7'-6"

4 on 2 Sides

Dimensions shown may vary and must not be used for construction purposes. Verification of dimensions and applications must be made through AAF International Engineering Department.

Note: For flexibility, the unit may be furnished with fan mounted on the right or left side. Inlet is always on the opposite end. All collectors are available with end, top, front or rear inlets.

For further information on this and other AAF International products, go to aafintl.com
