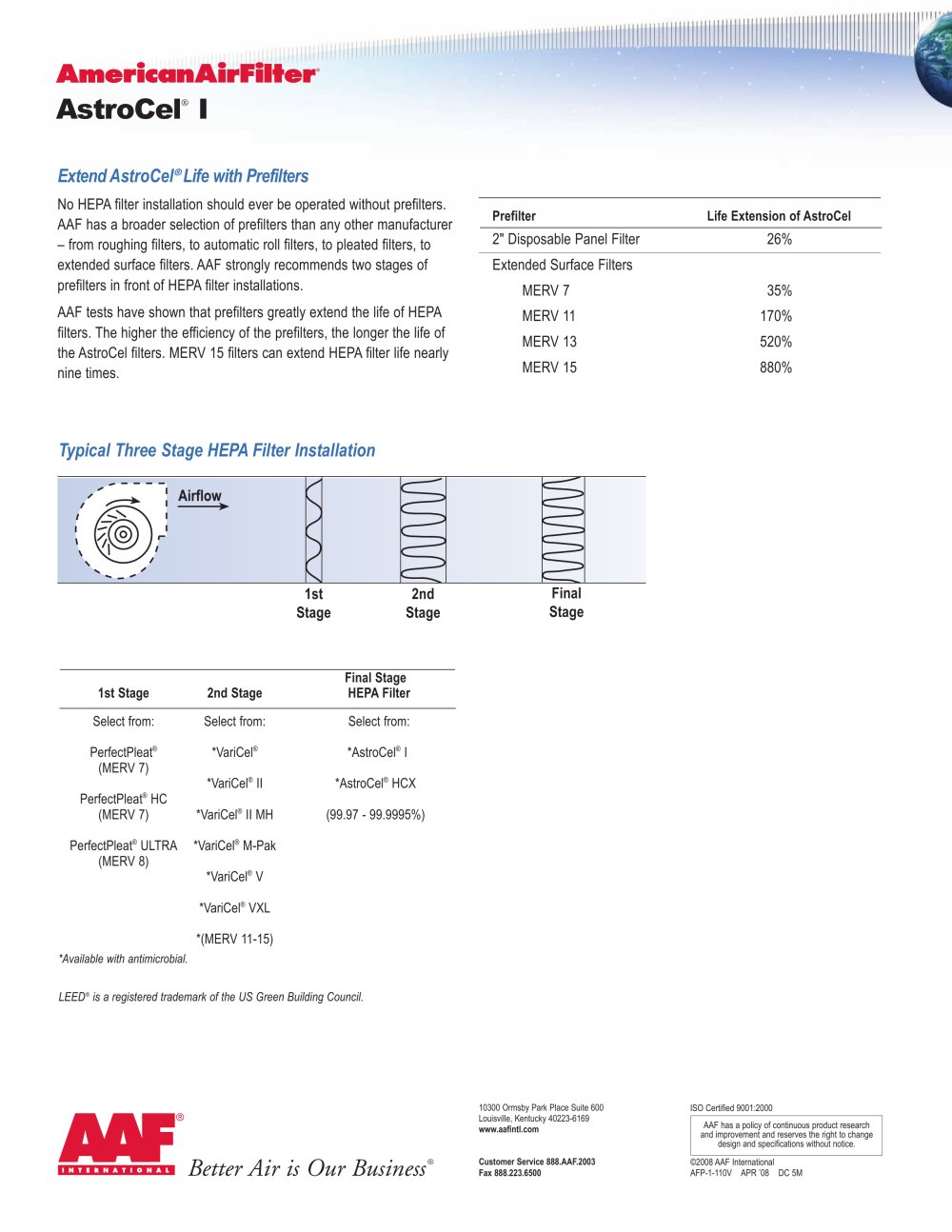

AstroCel

®

I

Extend AstroCel

®

Life with Prefilters

No HEPA filter installation should ever be operated without prefilters.AAF has a broader selection of prefilters than any other manufacturer – from roughing filters, to automatic roll filters, to pleated filters, to extended surface filters. AAF strongly recommends two stages of prefilters in front of HEPA filter installations.AAF tests have shown that prefilters greatly extend the life of HEPAfilters. The higher the efficiency of the prefilters, the longer the life of the AstroCel filters. MERV 15 filters can extend HEPA filter life nearly nine times.

PrefilterLife Extension of AstroCel

2" Disposable Panel Filter26%Extended Surface FiltersMERV 735% MERV 11170% MERV 13520% MERV 15880%

Typical Three Stage HEPA Filter Installation

1st Stage2nd StageFinal Stage

Final Stage1st Stage2nd Stage HEPA Filter Select from:Select from:Select from:PerfectPleat
® *VariCel
® *AstroCel
® I(MERV 7)*VariCel
® ® II*AstroCel
® HCXPerfectPleat HC(MERV 7)*VariCel
® II MH(99.97 - 99.9995%)PerfectPleat
® ULTRA*VariCel
® M-Pak(MERV 8)*VariCel
® V*VariCel
® VXL*(MERV 11-15)
*Available with antimicrobial. LEED ® is a registered trademark of the US Green Building Council. ISO Certified 9001:2000 10300 Ormsby Park Place Suite 600Louisville, Kentucky 40223-6169 www.aafintl.comCustomer Service888.AAF.2003 Fax 888.223.6500 AAF has a policy of continuous product researchand improvement and reserves the right to changedesign and specifications without notice.

Better Air is Our Business

® © 2008 AAF InternationalAFP-1-110V APR ’08 DC 5M
