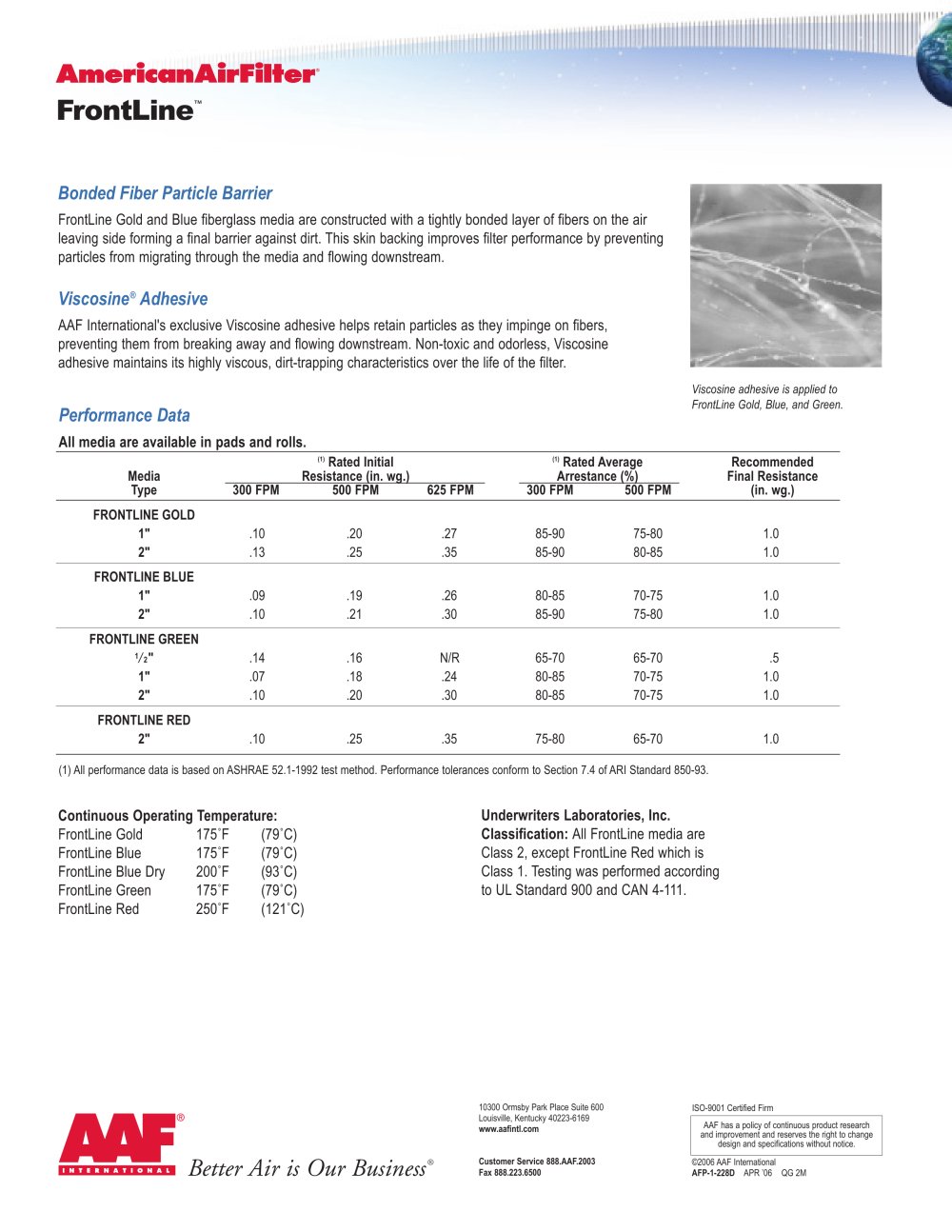

Better Air is Our Business ® AAF has a policy of continuous product research and improvement and reserves the right to change design and specifications without notice. 10300 Ormsby Park Place Suite 600 Louisville, Kentucky 40223-6169 www.aafintl.com Customer Service 888.AAF.2003 Fax 888.223.6500 ISO-9001 Certified Firm ©2006 AAF International AFP-1-228D APR ’06 QG 2M FrontLine™ (1) Rated Initial (1) Rated Average Recommended Media Resistance (in. wg.) Arrestance (%) Final Resistance Type 300 FPM 500 FPM 625 FPM 300 FPM 500 FPM (in. wg.) FRONTLINE GOLD 1" .10 .20 .27 85-90 75-80 1.0 2" .13 .25 .35 85-90 80-85 1.0 FRONTLINE BLUE 1" .09 .19 .26 80-85 70-75 1.0 2" .10 .21 .30 85-90 75-80 1.0 FRONTLINE GREEN 1 2" .14 .16 N/R 65-70 65-70 .5 1" .07 .18 .24 80-85 70-75 1.0 2" .10 .20 .30 80-85 70-75 1.0 FRONTLINE RED 2" .10 .25 .35 75-80 65-70 1.0 Performance Data All media are available in pads and rolls. (1) All performance data is based on ASHRAE 52.1-1992 test method. Performance tolerances conform to Section 7.4 of ARI Standard 850-93. Continuous Operating Temperature: FrontLine Gold 175°F (79°C) FrontLine Blue 175°F (79°C) FrontLine Blue Dry 200°F (93°C) FrontLine Green 175°F (79°C) FrontLine Red 250°F (121°C) Underwriters Laboratories, Inc. Classification: All FrontLine media are Class 2, except FrontLine Red which is Class 1. Testing was performed according to UL Standard 900 and CAN 4-111. Bonded Fiber Particle Barrier FrontLine Gold and Blue fiberglass media are constructed with a tightly bonded layer of fibers on the air leaving side forming a final barrier against dirt. This skin backing improves filter performance by preventing particles from migrating through the media and flowing downstream. Viscosine® Adhesive AAF International's exclusive Viscosine adhesive helps retain particles as they impinge on fibers, preventing them from breaking away and flowing downstream. Non-toxic and odorless, Viscosine adhesive maintains its highly viscous, dirt-trapping characteristics over the life of the filter. Viscosine adhesive is applied to FrontLine Gold, Blue, and Green.
