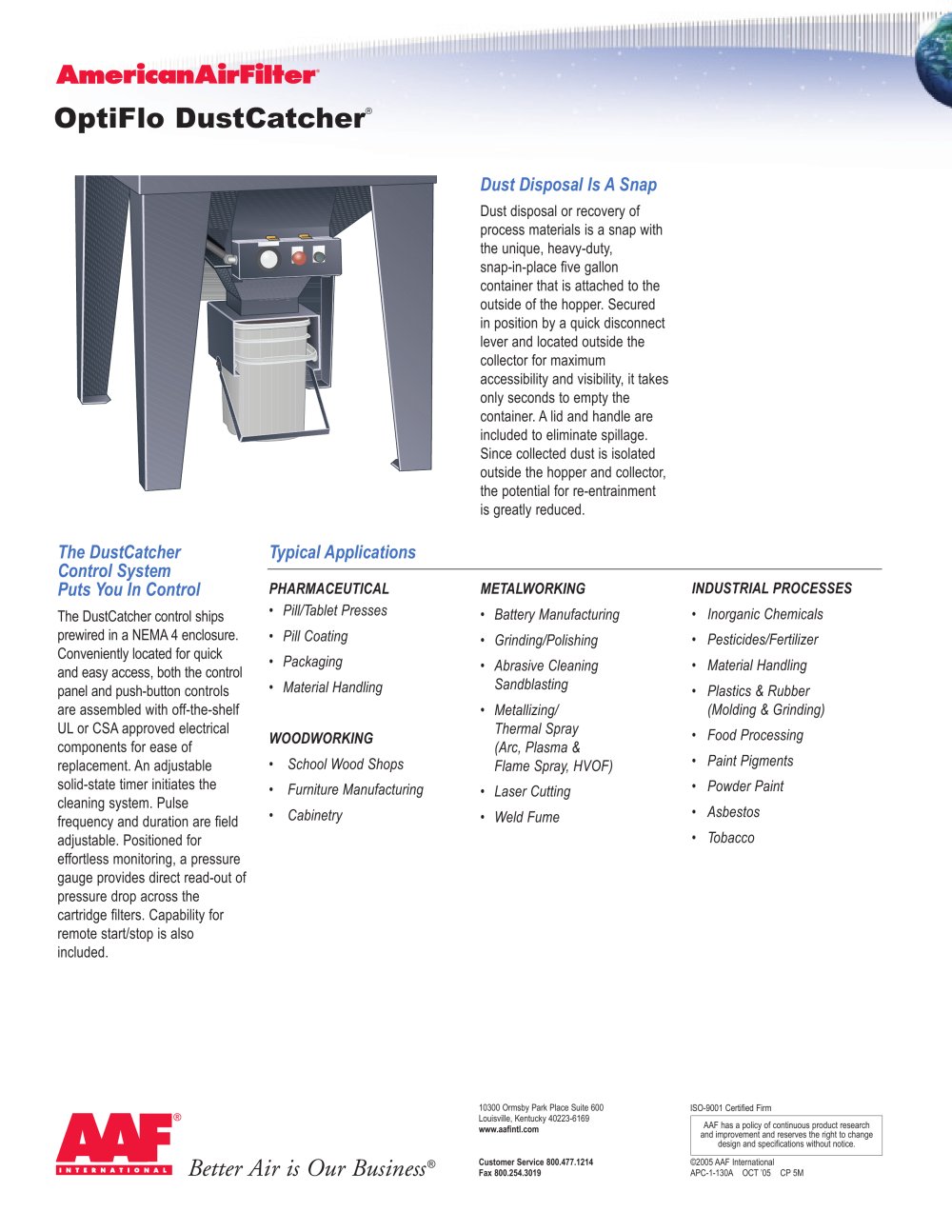

AmericanAirFilter OptiFlo DustCatcher

Dust disposal or recovery of process materials is a snap with the unique, heavy-duty, snap-in-place five gallon container that is attached to the outside of the hopper. Secured in position by a quick disconnect lever and located outside the collector for maximum accessibility and visibility, it takes only seconds to empty the container. A lid and handle are included to eliminate spillage. Since collected dust is isolated outside the hopper and collector, the potential for re-entrainment is greatly reduced.

The DustCatcher control ships prewired in a NEMA4 enclosure. Conveniently located for quick and easy access, both the control panel and push-button controls are assembled with off-the-shelf UL or CSA approved electrical components for ease of replacement. An adjustable solid-state timer initiates the cleaning system. Pulse frequency and duration are field adjustable. Positioned for effortless monitoring, a pressure gauge provides direct read-out of pressure drop across the cartridge filters. Capability for remote start/stop is also included.
