Durashield cartridge filters - AAF International - #4

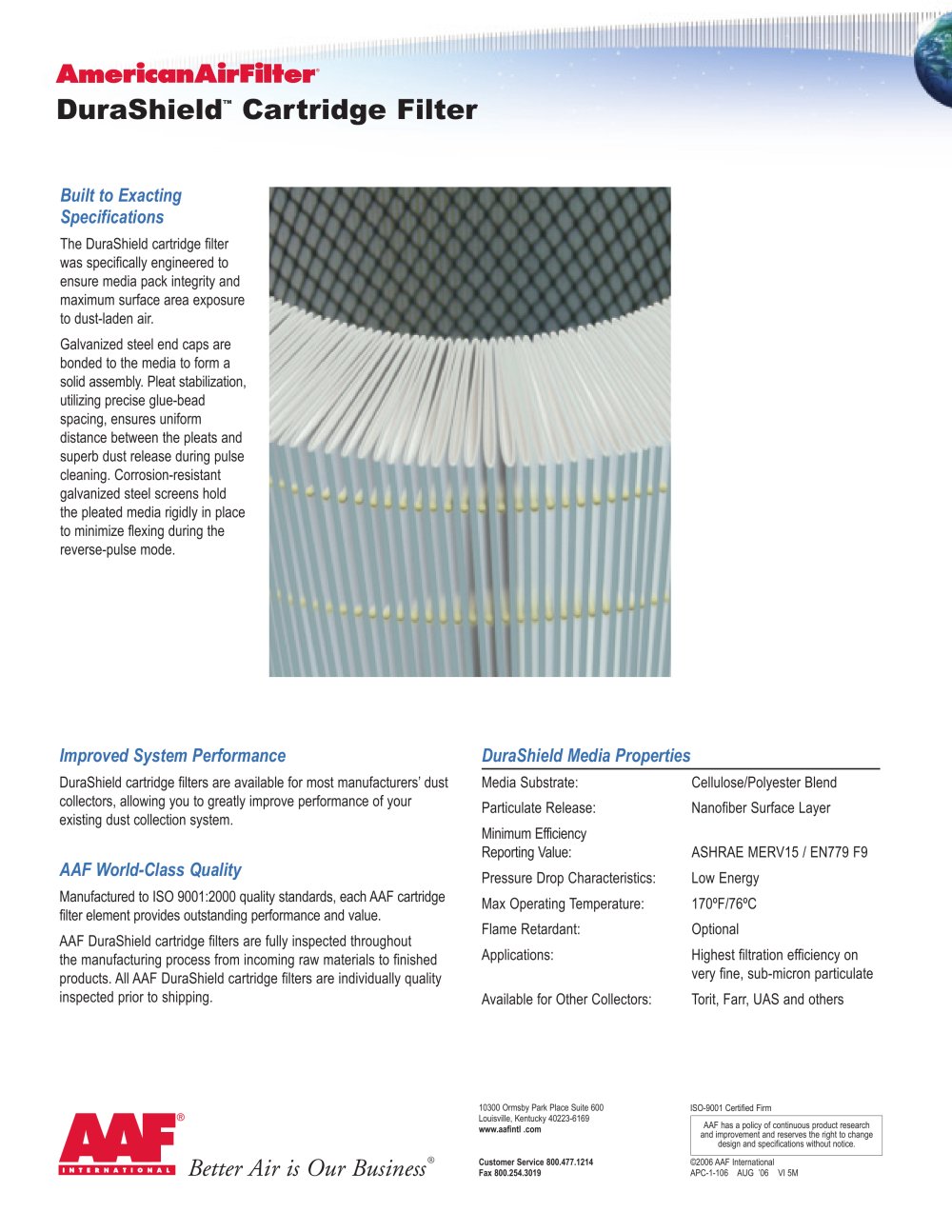

DuraShield™ Cartridge Filter

The DuraShield cartridge filter was specifically engineered to ensure media pack integrity and maximum surface area exposure to dust-laden air.

Galvanized steel end caps are bonded to the media to form a solid assembly. Pleat stabilization, utilizing precise glue-bead spacing, ensures uniform distance between the pleats and superb dust release during pulse cleaning. Corrosion-resistant galvanized steel screens hold the pleated media rigidly in place to minimize flexing during the reverse-pulse mode.

Media Substrate:

DuraShield cartridge filters are available for most manufacturers' dust collectors, allowing you to greatly improve performance of your existing dust collection system.

Cellulose/Polyester Blend Nanofiber Surface Layer

ASHRAE MERV15 / EN779 F9

Low Energy

170°F/76°C

Optional

Highest filtration efficiency on very fine, sub-micron particulate

Torit, Farr, UAS and others

Particulate Release:

Minimum Efficiency Reporting Value:

Pressure Drop Characteristics:

Max Operating Temperature:

Flame Retardant:

Applications:

Available for Other Collectors:

Manufactured to ISO 9001:2000 quality standards, each AAF cartridge filter element provides outstanding performance and value.

AAF DuraShield cartridge filters are fully inspected throughout the manufacturing process from incoming raw materials to finished products. All AAF DuraShield cartridge filters are individually quality inspected prior to shipping.

10300 Ormsby Park Place Suite 600 Louisville, Kentucky 40223-6169 www.aafintl .com

ISO-9001 Certified Firm

AAF has a policy of continuous product research and improvement and reserves the right to change design and specifications without notice.

©2006 AAF International APC-1-106 AUG '06 VI 5M
