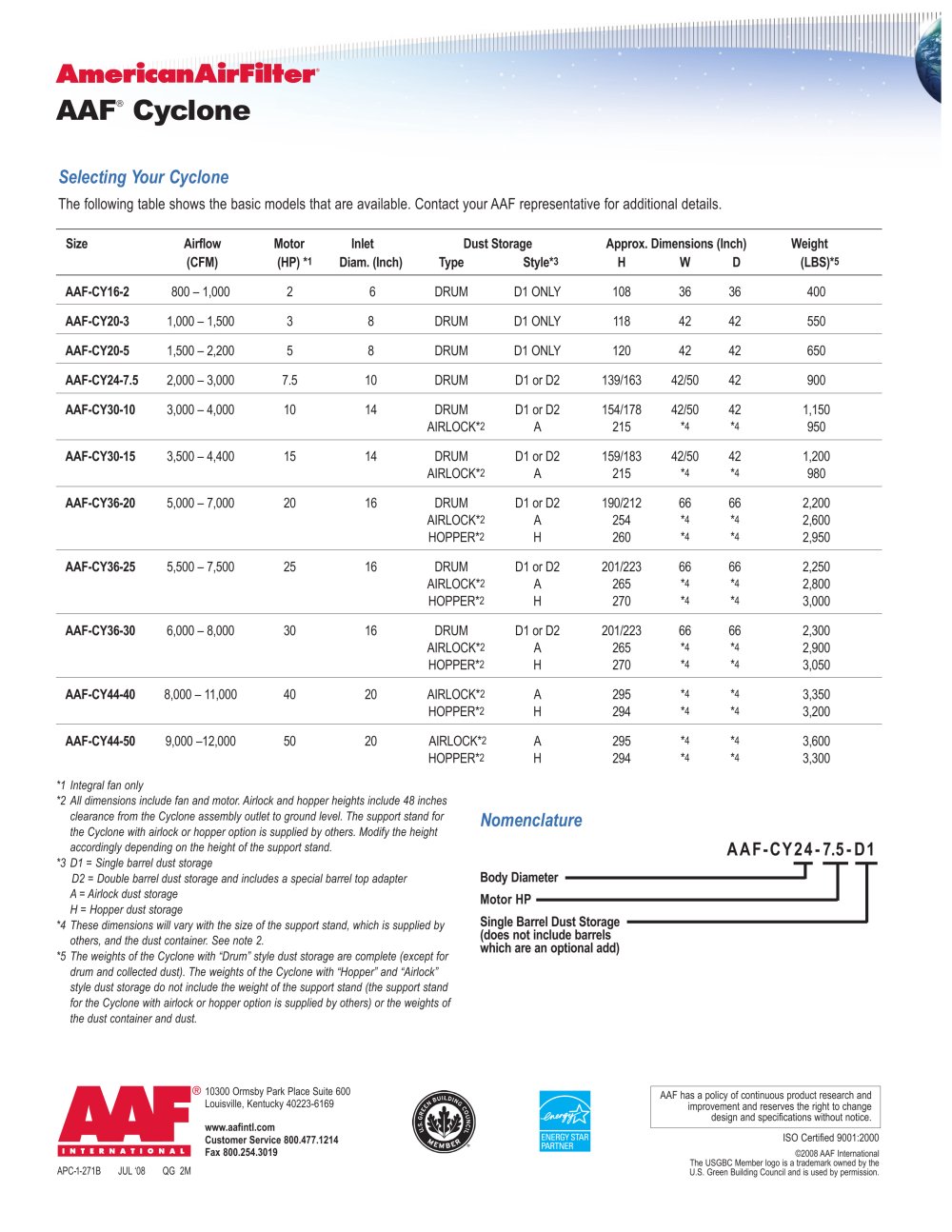

AAF® Cyclone Selecting Your Cyclone The following table shows the basic models that are available. Contact your AAF representative for additional details. Size Airflow Motor Inlet Dust Storage Approx. Dimensions (Inch) Weight (CFM) (HP) *1 Diam. (Inch) Type Style*3 H W D (LBS)*5 AAF-CY16-2 800 – 1,000 2 6 DRUM D1 ONLY 108 36 36 400 AAF-CY20-3 1,000 – 1,500 3 8 DRUM D1 ONLY 118 42 42 550 AAF-CY20-5 1,500 – 2,200 5 8 DRUM D1 ONLY 120 42 42 650 AAF-CY24-7.5 2,000 – 3,000 7.5 10 DRUM D1 or D2 139/163 42/50 42 900 AAF-CY30-10 3,000 – 4,000 10 14 DRUM D1 or D2 154/178 42/50 42 1,150 AIRLOCK*2 A 215 *4 *4 950 AAF-CY30-15 3,500 – 4,400 15 14 DRUM D1 or D2 159/183 42/50 42 1,200 AIRLOCK*2 A 215 *4 *4 980 AAF-CY36-20 5,000 – 7,000 20 16 DRUM D1 or D2 190/212 66 66 2,200 AIRLOCK*2 A 254 *4 *4 2,600 HOPPER*2 H 260 *4 *4 2,950 AAF-CY36-25 5,500 – 7,500 25 16 DRUM D1 or D2 201/223 66 66 2,250 AIRLOCK*2 A 265 *4 *4 2,800 HOPPER*2 H 270 *4 *4 3,000 AAF-CY36-30 6,000 – 8,000 30 16 DRUM D1 or D2 201/223 66 66 2,300 AIRLOCK*2 A 265 *4 *4 2,900 HOPPER*2 H 270 *4 *4 3,050 AAF-CY44-40 8,000 – 11,000 40 20 AIRLOCK*2 A 295 *4 *4 3,350 HOPPER*2 H 294 *4 *4 3,200 AAF-CY44-50 9,000 –12,000 50 20 AIRLOCK*2 A 295 *4 *4 3,600 HOPPER*2 H 294 *4 *4 3,300 *1 Integral fan only *2 All dimensions include fan and motor. Airlock and hopper heights include 48 inches clearance from the Cyclone assembly outlet to ground level. The support stand for the Cyclone with airlock or hopper option is supplied by others. Modify the height accordingly depending on the height of the support stand. *3 D1 = Single barrel dust storage D2 = Double barrel dust storage and includes a special barrel top adapter A = Airlock dust storage H = Hopper dust storage *4 These dimensions will vary with the size of the support stand, which is supplied by others, and the dust container. See note 2. *5 The weights of the Cyclone with “Drum” style dust storage are complete (except for drum and collected dust). The weights of the Cyclone with “Hopper” and “Airlock” style dust storage do not include the weight of the support stand (the support stand for the Cyclone with airlock or hopper option is supplied by others) or the weights of the dust container and dust. Nomenclature AAF-CY24- 7.5-D1 Body Diameter Motor HP Single Barrel Dust Storage (does not include barrels which are an optional add) AAF has a policy of continuous product research and improvement and reserves the right to change design and specifications without notice. 10300 Ormsby Park Place Suite 600 Louisville, Kentucky 40223-6169 www.aafintl.com Customer Service 800.477.1214 Fax 800.254.3019 ISO Certified 9001:2000 © 2008 AAF International The USGBC Member logo is a trademark owned by the APC-1-271B JUL ‘08 QG 2M U.S. Green Building Council and is used by permission.
