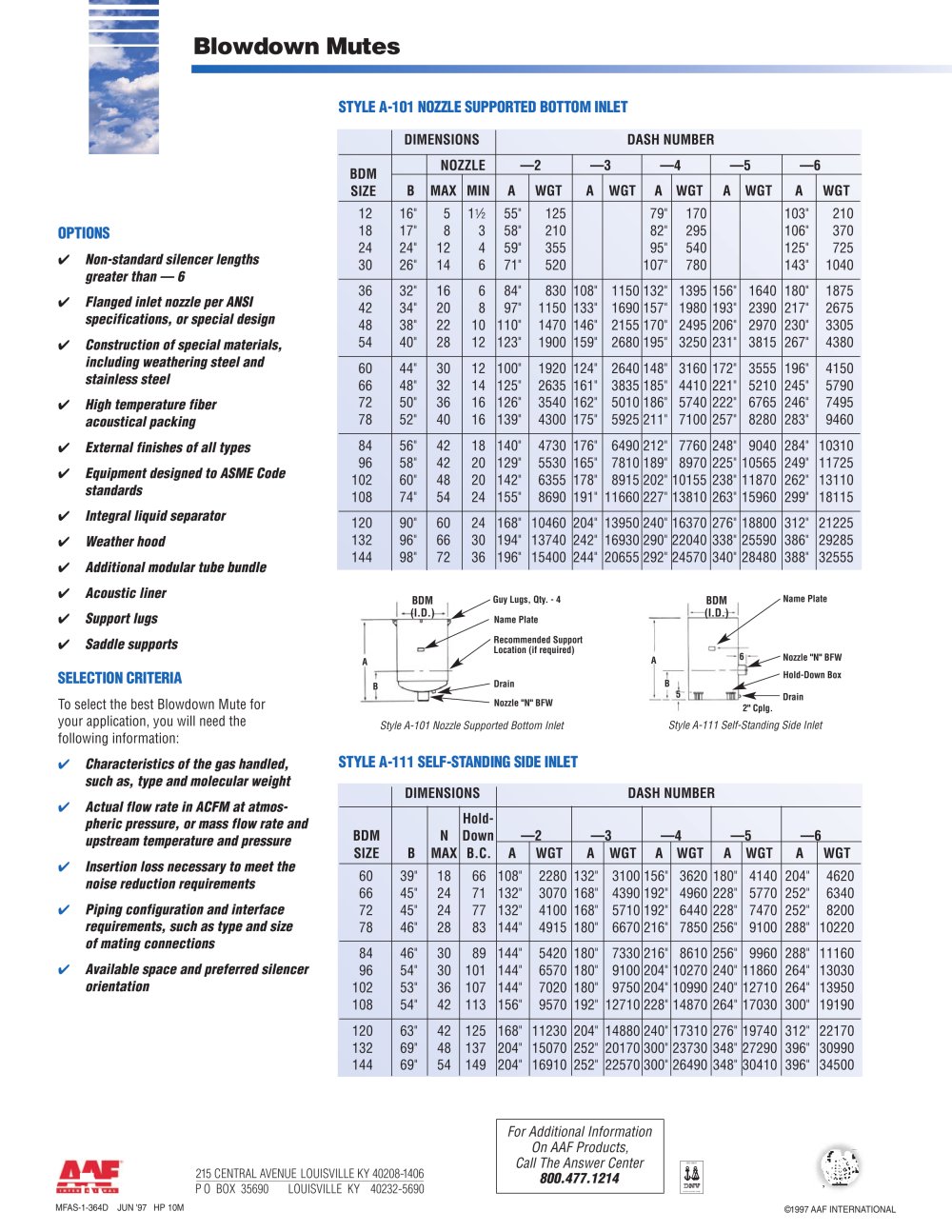

For Additional Information On AAF Products, Call The Answer Center 800.477.1214 ©1997 AAF INTERNATIONAL 215 CENTRAL AVENUE LOUISVILLE KY 40208-1406 P O BOX 35690 LOUISVILLE KY 40232-5690 ISO-9001 CERTIFICATED FIRM ISO-9001 CERTIFICATED FIRM Name Plate Blowdown Mutes MFAS-1-364D JUN '97 HP 10M DIMENSIONS DASH NUMBER NOZZLE —2 —3 —4 —5 —6 B MAX MIN A WGT A WGT A WGT A WGT A WGT 12 16" 5 112 55" 125 79" 170 103" 210 18 17" 8 3 58" 210 82" 295 106" 370 24 24" 12 4 59" 355 95" 540 125" 725 30 26" 14 6 71" 520 107" 780 143" 1040 36 32" 16 6 84" 830 108" 1150 132" 1395 156" 1640 180" 1875 42 34" 20 8 97" 1150 133" 1690 157" 1980 193" 2390 217" 2675 48 38" 22 10 110" 1470 146" 2155 170" 2495 206" 2970 230" 3305 54 40" 28 12 123" 1900 159" 2680 195" 3250 231" 3815 267" 4380 60 44" 30 12 100" 1920 124" 2640 148" 3160 172" 3555 196" 4150 66 48" 32 14 125" 2635 161" 3835 185" 4410 221" 5210 245" 5790 72 50" 36 16 126" 3540 162" 5010 186" 5740 222" 6765 246" 7495 78 52" 40 16 139" 4300 175" 5925 211" 7100 257" 8280 283" 9460 84 56" 42 18 140" 4730 176" 6490 212" 7760 248" 9040 284" 10310 96 58" 42 20 129" 5530 165" 7810 189" 8970 225" 10565 249" 11725 102 60" 48 20 142" 6355 178" 8915 202" 10155 238" 11870 262" 13110 108 74" 54 24 155" 8690 191" 11660 227" 13810 263" 15960 299" 18115 120 90" 60 24 168" 10460 204" 13950 240" 16370 276" 18800 312" 21225 132 96" 66 30 194" 13740 242" 16930 290" 22040 338" 25590 386" 29285 144 98" 72 36 196" 15400 244" 20655 292" 24570 340" 28480 388" 32555 DIMENSIONS DASH NUMBER Hold- BDM N Down —2 —3 —4 —5 —6 SIZE B MAX B.C. A WGT A WGT A WGT A WGT A WGT 60 39" 18 66 108" 2280 132" 3100 156" 3620 180" 4140 204" 4620 66 45" 24 71 132" 3070 168" 4390 192" 4960 228" 5770 252" 6340 72 45" 24 77 132" 4100 168" 5710 192" 6440 228" 7470 252" 8200 78 46" 28 83 144" 4915 180" 6670 216" 7850 256" 9100 288" 10220 84 46" 30 89 144" 5420 180" 7330 216" 8610 256" 9960 288" 11160 96 54" 30 101 144" 6570 180" 9100 204" 10270 240" 11860 264" 13030 102 53" 36 107 144" 7020 180" 9750 204" 10990 240" 12710 264" 13950 108 54" 42 113 156" 9570 192" 12710 228" 14870 264" 17030 300" 19190 120 63" 42 125 168" 11230 204" 14880 240" 17310 276" 19740 312" 22170 132 69" 48 137 204" 15070 252" 20170 300" 23730 348" 27290 396" 30990 144 69" 54 149 204" 16910 252" 22570 300" 26490 348" 30410 396" 34500 BDM SIZE STYLE A-101 NOZZLE SUPPORTED BOTTOM INLET STYLE A-111 SELF-STANDING SIDE INLET Style A-101 Nozzle Supported Bottom Inlet Style A-111 Self-Standing Side Inlet BDM (I.D.) Guy Lugs, Qty. - 4 Recommended Support Location (if required) Drain Nozzle "N" BFW A B BDM (I.D.) A B 5 Name Plate 6 Nozzle "N" BFW Hold-Down Box Drain 2" Cplg. OPTIONS 4 Non-standard silencer lengths greater than — 6 4 Flanged inlet nozzle per ANSI specifications, or special design 4 Construction of special materials, including weathering steel and stainless steel 4 High temperature fiber acoustical packing 4 External finishes of all types 4 Equipment designed to ASME Code standards 4 Integral liquid separator 4 Weather hood 4 Additional modular tube bundle 4 Acoustic liner 4 Support lugs 4 Saddle supports SELECTION CRITERIA To select the best Blowdown Mute for your application, you will need the following information: 4 Characteristics of the gas handled, such as, type and molecular weight 4 Actual flow rate in ACFM at atmospheric pressure, or mass flow rate and upstream temperature and pressure 4 Insertion loss necessary to meet the noise reduction requirements 4 Piping configuration and interface requirements, such as type and size of mating connections 4 Available space and preferred silencer orientation
