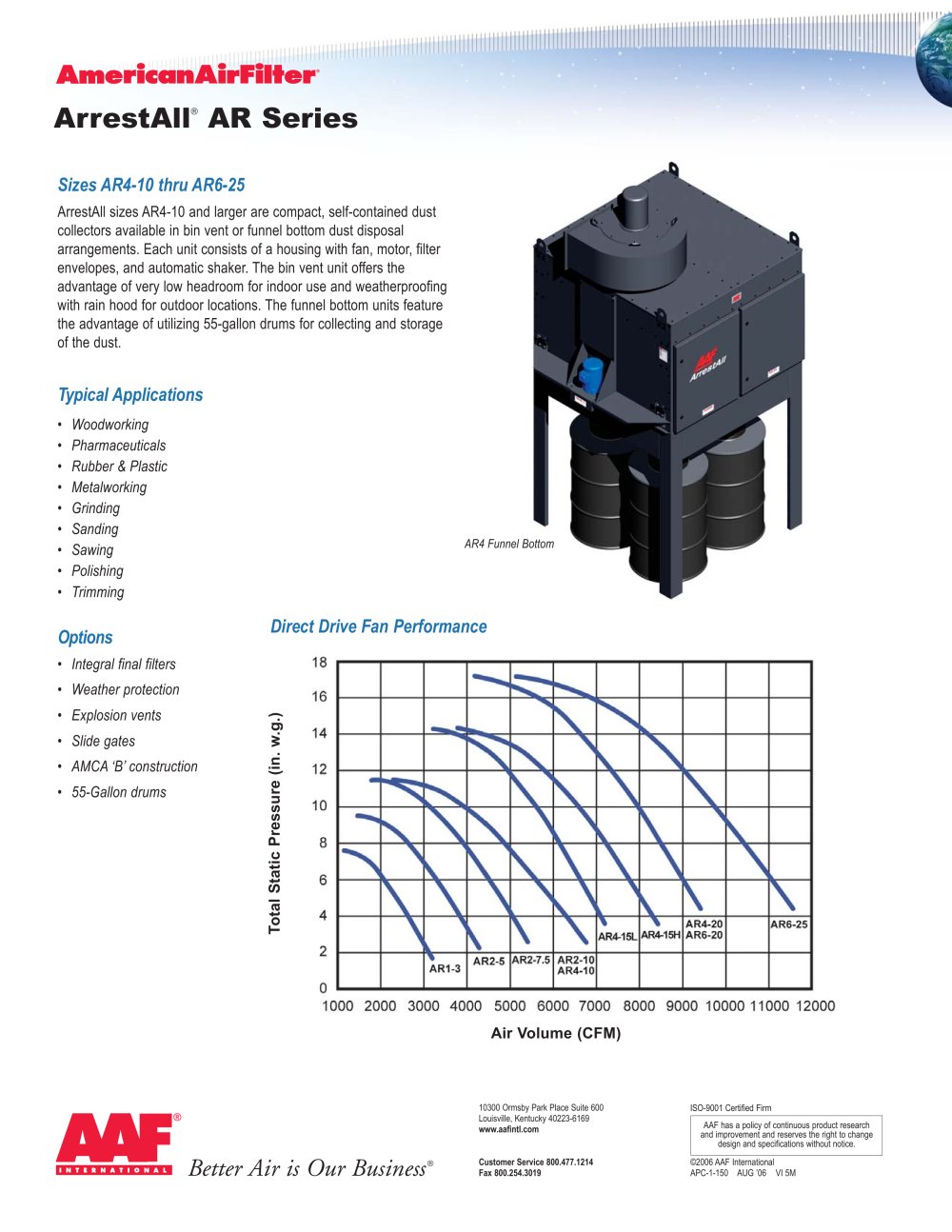

Better Air is Our Business ® AAF has a policy of continuous product research and improvement and reserves the right to change design and specifications without notice. 10300 Ormsby Park Place Suite 600 Louisville, Kentucky 40223-6169 www.aafintl.com Customer Service 800.477.1214 Fax 800.254.3019 ISO-9001 Certified Firm ©2006 AAF International APC-1-150 AUG ’06 VI 5M ArrestAll® AR Series Sizes AR4-10 thru AR6-25 ArrestAll sizes AR4-10 and larger are compact, self-contained dust collectors available in bin vent or funnel bottom dust disposal arrangements. Each unit consists of a housing with fan, motor, filter envelopes, and automatic shaker. The bin vent unit offers the advantage of very low headroom for indoor use and weatherproofing with rain hood for outdoor locations. The funnel bottom units feature the advantage of utilizing 55-gallon drums for collecting and storage of the dust. Typical Applications • Woodworking • Pharmaceuticals • Rubber & Plastic • Metalworking • Grinding • Sanding • Sawing • Polishing • Trimming Options • Integral final filters • Weather protection • Explosion vents • Slide gates • AMCA ‘B’ construction • 55-Gallon drums Direct Drive Fan Performance Air Volume (CFM) Total Static Pressure (in. w.g.) AR4 Funnel Bottom
