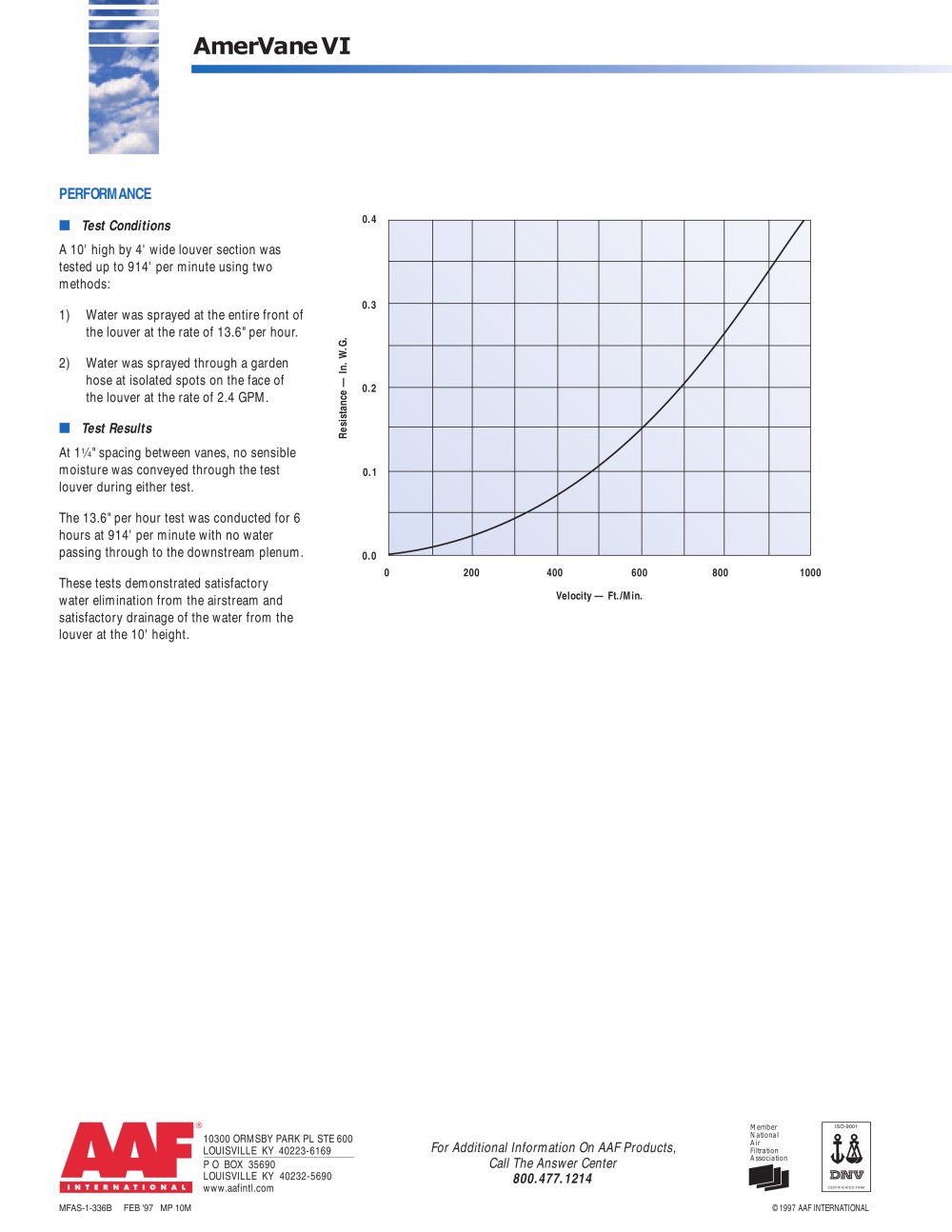

AmerVaneVI PERFORMANCE �¡ Test Conditions A 10' high by 4' wide louver section was tested up to 914' per minute using two methods: 1) Water was sprayed at the entire front of the louver at the rate of 13.6" per hour. 2) Water was sprayed through a garden hose at isolated spots on the face of the louver at the rate of 2.4 GPM. �¡ Test Results At 114" spacing between vanes, no sensible moisture was conveyed through the test louver during either test. The 13.6" per hour test was conducted for 6 hours at 914' per minute with no water passing through to the downstream plenum. These tests demonstrated satisfactory water elimination from the airstream and satisfactory drainage of the water from the louver at the 10' height. 0 200 400 600 800 1000 0.4 0.3 0.2 0.1 0.0 Velocity — Ft./Min. Resistance — In. W.G. P O BOX 35690 LOUISVILLE KY 40232-5690 www.aafintl.com 10300 ORMSBY PARK PL STE 600 LOUISVILLE KY 40223-6169 ® MFAS-1-336B FEB '97 MP 10M For Additional Information On AAF Products, Call The Answer Center 800.477.1214 ©1997 AAF INTERNATIONAL ISO-9001 CERTIFICATED FIRM Member National Air Filtration Association
