AmerSorb BP - AAF International - #2

Text version of the page

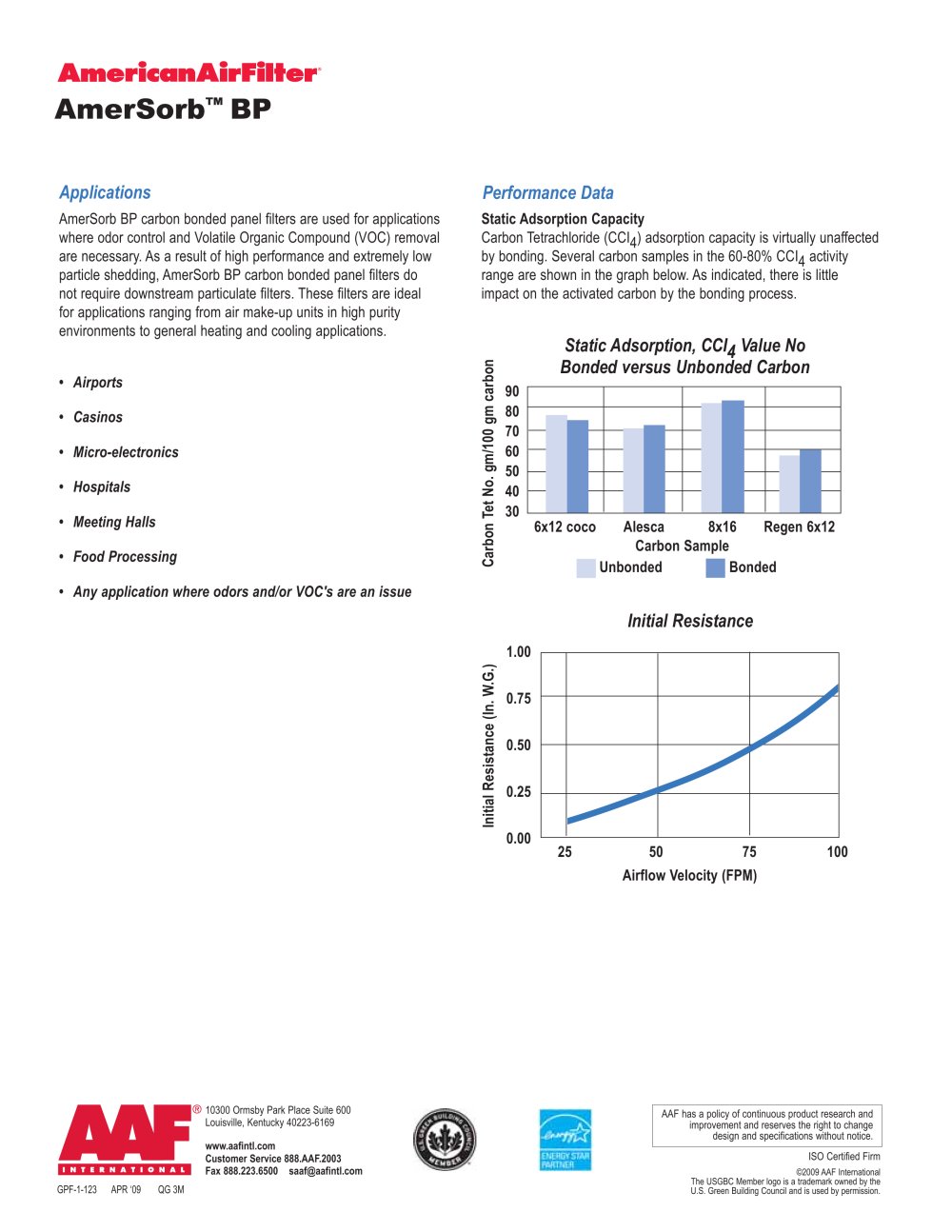

Unbonded Bonded Performance Data AmerSorb™ BP Initial Resistance 25 50 75 100 1.00 0.75 0.50 0.25 0.00 Initial Resistance (In. W.G.) Airflow Velocity (FPM) 6x12 coco Alesca 8x16 Regen 6x12 Carbon Sample Carbon Tet No. gm/100 gm carbon 90 80 70 60 50 40 30 Static Adsorption, CCI4 Value No Bonded versus Unbonded Carbon Static Adsorption Capacity Carbon Tetrachloride (CCI4) adsorption capacity is virtually unaffected by bonding. Several carbon samples in the 60-80% CCI4 activity range are shown in the graph below. As indicated, there is little impact on the activated carbon by the bonding process. Applications AmerSorb BP carbon bonded panel filters are used for applications where odor control and Volatile Organic Compound (VOC) removal are necessary. As a result of high performance and extremely low particle shedding, AmerSorb BP carbon bonded panel filters do not require downstream particulate filters. These filters are ideal for applications ranging from air make-up units in high purity environments to general heating and cooling applications. • Airports • Casinos • Micro-electronics • Hospitals • Meeting Halls • Food Processing • Any application where odors and/or VOC's are an issue AAF has a policy of continuous product research and improvement and reserves the right to change design and specifications without notice. 10300 Ormsby Park Place Suite 600 Louisville, Kentucky 40223-6169 www.aafintl.com Customer Service 888.AAF.2003 Fax 888.223.6500 saaf@aafintl.com ISO Certified Firm © 2009 AAF International The USGBC Member logo is a trademark owned by the GPF-1-123 APR ‘09 QG 3M U.S. Green Building Council and is used by permission.
