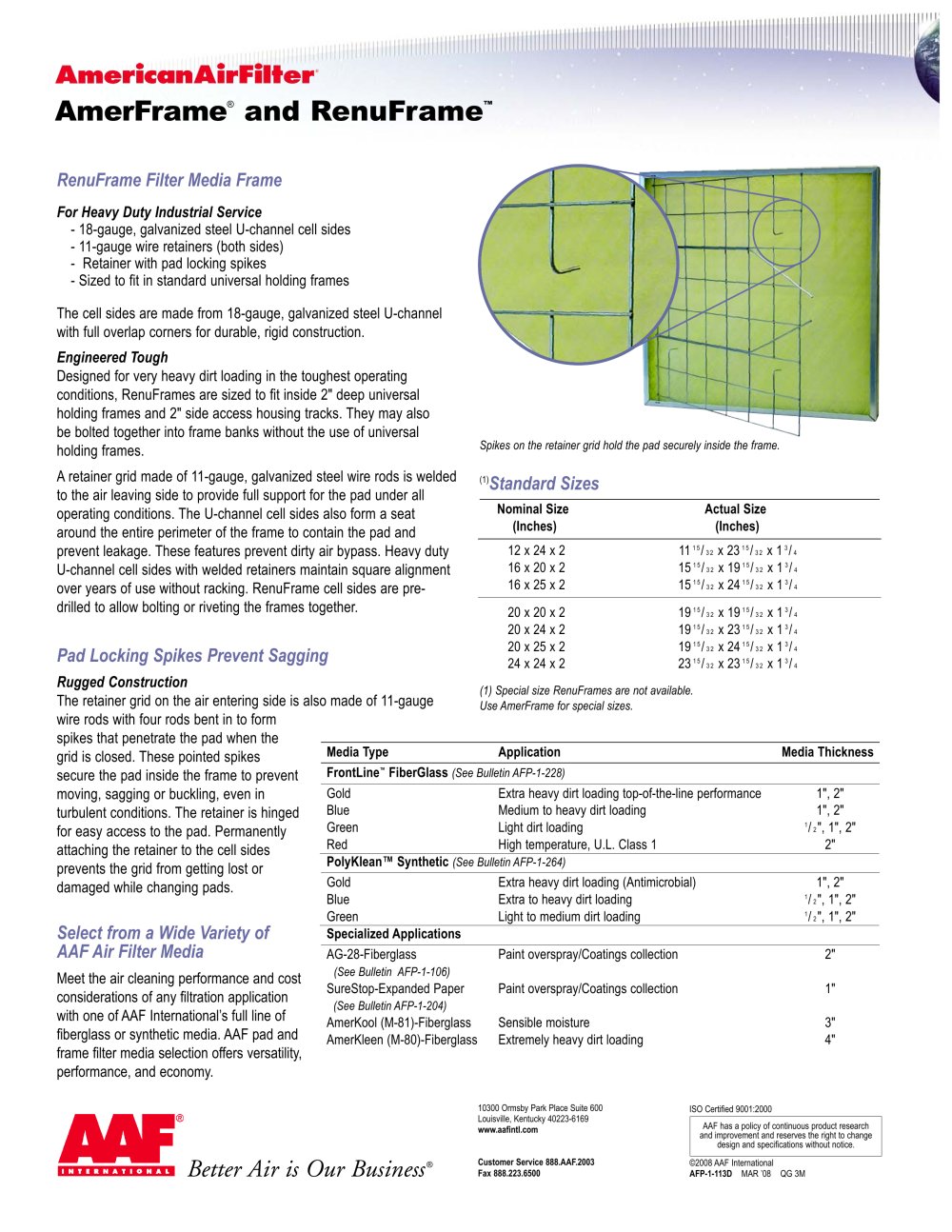

Better Air is Our Business ® AAF has a policy of continuous product research and improvement and reserves the right to change design and specifications without notice. 10300 Ormsby Park Place Suite 600 Louisville, Kentucky 40223-6169 www.aafintl.com Customer Service 888.AAF.2003 Fax 888.223.6500 ISO Certified 9001:2000 © 2008 AAF International AFP-1-113D MAR ’08 QG 3M AmerFrame® and RenuFrame™ RenuFrame Filter Media Frame For Heavy Duty Industrial Service - 18-gauge, galvanized steel U-channel cell sides - 11-gauge wire retainers (both sides) - Retainer with pad locking spikes - Sized to fit in standard universal holding frames The cell sides are made from 18-gauge, galvanized steel U-channel with full overlap corners for durable, rigid construction. Engineered Tough Designed for very heavy dirt loading in the toughest operating conditions, RenuFrames are sized to fit inside 2" deep universal holding frames and 2" side access housing tracks. They may also be bolted together into frame banks without the use of universal holding frames. A retainer grid made of 11-gauge, galvanized steel wire rods is welded to the air leaving side to provide full support for the pad under all operating conditions. The U-channel cell sides also form a seat around the entire perimeter of the frame to contain the pad and prevent leakage. These features prevent dirty air bypass. Heavy duty U-channel cell sides with welded retainers maintain square alignment over years of use without racking. RenuFrame cell sides are predrilled to allow bolting or riveting the frames together. Pad Locking Spikes Prevent Sagging Rugged Construction The retainer grid on the air entering side is also made of 11-gauge wire rods with four rods bent in to form spikes that penetrate the pad when the grid is closed. These pointed spikes secure the pad inside the frame to prevent moving, sagging or buckling, even in turbulent conditions. The retainer is hinged for easy access to the pad. Permanently attaching the retainer to the cell sides prevents the grid from getting lost or damaged while changing pads. Select from a Wide Variety of AAF Air Filter Media Meet the air cleaning performance and cost considerations of any filtration application with one of AAF International’s full line of fiberglass or synthetic media. AAF pad and frame filter media selection offers versatility, performance, and economy. (1)Standard Sizes Nominal Size Actual Size (Inches) (Inches) 12 x 24 x 2 16 x 20 x 2 16 x 25 x 2 20 x 20 x 2 20 x 24 x 2 20 x 25 x 2 24 x 24 x 2 11 1 5 / 3 2 x 23 1 5 / 3 2 x 1 3 / 4 15 1 5 / 3 2 x 19 1 5 / 3 2 x 1 3 / 4 15 1 5 / 3 2 x 24 1 5 / 3 2 x 1 3 / 4 19 1 5 / 3 2 x 19 1 5 / 3 2 x 1 3 / 4 19 1 5 / 3 2 x 23 1 5 / 3 2 x 1 3 / 4 19 1 5 / 3 2 x 24 1 5 / 3 2 x 1 3 / 4 23 1 5 / 3 2 x 23 1 5 / 3 2 x 1 3 / 4 Spikes on the retainer grid hold the pad securely inside the frame. (1) Special size RenuFrames are not available. Use AmerFrame for special sizes. Media Type Application Media Thickness FrontLine™ FiberGlass (See Bulletin AFP-1-228) Gold Extra heavy dirt loading top-of-the-line performance 1", 2" Blue Medium to heavy dirt loading 1", 2" Green Light dirt loading 1/ 2 ", 1", 2" Red High temperature, U.L. Class 1 2" PolyKlean™ Synthetic (See Bulletin AFP-1-264) Gold Extra heavy dirt loading (Antimicrobial) 1", 2" Blue Extra to heavy dirt loading 1/ 2 ", 1", 2" Green Light to medium dirt loading 1/ 2 ", 1", 2" Specialized Applications AG-28-Fiberglass Paint overspray/Coatings collection 2" (See Bulletin AFP-1-106) SureStop-Expanded Paper Paint overspray/Coatings collection 1" (See Bulletin AFP-1-204) AmerKool (M-81)-Fiberglass Sensible moisture 3" AmerKleen (M-80)-Fiberglass Extremely heavy dirt loading 4"
