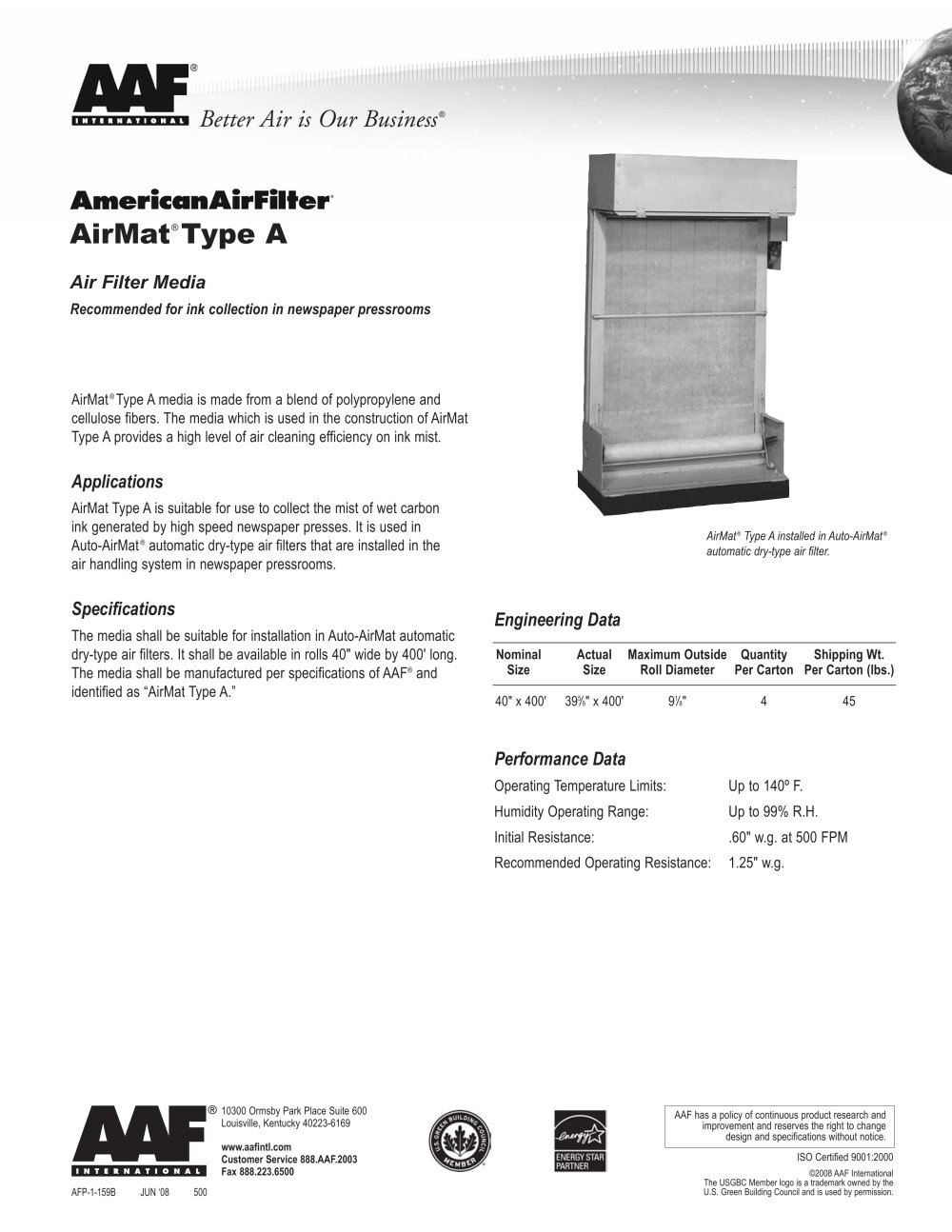

AirMat® Type A Air Filter Media Recommended for ink collection in newspaper pressrooms Better Air is Our Business ® AirMat®Type A media is made from a blend of polypropylene and cellulose fibers. The media which is used in the construction of AirMat Type A provides a high level of air cleaning efficiency on ink mist. Applications AirMat Type A is suitable for use to collect the mist of wet carbon ink generated by high speed newspaper presses. It is used in Auto-AirMat® automatic dry-type air filters that are installed in the air handling system in newspaper pressrooms. Specifications The media shall be suitable for installation in Auto-AirMat automatic dry-type air filters. It shall be available in rolls 40" wide by 400' long. The media shall be manufactured per specifications of AAF® and identified as “AirMat Type A.” Engineering Data Nominal Actual Maximum Outside Quantity Shipping Wt. Size Size Roll Diameter Per Carton Per Carton (lbs.) 40" x 400' 395/8" x 400' 91/8" 4 45 AirMat® Type A installed in Auto-AirMat® automatic dry-type air filter. Performance Data Operating Temperature Limits: Up to 140º F. Humidity Operating Range: Up to 99% R.H. Initial Resistance: .60" w.g. at 500 FPM Recommended Operating Resistance: 1.25" w.g. 10300 Ormsby Park Place Suite 600 Louisville, Kentucky 40223-6169 www.aafintl.com Customer Service 888.AAF.2003 Fax 888.223.6500 AAF has a policy of continuous product research and improvement and reserves the right to change design and specifications without notice. ISO Certified 9001:2000 © 2008 AAF International The USGBC Member logo is a trademark owned by the AFP-1-159B JUN ‘08 500 U.S. Green Building Council and is used by permission.
