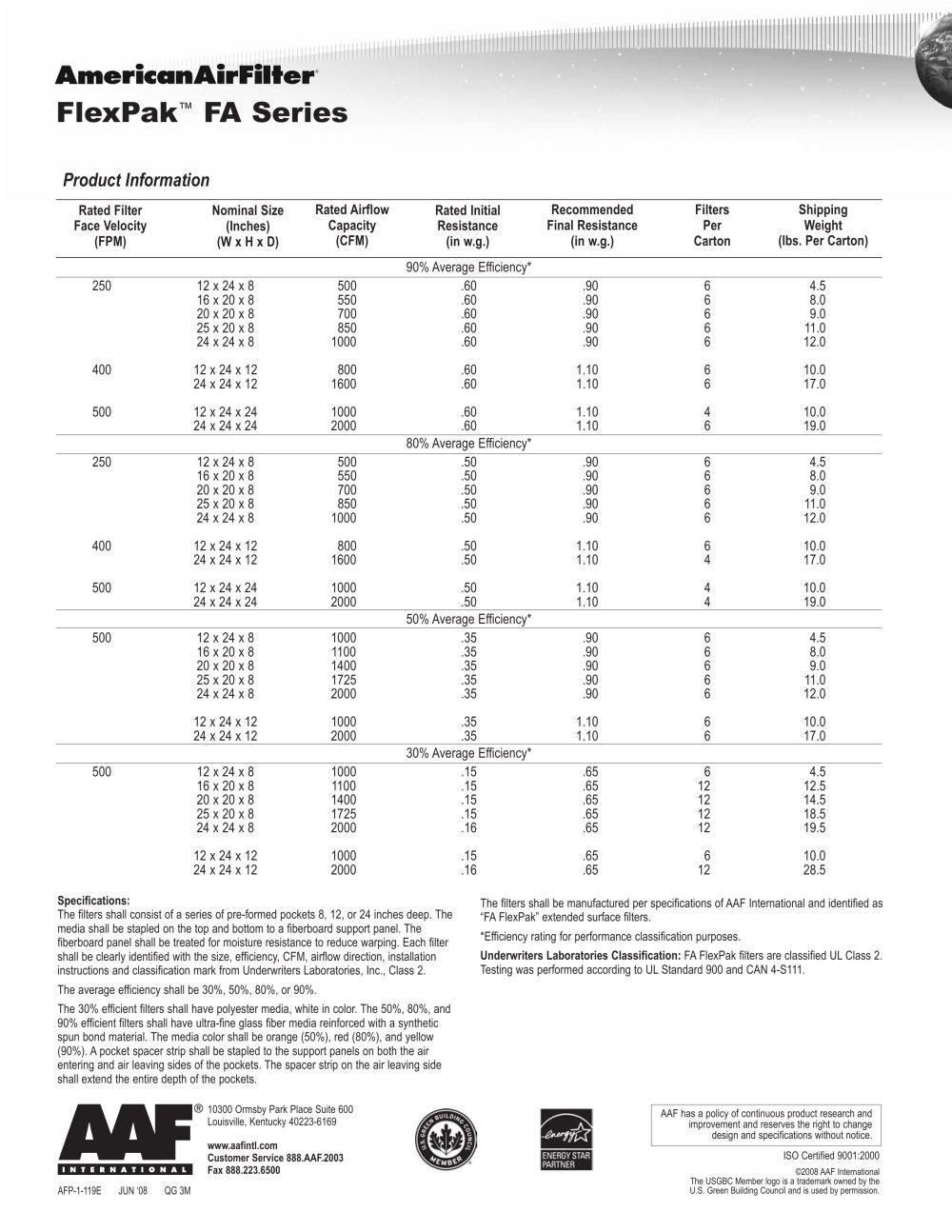

FlexPak™ FA Series Product Information Rated Filter Face Velocity (FPM) Nominal Size (Inches) (W x H x D) Rated Airflow Capacity (CFM) Rated Initial Resistance (in w.g.) Recommended Final Resistance (in w.g.) Filters Per Carton Shipping Weight (lbs. Per Carton) 90% Average Efficiency* 250 12 x 24 x 8 500 .60 .90 6 4.5 16 x 20 x 8 550 .60 .90 6 8.0 20 x 20 x 8 700 .60 .90 6 9.0 25 x 20 x 8 850 .60 .90 6 11.0 24 x 24 x 8 1000 .60 .90 6 12.0 400 12 x 24 x 12 800 .60 1.10 6 10.0 24 x 24 x 12 1600 .60 1.10 6 17.0 500 12 x 24 x 24 1000 .60 1.10 4 10.0 24 x 24 x 24 2000 .60 1.10 6 19.0 80% Average Efficiency* 250 12 x 24 x 8 500 .50 .90 6 4.5 16 x 20 x 8 550 .50 .90 6 8.0 20 x 20 x 8 700 .50 .90 6 9.0 25 x 20 x 8 850 .50 .90 6 11.0 24 x 24 x 8 1000 .50 .90 6 12.0 400 12 x 24 x 12 800 .50 1.10 6 10.0 24 x 24 x 12 1600 .50 1.10 4 17.0 500 12 x 24 x 24 1000 .50 1.10 4 10.0 24 x 24 x 24 2000 .50 1.10 4 19.0 50% Average Efficiency* 500 12 x 24 x 8 1000 .35 .90 6 4.5 16 x 20 x 8 1100 .35 .90 6 8.0 20 x 20 x 8 1400 .35 .90 6 9.0 25 x 20 x 8 1725 .35 .90 6 11.0 24 x 24 x 8 2000 .35 .90 6 12.0 12 x 24 x 12 1000 .35 1.10 6 10.0 24 x 24 x 12 2000 .35 1.10 6 17.0 30% Average Efficiency* 500 12 x 24 x 8 1000 .15 .65 6 4.5 16 x 20 x 8 1100 .15 .65 12 12.5 20 x 20 x 8 1400 .15 .65 12 14.5 25 x 20 x 8 1725 .15 .65 12 18.5 24 x 24 x 8 2000 .16 .65 12 19.5 12 x 24 x 12 1000 .15 .65 6 10.0 24 x 24 x 12 2000 .16 .65 12 28.5 Specifications: The filters shall consist of a series of pre-formed pockets 8, 12, or 24 inches deep. The media shall be stapled on the top and bottom to a fiberboard support panel. The fiberboard panel shall be treated for moisture resistance to reduce warping. Each filter shall be clearly identified with the size, efficiency, CFM, airflow direction, installation instructions and classification mark from Underwriters Laboratories, Inc., Class 2. The average efficiency shall be 30%, 50%, 80%, or 90%. The 30% efficient filters shall have polyester media, white in color. The 50%, 80%, and 90% efficient filters shall have ultra-fine glass fiber media reinforced with a synthetic spun bond material. The media color shall be orange (50%), red (80%), and yellow (90%). A pocket spacer strip shall be stapled to the support panels on both the air entering and air leaving sides of the pockets. The spacer strip on the air leaving side shall extend the entire depth of the pockets. The filters shall be manufactured per specifications of AAF International and identified as “FA FlexPak” extended surface filters. *Efficiency rating for performance classification purposes. Underwriters Laboratories Classification: FA FlexPak filters are classified UL Class 2. Testing was performed according to UL Standard 900 and CAN 4-S111. 10300 Ormsby Park Place Suite 600 Louisville, Kentucky 40223-6169 www.aafintl.com Customer Service 888.AAF.2003 Fax 888.223.6500 AAF has a policy of continuous product research and improvement and reserves the right to change design and specifications without notice. ISO Certified 9001:2000 © 2008 AAF International The USGBC Member logo is a trademark owned by the AFP-1-119E JUN ‘08 QG 3M U.S. Green Building Council and is used by permission.
