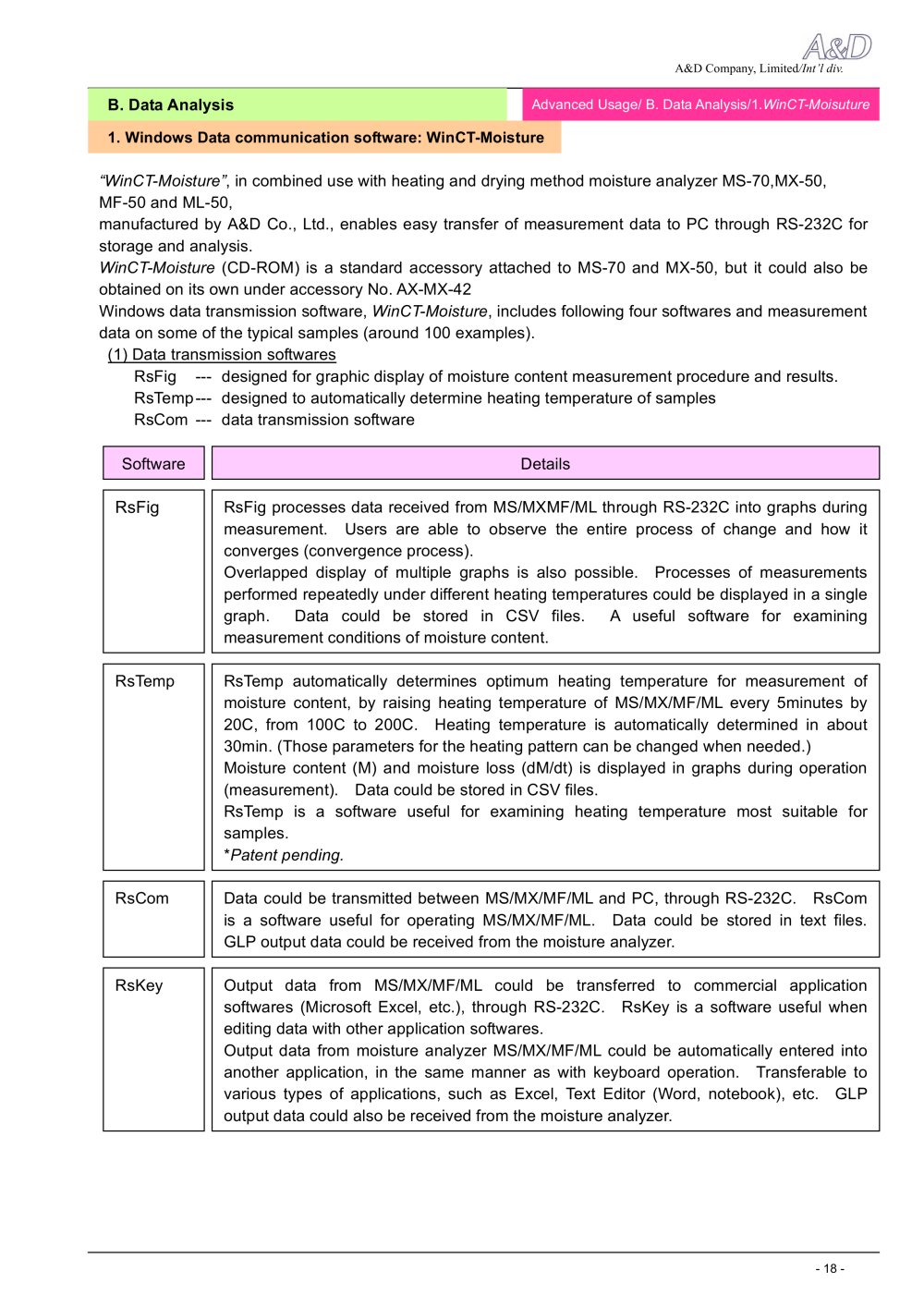

| A&D Company, Limited//«?'/ div. | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||||
| "WinCT-Moisture", in combined use with heating and drying method moisture analyzer MS-70,MX-50, MF-50 and ML-50, manufactured by A&D Co., Ltd., enables easy transfer of measurement data to PC through RS-232C for storage and analysis. WinCT-Moisture (CD-ROM) is a standard accessory attached to MS-70 and MX-50, but it could also be obtained on its own under accessory No. AX-MX-42 Windows data transmission software, WinCT-Moisture, includes following four softwares and measurement data on some of the typical samples (around 100 examples). (1) Data transmission softwares RsFig --- designed for graphic display of moisture content measurement procedure and results. RsTemp --- designed to automatically determine heating temperature of samples RsCom --- data transmission software | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Software | Details | |||||||||||||||||||||||||||||||||||||||||||||||||||
| RsFig | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| RsFig processes data received from MS/MXMF/ML through RS-232C into graphs during measurement. Users are able to observe the entire process of change and how it converges (convergence process). Overlapped display of multiple graphs is also possible. Processes of measurements performed repeatedly under different heating temperatures could be displayed in a single graph. Data could be stored in CSV files. A useful software for examining measurement conditions of moisture content. | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| RsTemp | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| RsTemp automatically determines optimum heating temperature for measurement of moisture content, by raising heating temperature of MS/MX/MF/ML every 5minutes by 20C, from 100C to 200C. Heating temperature is automatically determined in about 30min. (Those parameters for the heating pattern can be changed when needed.) Moisture content (M) and moisture loss (dM/dt) is displayed in graphs during operation (measurement). Data could be stored in CSV files. RsTemp is a software useful for examining heating temperature most suitable for samples. *Patent pending. | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| RsCom | Data could be transmitted between MS/MX/MF/ML and PC, through RS-232C. RsCom is a software useful for operating MS/MX/MF/ML. Data could be stored in text files. GLP output data could be received from the moisture analyzer. | |||||||||||||||||||||||||||||||||||||||||||||||||||
| RsKey | Output data from MS/MX/MF/ML could be transferred to commercial application softwares (Microsoft Excel, etc.), through RS-232C. RsKey is a software useful when editing data with other application softwares. Output data from moisture analyzer MS/MX/MF/ML could be automatically entered into another application, in the same manner as with keyboard operation. Transferable to various types of applications, such as Excel, Text Editor (Word, notebook), etc. GLP output data could also be received from the moisture analyzer. | |||||||||||||||||||||||||||||||||||||||||||||||||||
| 18 - | ||||||||||||||||||||||||||||||||||||||||||||||||||||
