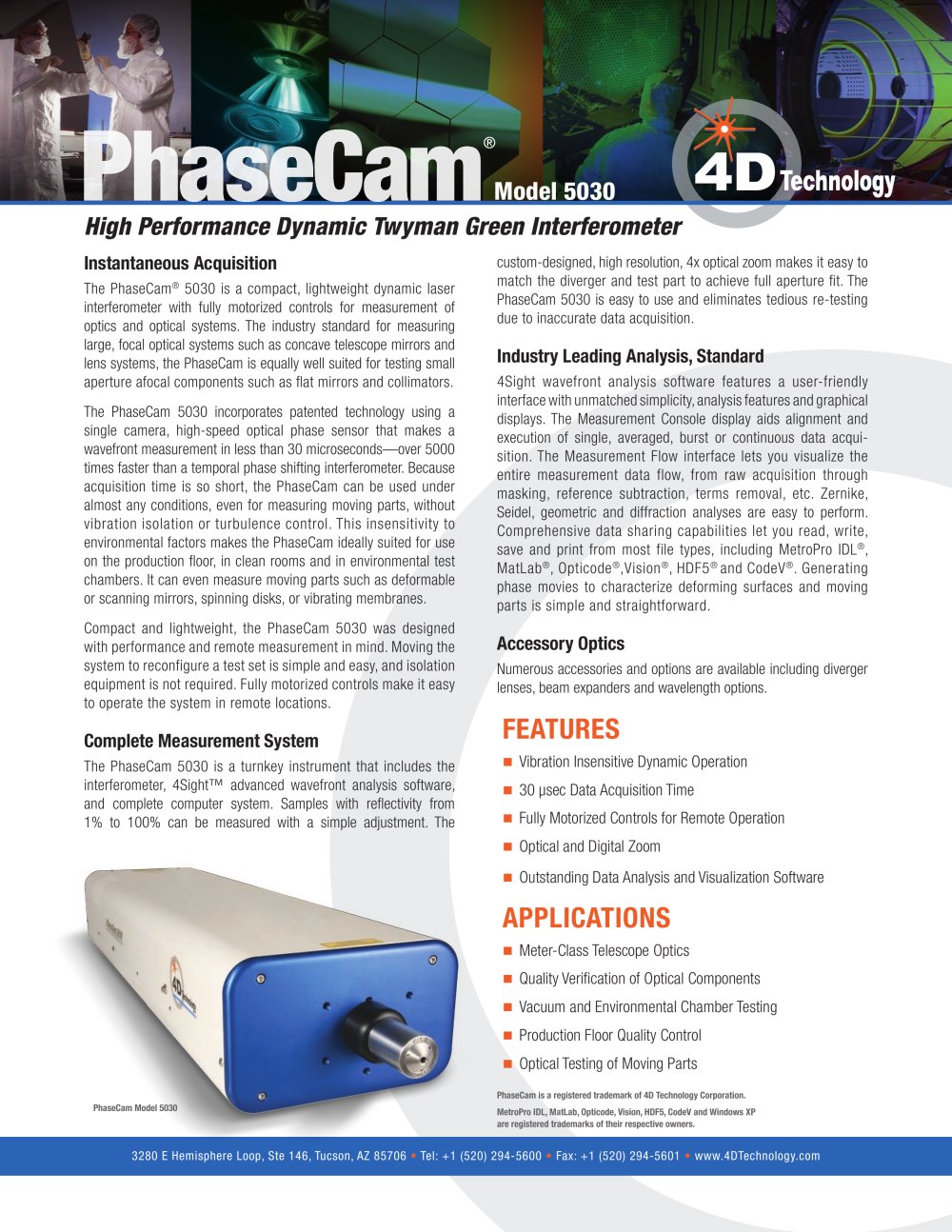

Model 5030 High Performance Dynamic Twyman Green Interferometer

Instantaneous Acquisition

The PhaseCam
® 5030 is a compact, lightweight dynamic laser interferometer with fully motorized controls for measurement of optics and optical systems. The industry standard for measuring large, focal optical systems such as concave telescope mirrors and lens systems, the PhaseCam is equally well suited for testing small aperture afocal components such as flat mirrors and collimators.The PhaseCam 5030 incorporates patented technology using a single camera, high-speed optical phase sensor that makes a wavefront measurement in less than 30 microseconds—over 5000 times faster than a temporal phase shifting interferometer. Because acquisition time is so short, the PhaseCam can be used under almost any conditions, even for measuring moving parts, without vibration isolation or turbulence control. This insensitivity to environmental factors makes the PhaseCam ideally suited for use on the production floor, in clean rooms and in environmental test chambers. It can even measure moving parts such as deformable or scanning mirrors, spinning disks, or vibrating membranes.Compact and lightweight, the PhaseCam 5030 was designed with performance and remote measurement in mind. Moving the system to reconfigure a test set is simple and easy, and isolation equipment is not required. Fully motorized controls make it easy to operate the system in remote locations.

Industry Leading Analysis, Standard

4Sight wavefront analysis software features a user-friendly interface with unmatched simplicity, analysis features and graphical displays. The Measurement Console display aids alignment and execution of single, averaged, burst or continuous data acqui- sition. The Measurement Flow interface lets you visualize the entire measurement data flow, from raw acquisition through masking, reference subtraction, terms removal, etc. Zernike, Seidel, geometric and diffraction analyses are easy to perform. Comprehensive data sharing capabilities let you read, write, save and print from most file types, including MetroPro IDL
® , MatLab
® , Opticode
® ,Vision
® , HDF5
® and CodeV
® . Generating phase movies to characterize deforming surfaces and moving parts is simple and straightforward.

Accessory Optics

Numerous accessories and options are available including diverger lenses, beam expanders and wavelength options.

Complete Measurement System

PhaseCam 5030 - 27716 FEATURES

The PhaseCam 5030 is a turnkey instrument that includes the interferometer, 4Sight™ advanced wavefront analysis software, and complete computer system. Samples with reflectivity from 1% to 100% can be measured with a simple adjustment. The custom-designed, high resolution, 4x optical zoom makes it easy to match the diverger and test part to achieve full aperture fit. The PhaseCam 5030 is easy to use and eliminates tedious re-testing due to inaccurate data acquisition.
n

Vibration Insensitive Dynamic Operation

n

30 µsec Data Acquisition Time

n

Fully Motorized Controls for Remote Operation

n

Optical and Digital Zoom

n

Outstanding Data Analysis and Visualization Software

APPLICATIONS

n

Meter-Class Telescope Optics

n

Quality Verification of Optical Components

n

Vacuum and Environmental Chamber Testing

n

Production Floor Quality Control

n

Optical Testing of Moving Parts
