| chnology | ||||||||||||||||||||||||||||||||

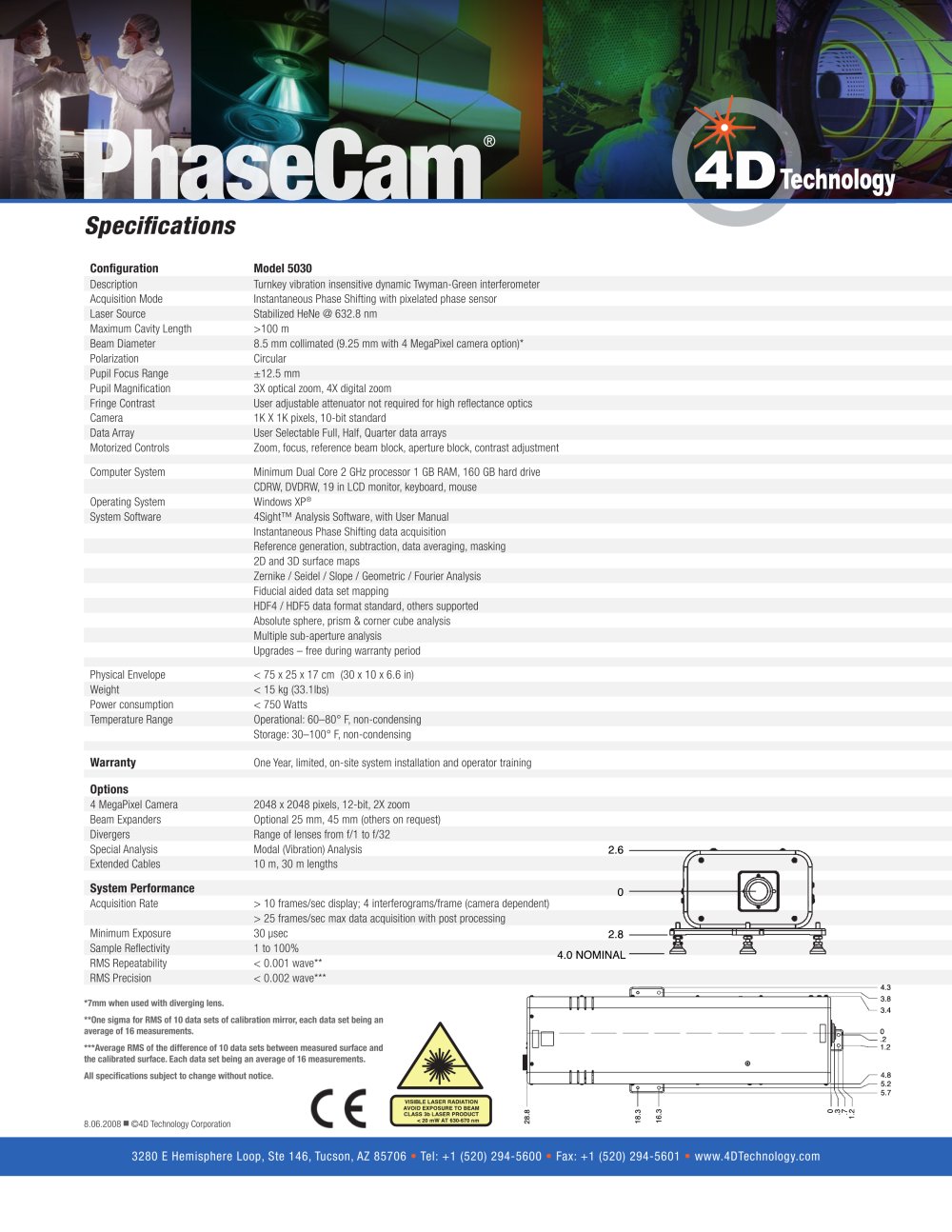

| Specifications | ||||||||||||||||||||||||||||||||
| Configuration Description Acquisition Mode Laser Source Maximum Cavity Length Beam Diameter Polarization Pupil Focus Range Pupil Magnification Fringe Contrast Camera Data Array Motorized Controls Computer System Operating System System Software | Model 5030 Turnkey vibration insensitive dynamic Twyman-Green interferometer Instantaneous Phase Shifting with pixelated phase sensor Stabilized HeNe @ 632.8 nm >100 m 8.5 mm collimated (9.25 mm with 4 Megapixel camera option)* Circular ±12.5 mm 3X optical zoom, 4X digital zoom User adjustable attenuator not required for high reflectance optics 1K X 1K pixels, 10-bit standard User Selectable Full, Half, Quarter data arrays Zoom, focus, reference beam block, aperture block, contrast adjustment Minimum Dual Core 2 GHz processor 1 GB RAM, 160 GB hard drive CDRW, DVDRW, 19 in LCD monitor, keyboard, mouse Windows XP® 4Sight™ Analysis Software, with User Manual Instantaneous Phase Shifting data acquisition Reference generation, subtraction, data averaging, masking 2D and 3D surface maps Zernike / Seidel / Slope / Geometric / Fourier Analysis Fiducial aided data set mapping HDF4 / HDF5 data format standard, others supported Absolute sphere, prism & corner cube analysis Multiple sub-aperture analysis Upgrades - free during warranty period < 75 x 25 x 17 cm (30 x 10 x 6.6 in) < 15 kg (33.1lbs) < 750 Watts Operational: 60-80° F, non-condensing Storage: 30-100° F, non-condensing | |||||||||||||||||||||||||||||||
| Physical Envelope Weight Power consumption Temperature Range | ||||||||||||||||||||||||||||||||
| Warranty | ||||||||||||||||||||||||||||||||
| One Year, limited, on-site system installation and operator training | ||||||||||||||||||||||||||||||||
| Options | ||||||||||||||||||||||||||||||||
| 4 Megapixel Camera Beam Expanders Divergers Special Analysis Extended Cables | 2048 x 2048 pixels, 12-bit, 2X zoom Optional 25 mm, 45 mm (others on request) Range of lenses from f/1 to f/32 Modal (Vibration) Analysis 10 m, 30 m lengths | |||||||||||||||||||||||||||||||
| System Performance | ||||||||||||||||||||||||||||||||
| Acquisition Rate Minimum Exposure Sample Reflectivity RMS Repeatability RMS precision | > 10 frames/sec display; 4 interferograms/frame (camera dependent) > 25 frames/sec max data acquisition with post processing 30 usec 1 to 100% < 0.001 wave** < 0.002 wave*** | |||||||||||||||||||||||||||||||
| 2.8 4.0 NOMINAL | ||||||||||||||||||||||||||||||||
| *7mm when used with diverging lens. **One sigma for RMS of 10 data sets of calibration mirror, each data set being an average of 16 measurements. ***Average RMS of the difference of 10 data sets between measured surface and the calibrated surface. Each data set being an average of 16 measurements. All specifications subject to change without notice. | ||||||||||||||||||||||||||||||||
| DD | ||||||||||||||||||||||||||||||||
| VISIBLE LASER RADIATION AVOID EXPOSURE TO BEAM CLASS 3b LASER PRODUCT < 20 mW AT 630-670 nm | ||||||||||||||||||||||||||||||||
| 3.06.2008 ■ ©4D Technology Corporation | ||||||||||||||||||||||||||||||||
| 3280 E Hemisphere Loop, Ste 146, Tucson, AZ 85706 • Tel: +1 (520) 294-5600 • Fax: +1 (520) 294-5601 • www.4DTechnology.com | ||||||||||||||||||||||||||||||||
