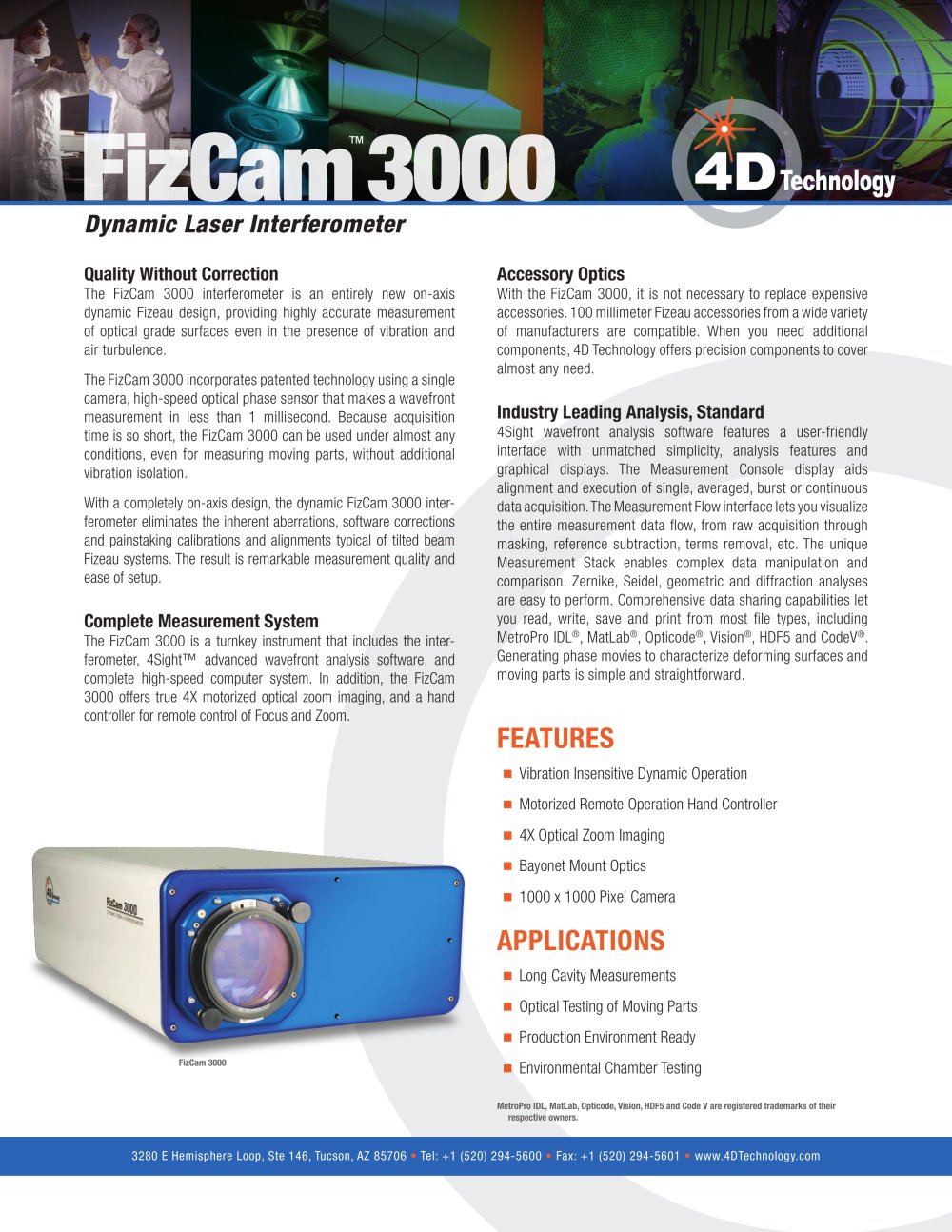

Dynamic Laser Interferometer

Quality Without Correction Accessory Optics

The FizCam 3000 interferometer is an entirely new on-axis dynamic Fizeau design, providing highly accurate measurement of optical grade surfaces even in the presence of vibration and air turbulence. The FizCam 3000 incorporates patented technology using a single camera, high-speed optical phase sensor that makes a wavefront measurement in less than 1 millisecond. Because acquisition time is so short, the FizCam 3000 can be used under almost any conditions, even for measuring moving parts, without additional vibration isolation. With a completely on-axis design, the dynamic FizCam 3000 inter-ferometer eliminates the inherent aberrations, software corrections and painstaking calibrations and alignments typical of tilted beam Fizeau systems. The result is remarkable measurement quality and ease of setup. With the FizCam 3000, it is not necessary to replace expensive accessories. 100 millimeter Fizeau accessories from a wide variety of manufacturers are compatible. When you need additional components, 4D Technology offers precision components to cover almost any need.

Industry Leading Analysis, Standard

4Sight wavefront analysis software features a user-friendly interface with unmatched simplicity, analysis features and graphical displays. The Measurement Console display aids alignment and execution of single, averaged, burst or continuous data acquisition. The Measurement Flow interface lets you visualize the entire measurement data flow, from raw acquisition through masking, reference subtraction, terms removal, etc. The unique Measurement Stack enables complex data manipulation and comparison. Zernike, Seidel, geometric and diffraction analyses are easy to perform. Comprehensive data sharing capabilities let you read, write, save and print from most file types, including MetroPro IDL

Complete Measurement System

The FizCam 3000 is a turnkey instrument that includes the inter- ferometer, 4Sight™ advanced wavefront analysis software, and complete high-speed computer system. In addition, the FizCam 3000 offers true 4X motorized optical zoom imaging, and a hand controller for remote control of Focus and Zoom.

®

, MatLab

®

, Opticode

®

, Vision

®

, HDF5 and CodeV

®

. Generating phase movies to characterize deforming surfaces and moving parts is simple and straightforward.

FizCam 3000 - 27716 FEATURESAPPLICATIONS

n

Vibration Insensitive Dynamic Operation

n

Motorized Remote Operation Hand Controller

n

4X Optical Zoom Imaging

n

Bayonet Mount Optics

n

1000 x 1000 Pixel Camera Long Cavity Measurements

n n

Optical Testing of Moving Parts

n

Production Environment Ready

FizCam 3000 n

Environmental Chamber Testing
