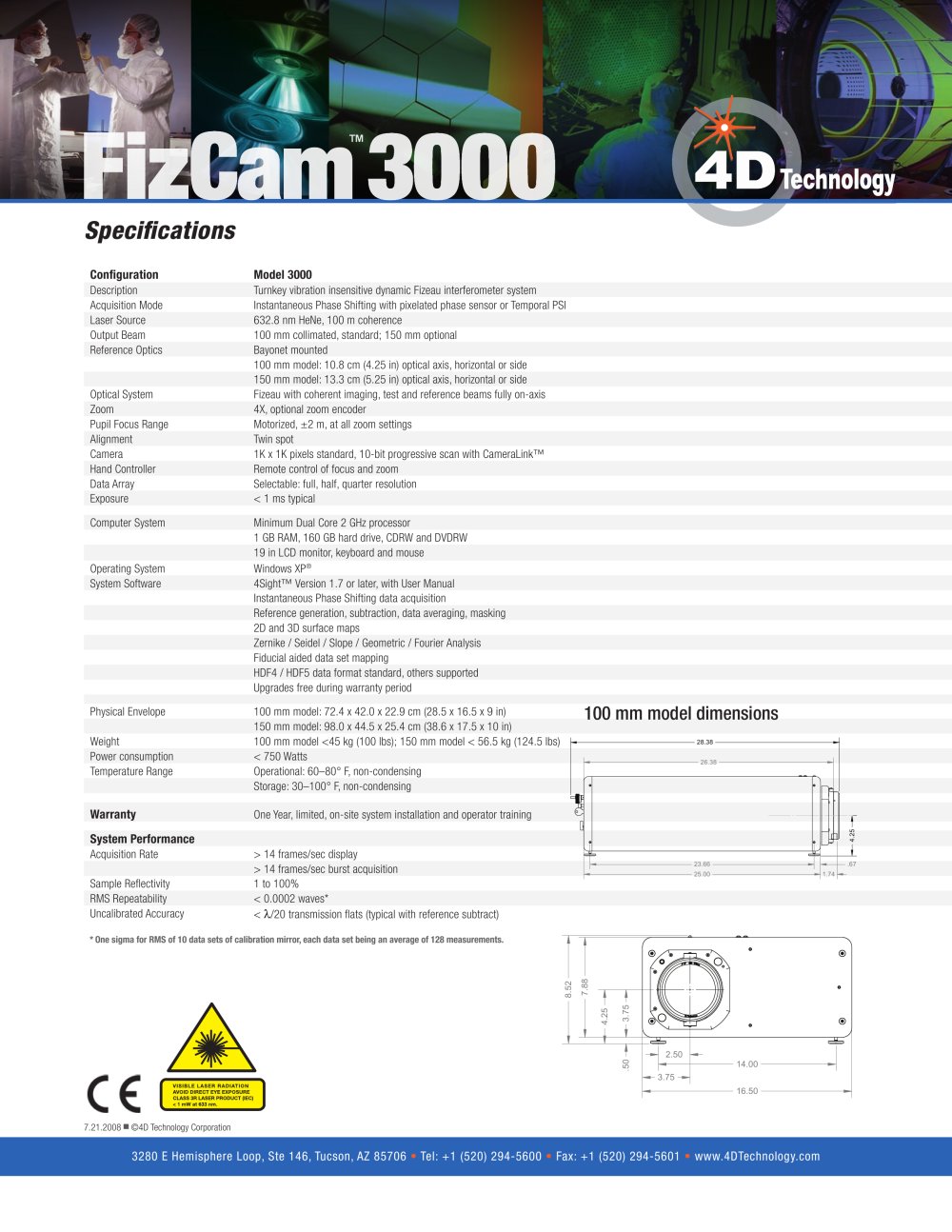

Specifications

ConfigurationModel 3000
Description Turnkey vibration insensitive dynamic Fizeau interferometer systemAcquisition Mode Instantaneous Phase Shifting with pixelated phase sensor or Temporal PSI Laser Source632.8 nm HeNe, 100 m coherence Output Beam100 mm collimated, standard; 150 mm optional Reference Optics Bayonet mounted100 mm model: 10.8 cm (4.25 in) optical axis, horizontal or side 150 mm model: 13.3 cm (5.25 in) optical axis, horizontal or sideOptical System Fizeau with coherent imaging, test and reference beams fully on-axis Zoom4X, optional zoom encoder Pupil Focus RangeMotorized, ±2 m, at all zoom settings AlignmentTwin spot Camera1K x 1K pixels standard, 10-bit progressive scan with CameraLink™ Hand ControllerRemote control of focus and zoom Data ArraySelectable: full, half, quarter resolution Exposure100 mm model dimensions 26.38 25.0023.661.74.67 28.38 Warranty
One Year, limited, on-site system installation and operator training System Performance
4.25 Acquisition Rate > 14 frames/sec display> 14 frames/sec burst acquisitionSample Reflectivity1 to 100% RMS Repeatability
