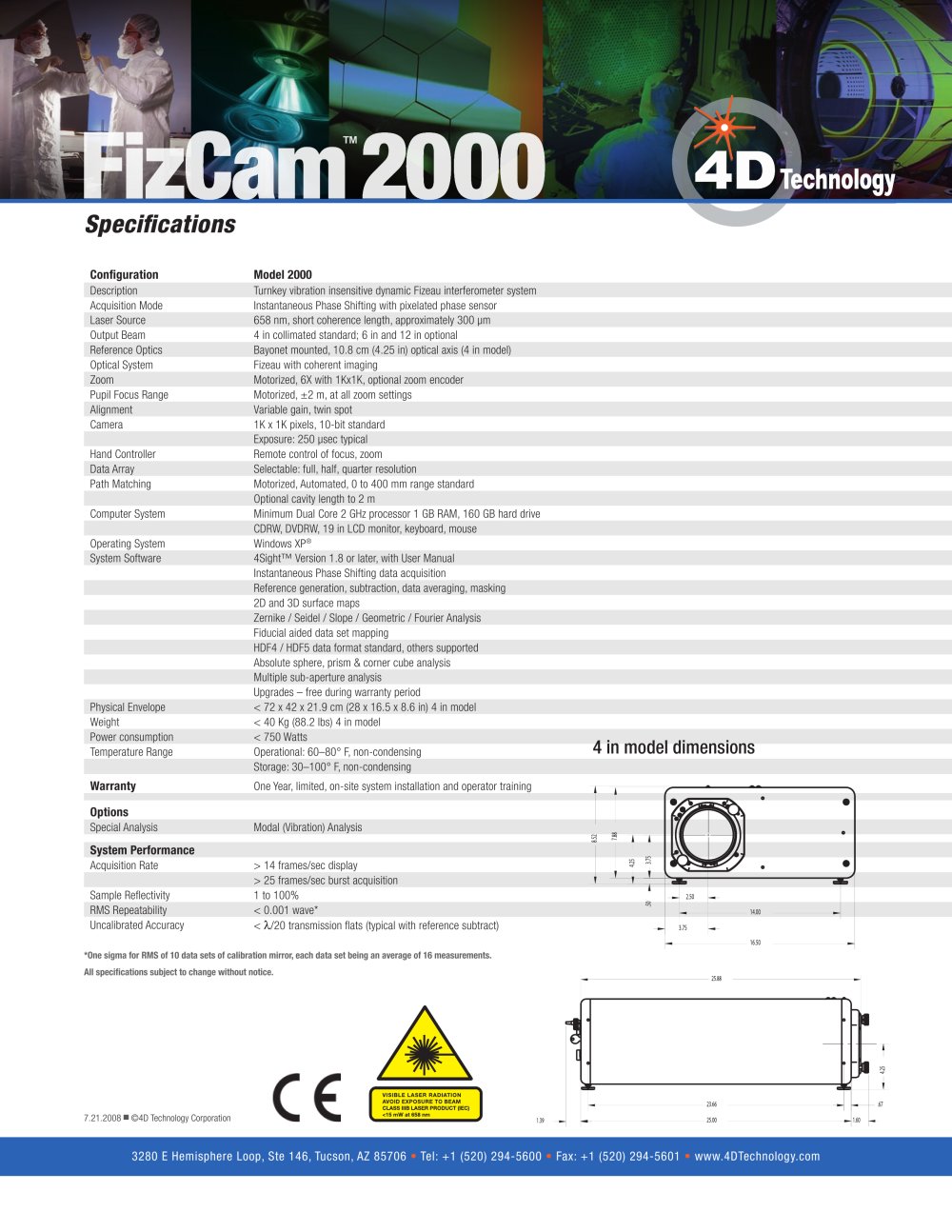

Specifications

ConfigurationModel 2000
Description Turnkey vibration insensitive dynamic Fizeau interferometer system Acquisition Mode Instantaneous Phase Shifting with pixelated phase sensor Laser Source658 nm, short coherence length, approximately 300 µm Output Beam4 in collimated standard; 6 in and 12 in optional Reference OpticsBayonet mounted, 10.8 cm (4.25 in) optical axis (4 in model) Optical SystemFizeau with coherent imaging ZoomMotorized, 6X with 1Kx1K, optional zoom encoder Pupil Focus Range Motorized, ±2 m, at all zoom settings Alignment Variable gain, twin spot Camera 1K x 1K pixels, 10-bit standardExposure: 250 µsec typicalHand ControllerRemote control of focus, zoom Data Array Selectable: full, half, quarter resolution Path MatchingMotorized, Automated, 0 to 400 mm range standardOptional cavity length to 2 m Computer System Minimum Dual Core 2 GHz processor 1 GB RAM, 160 GB hard drive CDRW, DVDRW, 19 in LCD monitor, keyboard, mouse Operating System Windows XP ® System Software4Sight™ Version 1.8 or later, with User ManualInstantaneous Phase Shifting data acquisition Reference generation, subtraction, data averaging, masking 2D and 3D surface maps Zernike / Seidel / Slope / Geometric / Fourier Analysis Fiducial aided data set mapping HDF4 / HDF5 data format standard, others supported Absolute sphere, prism & corner cube analysis Multiple sub-aperture analysis Upgrades – free during warranty periodPhysical Envelope 4 in model dimensions Warranty
One Year, limited, on-site system installation and operator training Options
Special AnalysisModal (Vibration) Analysis System Performance
Acquisition Rate > 14 frames/sec display> 25 frames/sec burst acquisitionSample Reflectivity 1 to 100% RMS Repeatability
